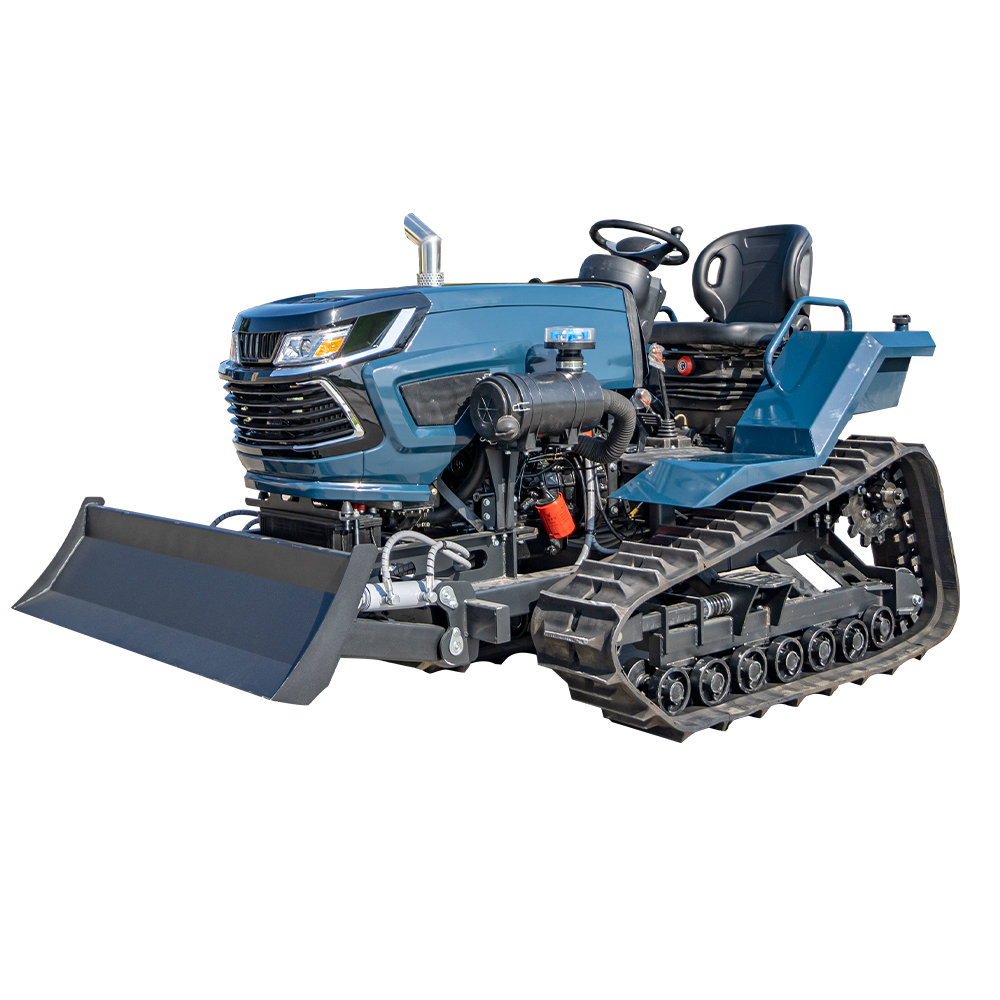

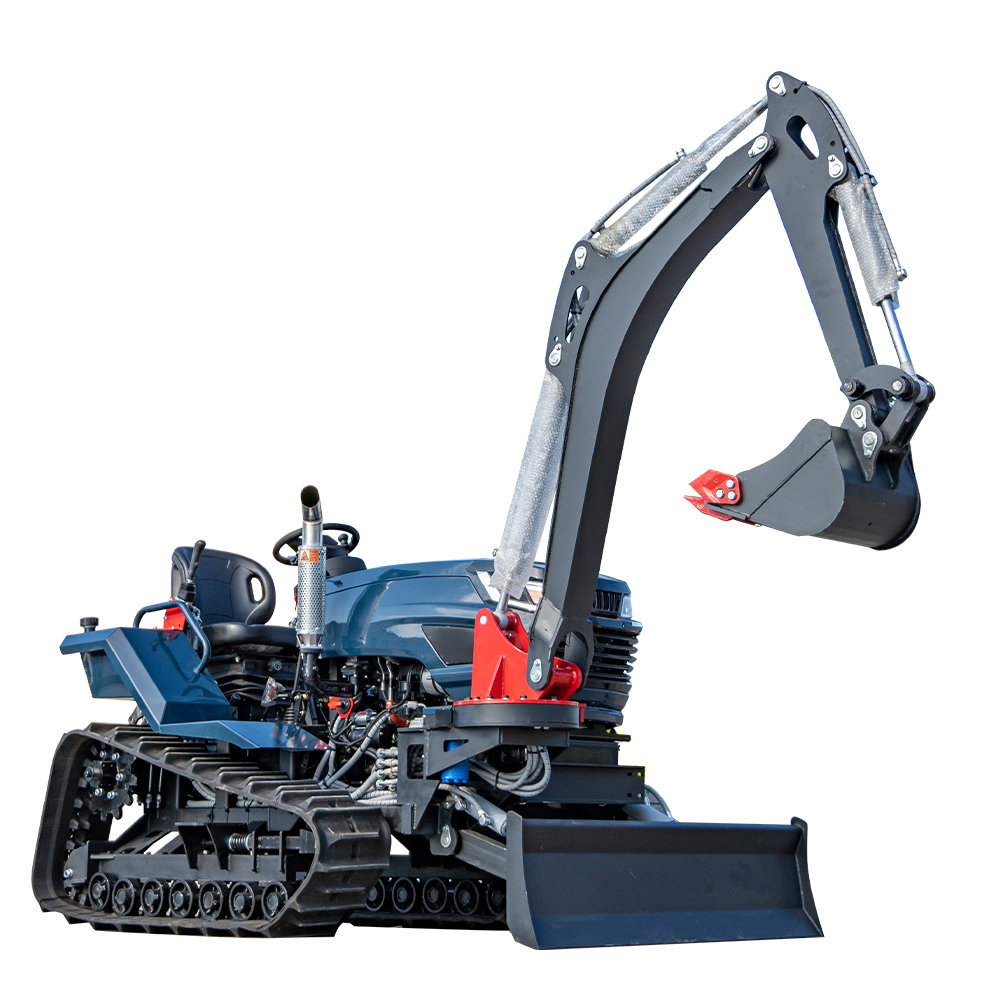

HTCT50/60/80 Crawler Tractor is a multifunctional compact crawler tractor designed for agricultural, construction, and outdoor working applications. Combining crawler tractor functions, excavation capability, and agricultural implement compatibility, it provides a flexible solution for various operating conditions.

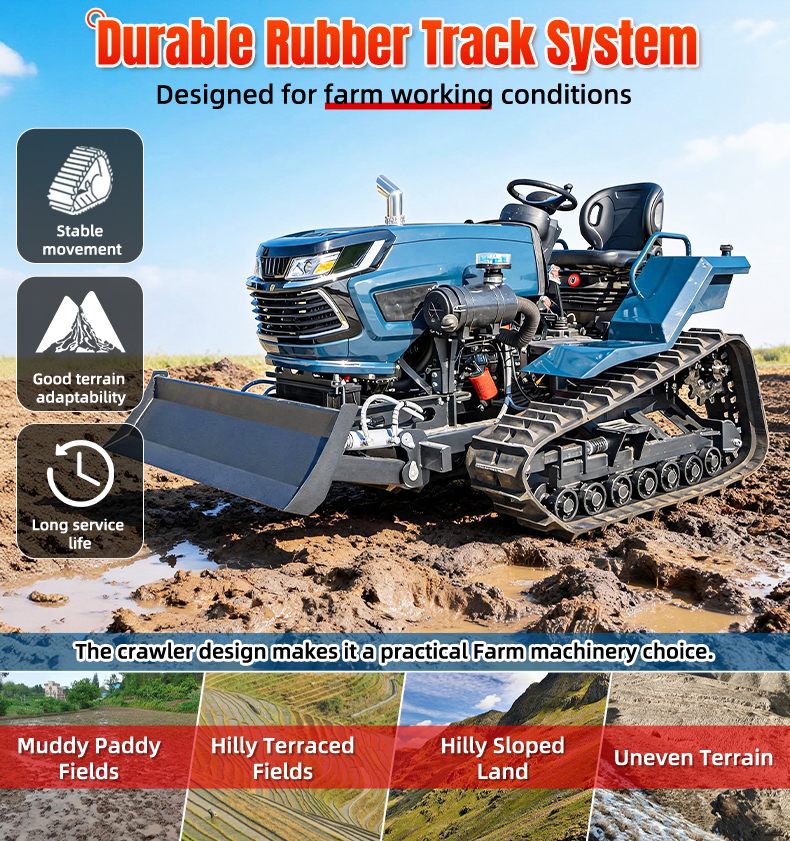

Powered by reliable diesel engines and equipped with a heavy-duty crawler chassis, this tracked tractor delivers strong traction, excellent stability, and superior ground adaptability on uneven, muddy, and challenging terrains. The compact structure makes it suitable for both small-scale operations and professional applications.

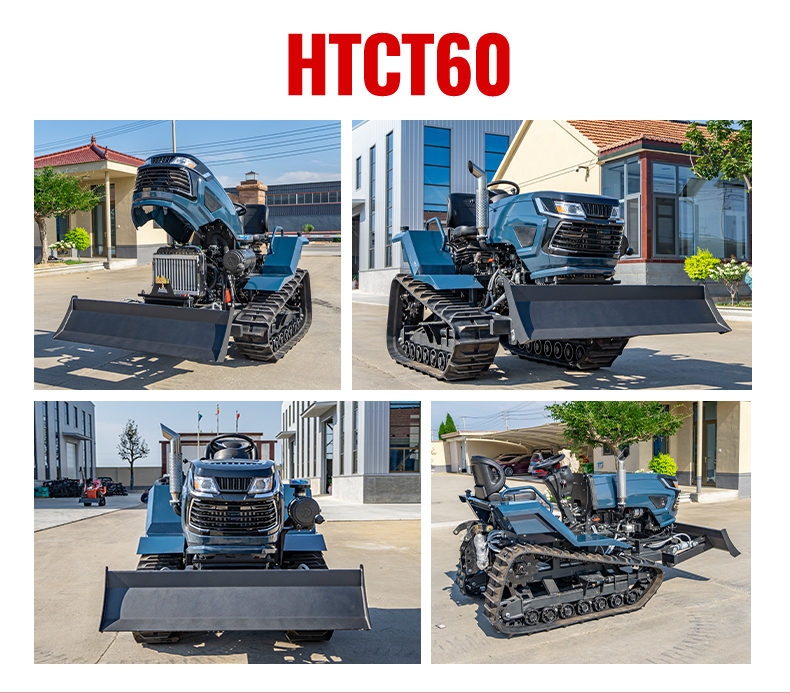

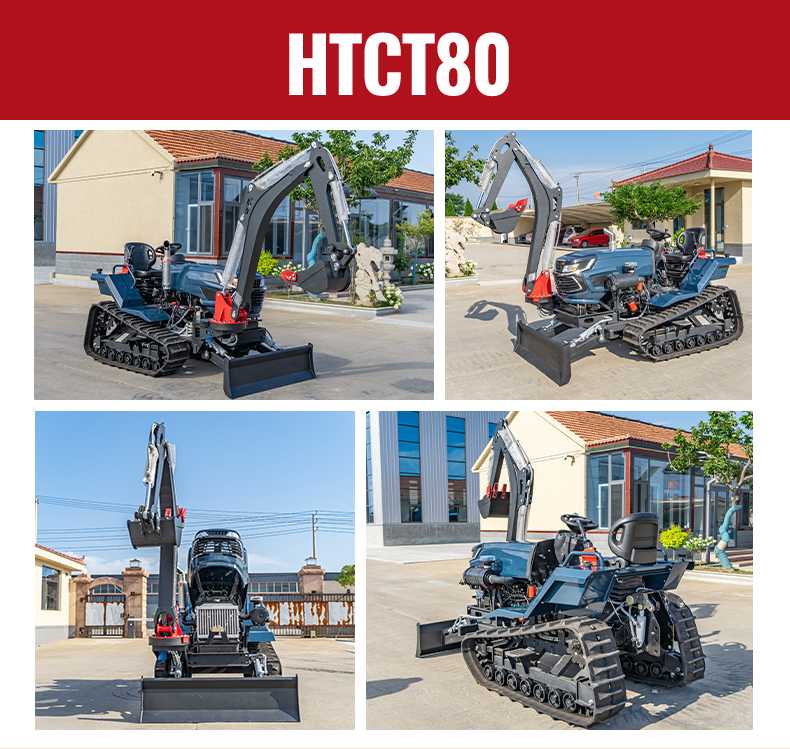

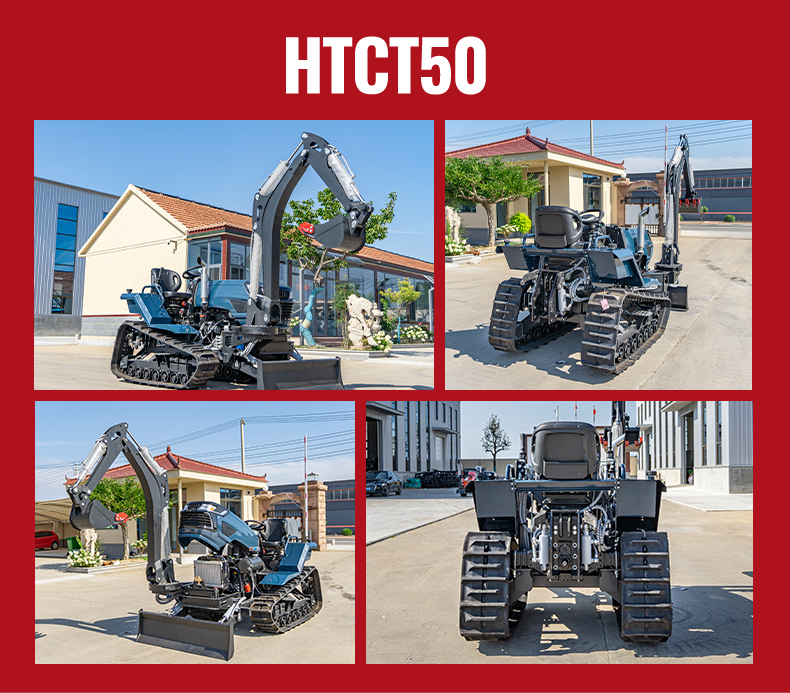

With HTCT50, HTCT60, and HTCT80 models available, this agricultural crawler tractor offers different power options to meet diverse working requirements, including land preparation, earthmoving, material handling, landscaping, and utility operations.

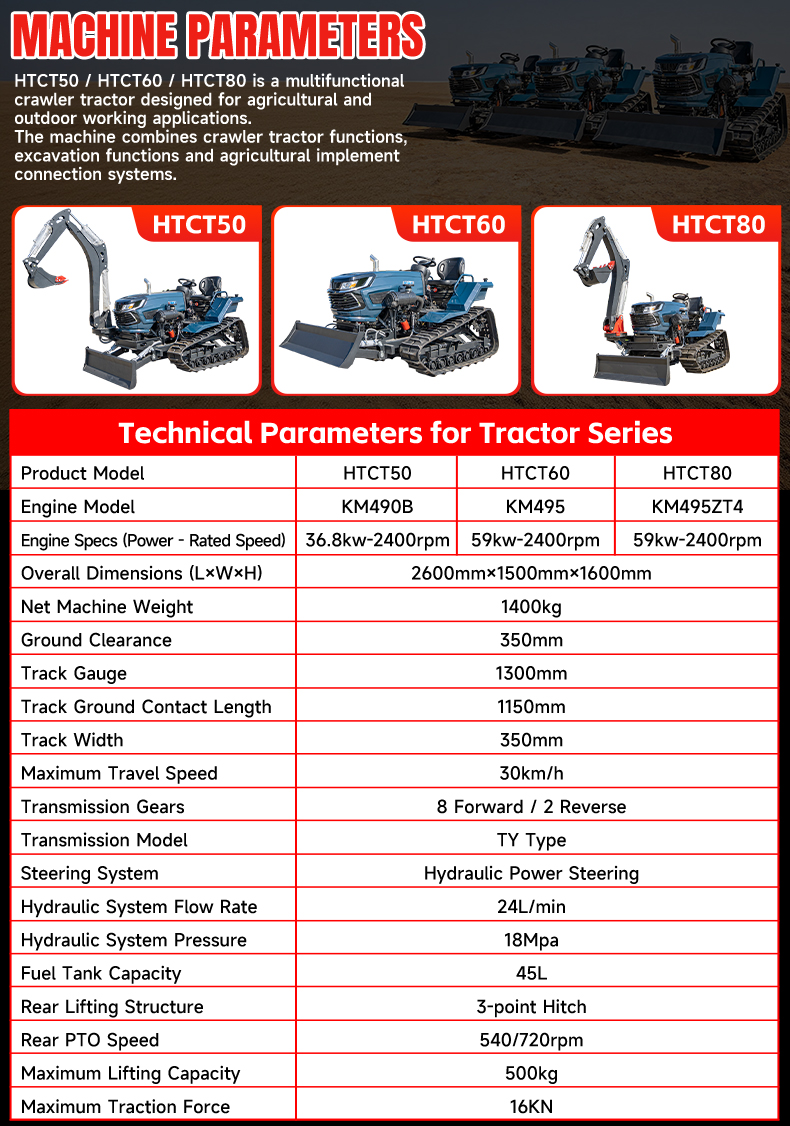

| Product Model | HTCT50 | HTCT60 | HTCT80 |

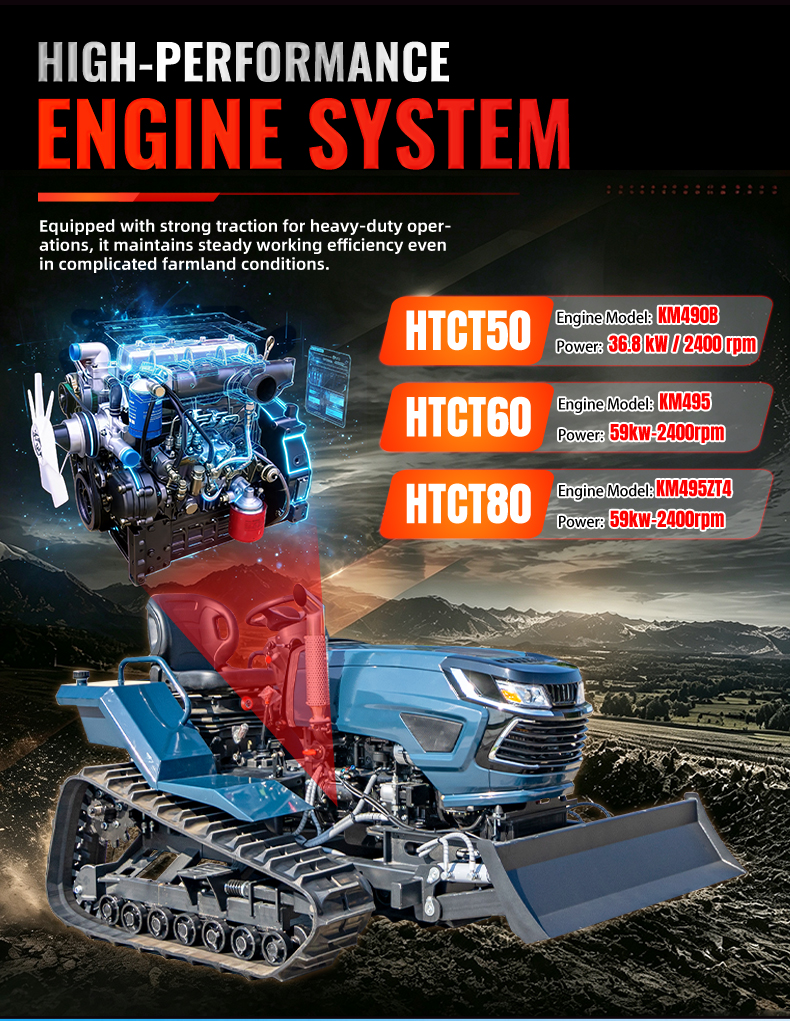

| Engine Model | KM490B | KM495 | KM495ZT4 |
| Engine Specs (Power‑Rated Speed) | 36.8kw‑2400rpm | 59kw‑2400rpm | 59kw‑2400rpm |
| Overall Dimensions (L×W×H) | 2600mm×1500mm×1600mm | ||
| Net Machine Weight | 1400kg | ||
| Ground Clearance | 350mm | ||
| Track Gauge | 1300mm | ||
| Track Ground Contact Length | 1150mm | ||
| Track Width | 350mm | ||
| Maximum Travel Speed | 30km/h | ||
| Transmission Gears | 8 Forward / 2 Reverse | ||
| Transmission Model | TY Type | ||
| Steering System | Hydraulic Power Steering | ||
| Hydraulic System Flow Rate | 24L/min | ||
| Hydraulic System Pressure | 18Mpa | ||
| Fuel Tank Capacity | 45L | ||
| Rear Lifting Structure | 3‑point Hitch | ||
| Rear PTO Speed | 540/720rpm | ||
| Maximum Lifting Capacity | 500kg | ||
| Maximum Traction Force | 16KN | ||

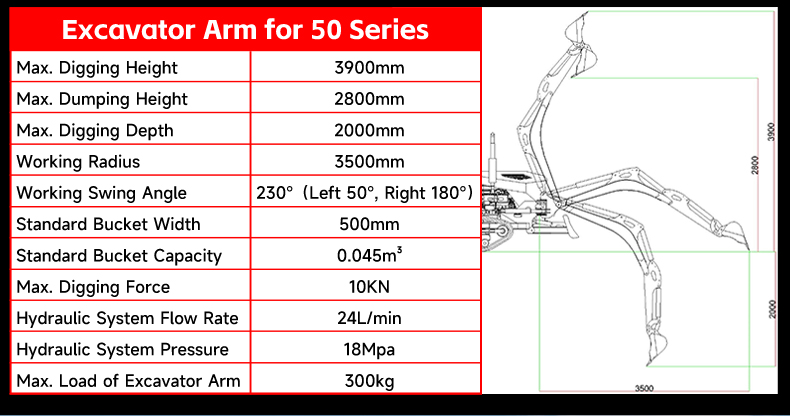

| Max. Digging Height | 3900mm | ||
| Max. Dumping Height | 2800mm | ||
| Max. Digging Depth | 2000mm | ||
| Working Radius | 3500mm | ||
| Working Swing Angle | 230° (Left 50°, Right 180°) | ||
| Standard Bucket Width | 500mm | ||
| Standard Bucket Capacity | 0.045m³ | ||
| Max. Digging Force | 10KN | ||
| Hydraulic System Flow Rate | 24L/min | ||
| Hydraulic System Pressure | 18Mpa | ||
| Max. Load of Excavator Arm | 300kg |
