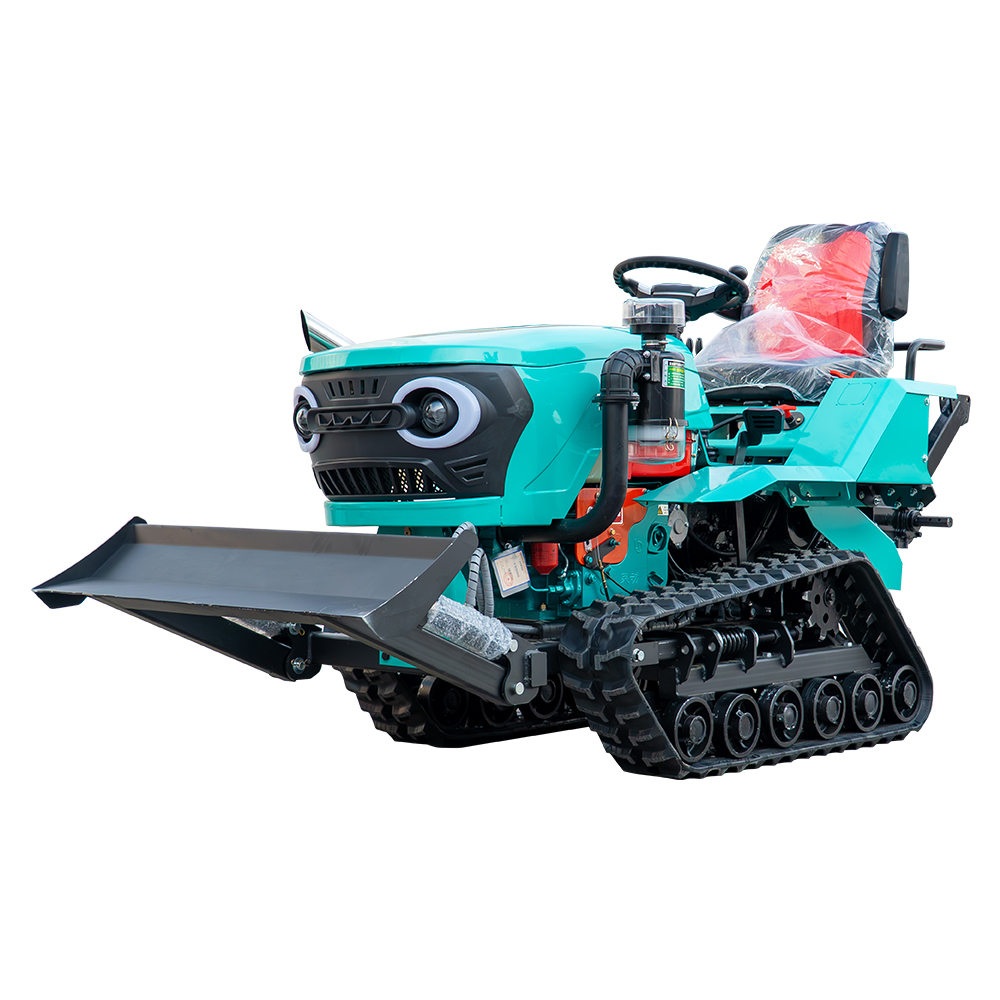

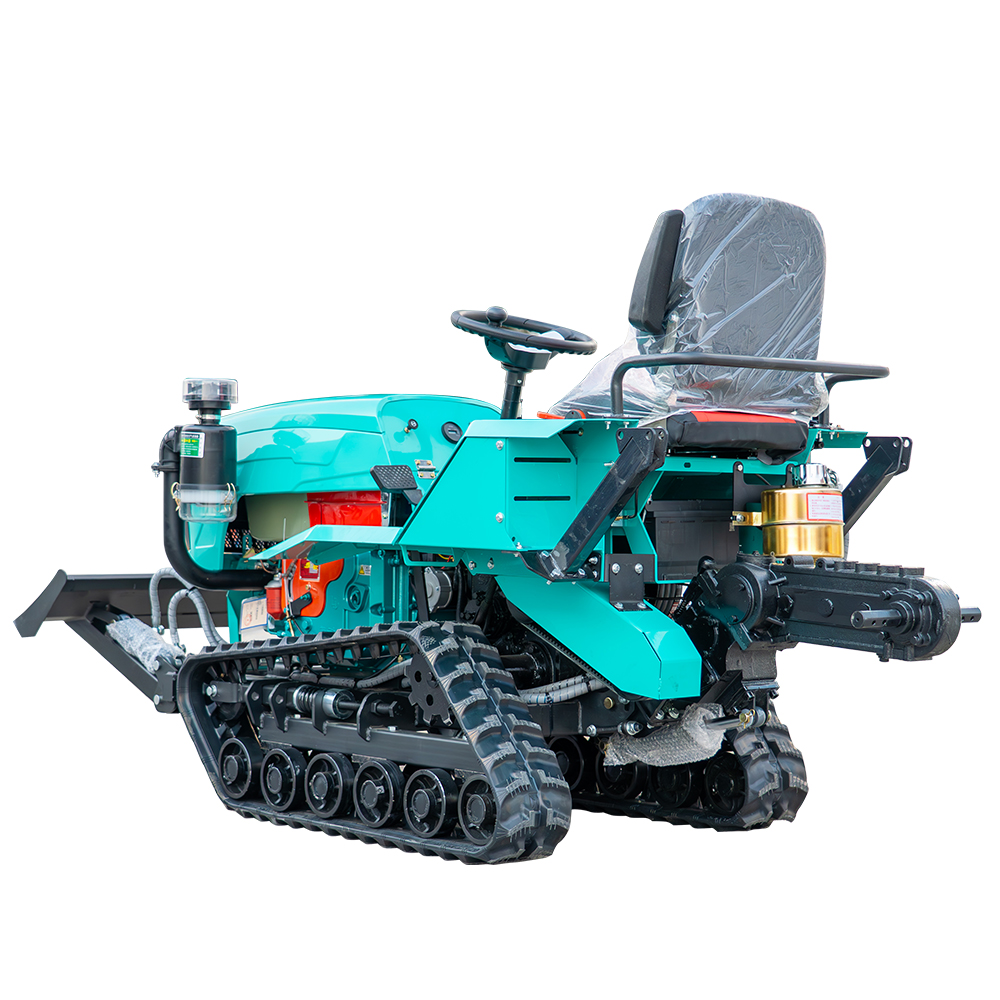

HTR35 Crawler Tractor

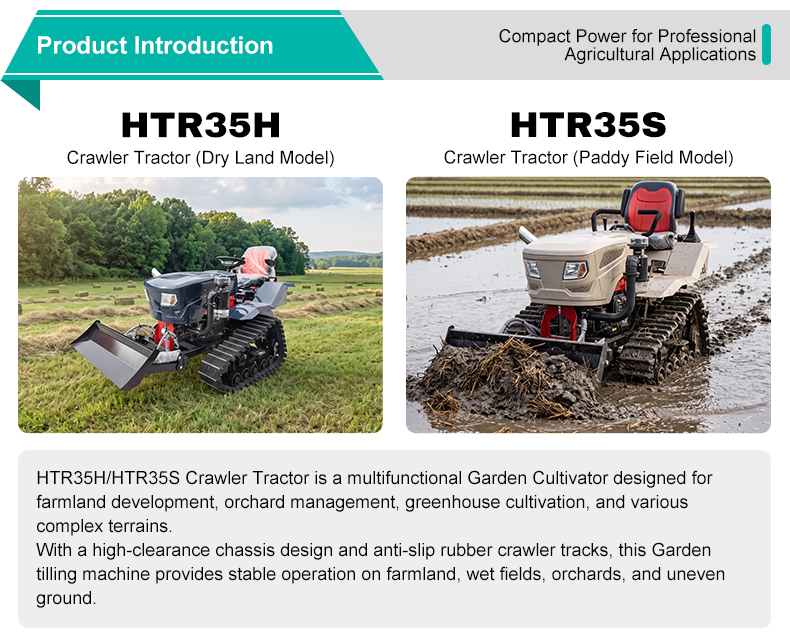

HTR35H/HTR35S Crawler Tractor is a multifunctional Garden Cultivator designed for farmland development, orchard management, greenhouse cultivation, and various complex terrains.

HTR35 Crawler Tractor Description

HTR35 Crawler Tractor Description

HTR35H/HTR35S Crawler Tractor is a multifunctional Garden Cultivator designed for farmland development, orchard management, greenhouse cultivation, and various complex terrains.

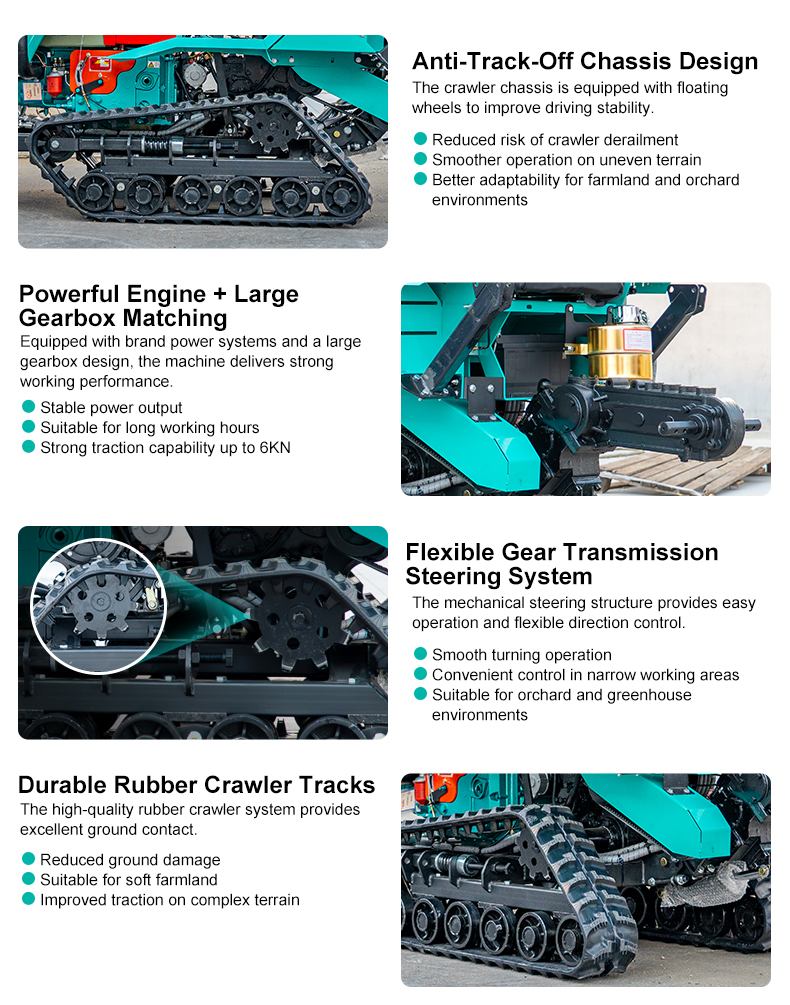

With a high-clearance chassis design and anti-slip rubber crawler tracks, this Garden tilling machine provides stable operation on farmland, wet fields, orchards, and uneven ground.

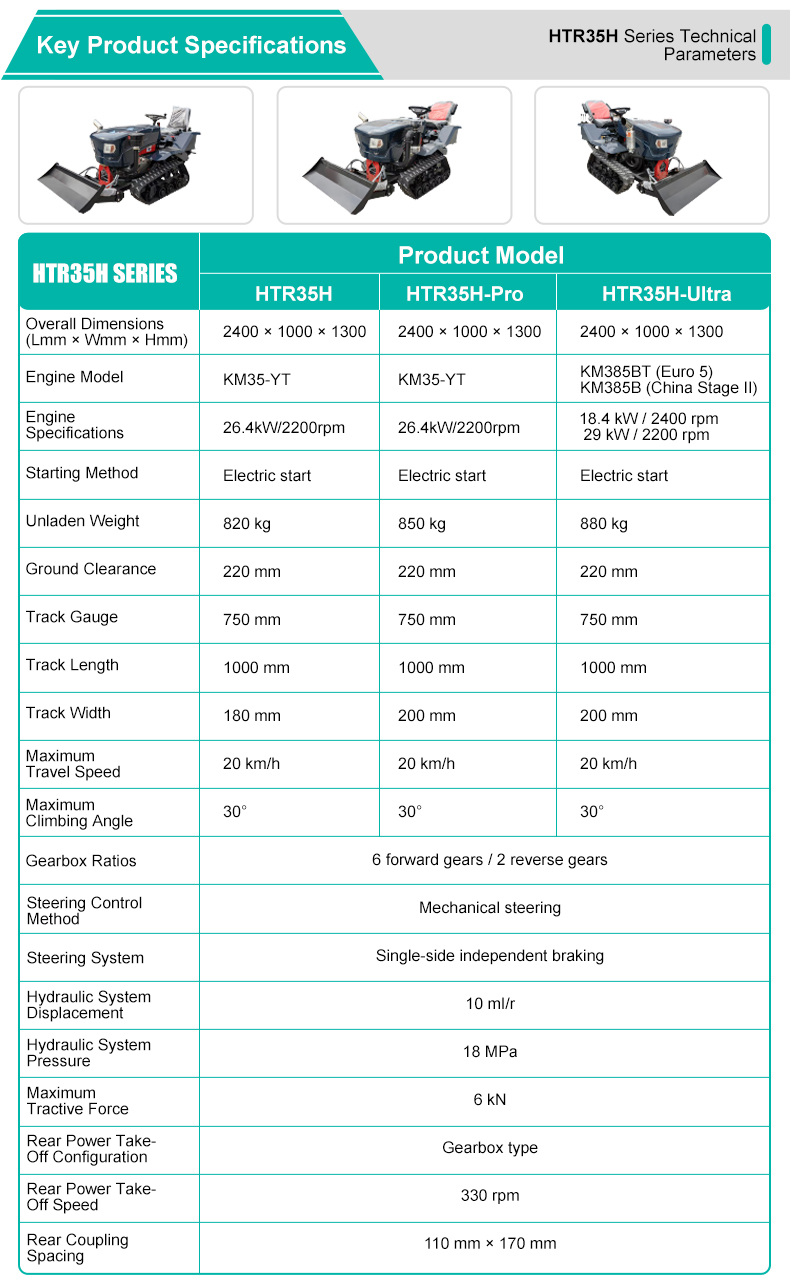

HTR35H Crawler Tractor Parameter

Item HTR35H HTR35H-Pro HTR35H-Ultra
Overall Dimensions (Lmm × Wmm × Hmm) 2400 × 1000 × 1300 2400 × 1000 × 1300 2400 × 1000 × 1300
Engine Model KM35-YT KM35-YT KM385BT (Euro 5)
KM385B (China Stage II)
Engine Specifications 26.4kW/2200rpm 26.4kW/2200rpm 18.4 kW / 2400 rpm
29 kW / 2200 rpm
Starting Method Electric start Electric start Electric start
Unladen Weight 820 kg 850 kg 880 kg
Ground Clearance 220 mm 220 mm 220 mm
Track Gauge 750 mm 750 mm 750 mm
Track Length 1000 mm 1000 mm 1000 mm
Track Width 180 mm 200 mm 200 mm
Maximum Travel Speed 20 km/h 20 km/h 20 km/h
Maximum Climbing Angle 30° 30° 30°
Gearbox Ratios 6 forward gears / 2 reverse gears
Steering Control Method Mechanical steering
Steering System Single-side independent braking
Hydraulic System Displacement 10 ml/r
Hydraulic System Pressure 18 MPa
Maximum Tractive Force 6 kN
Rear Power Take-Off Configuration Gearbox type
Rear Power Take-Off Speed 330 rpm
Rear Coupling Spacing 110 mm × 170 mm

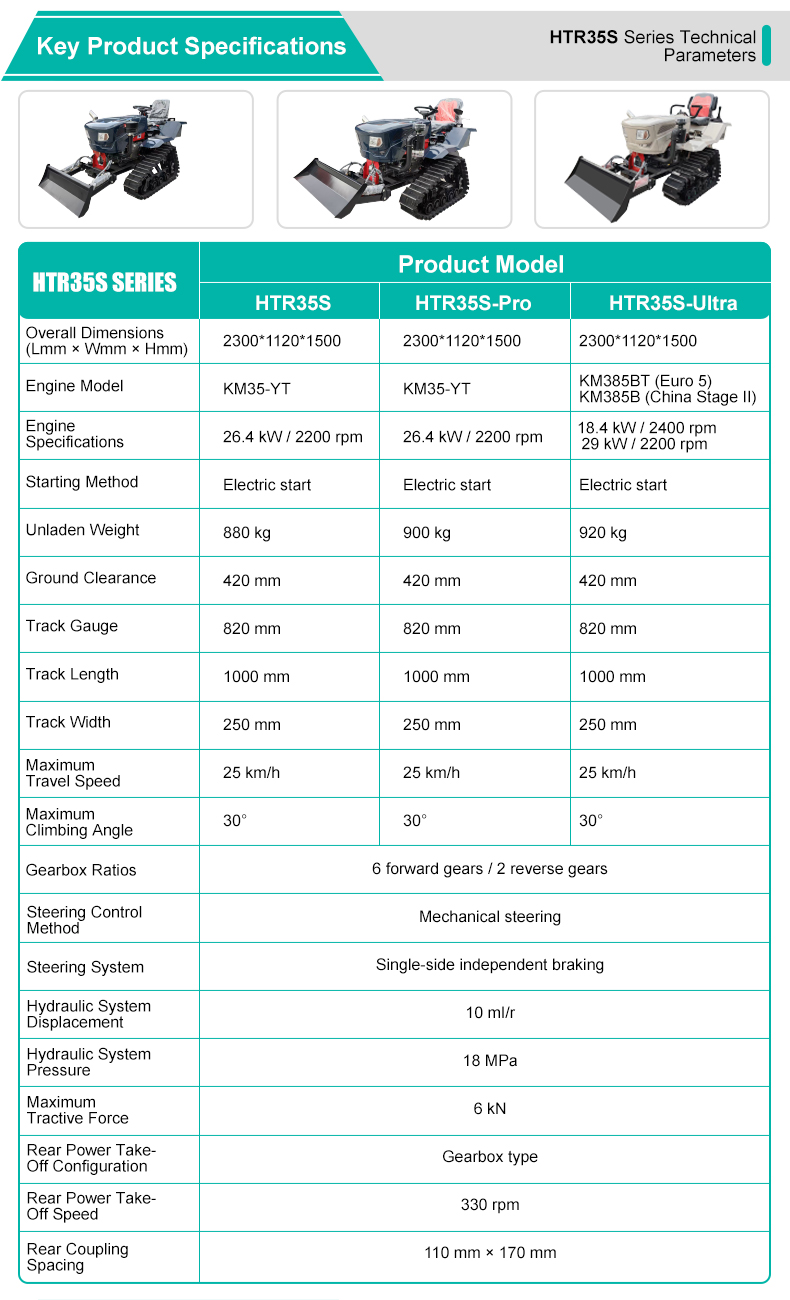

HTR35S Crawler Tractor Parameter
Item HTR35S HTR35S-Pro HTR35S-Ultra
Overall Dimensions (Lmm × Wmm × Hmm) 2.30011E+11 2.30011E+11 2.30011E+11
Engine Model KM35-YT KM35-YT KM385BT (Euro 5)
KM385B (China Stage II)
Engine Specifications 26.4 kW / 2200 rpm 26.4 kW / 2200 rpm 18.4 kW / 2400 rpm
29 kW / 2200 rpm
Starting Method Electric start Electric start Electric start
Unladen Weight 880 kg 900 kg 920 kg
Ground Clearance 420 mm 420 mm 420 mm
Track Gauge 820 mm 820 mm 820 mm
Track Length 1000 mm 1000 mm 1000 mm
Track Width 250 mm 250 mm 250 mm
Maximum Travel Speed 25 km/h 25 km/h 25 km/h
Maximum Climbing Angle 30° 30° 30°
Gearbox Ratios 6 forward gears / 2 reverse gears
Steering Control Method Mechanical steering
Steering System Single-side independent braking
Hydraulic System Displacement 10 ml/r
Hydraulic System Pressure 18 MPa
Maximum Tractive Force 6 kN
Rear Power Take-Off Configuration Gearbox type
Rear Power Take-Off Speed 330 rpm
Rear Coupling Spacing 110 mm × 170 mm
HTR35 Crawler Tractor Images
