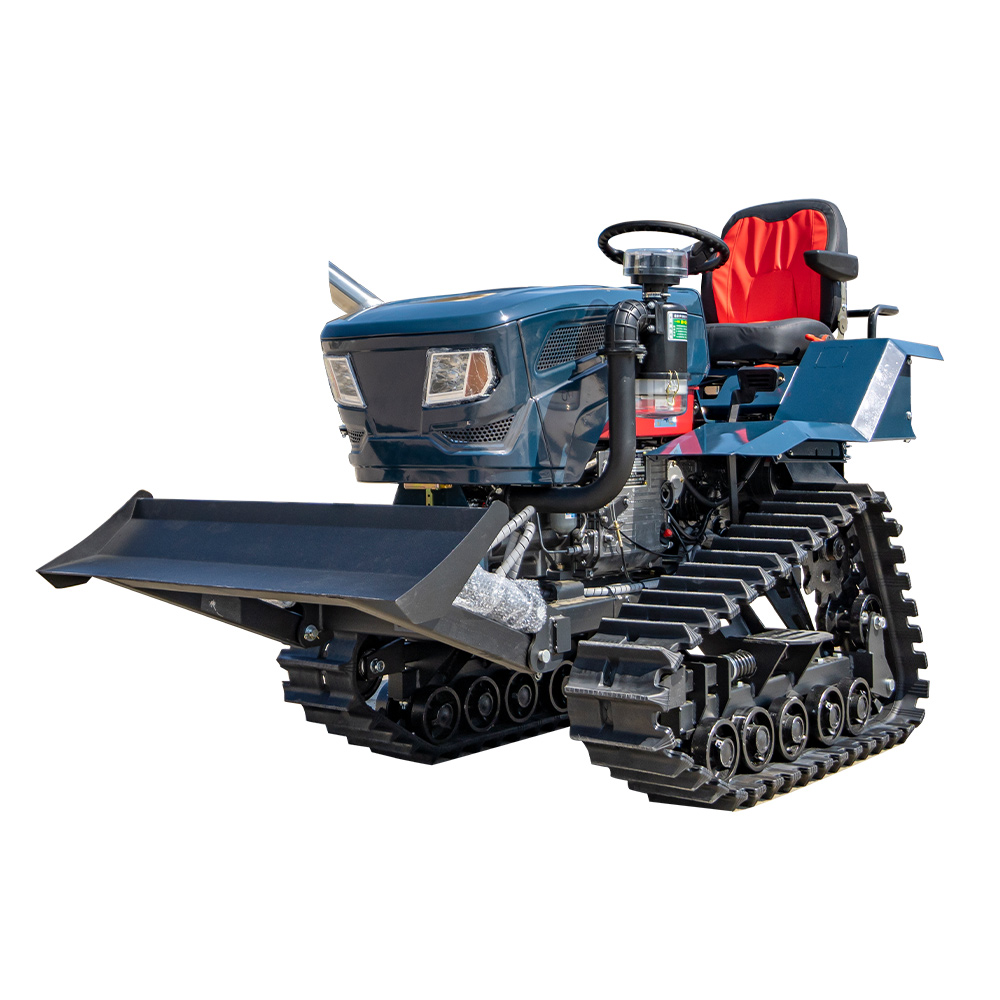

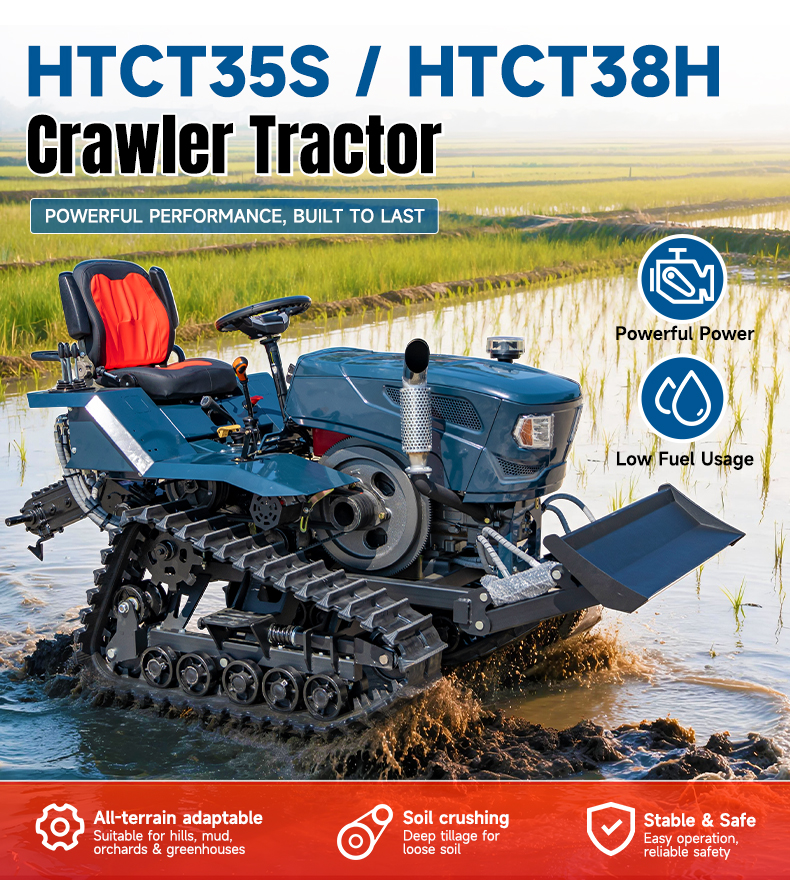

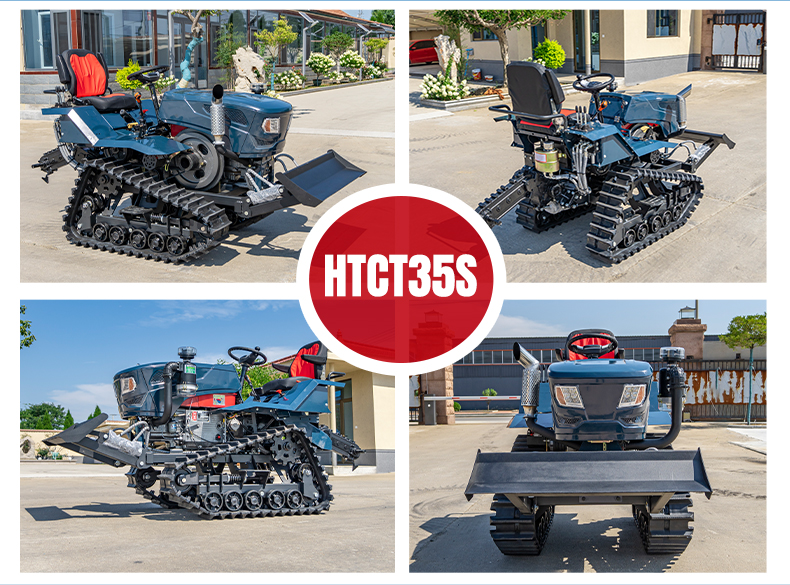

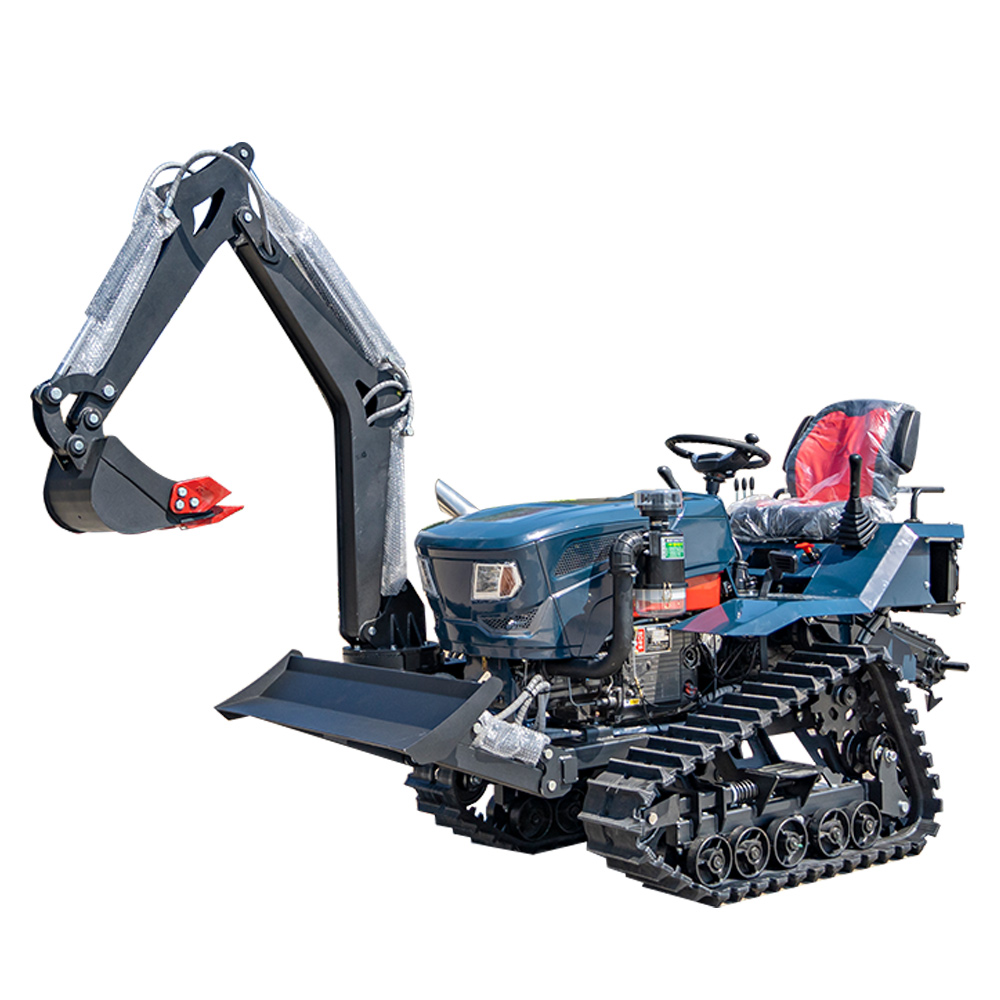

HTCT35S/HTCT38H Crawler Tractor

HTCT35S/HTCT38H Crawler Tractor is a professional Farm machinery solution integrating excavation, cultivation, land leveling and agricultural operations.

HTCT35S/HTCT38H Crawler Tractor Description

HTCT35S/HTCT38H Crawler Tractor Description

HTCT35S / HTCT38H Multifunctional Crawler Tractor is a professional Farm machinery solution integrating excavation, cultivation, land leveling and agricultural operations.

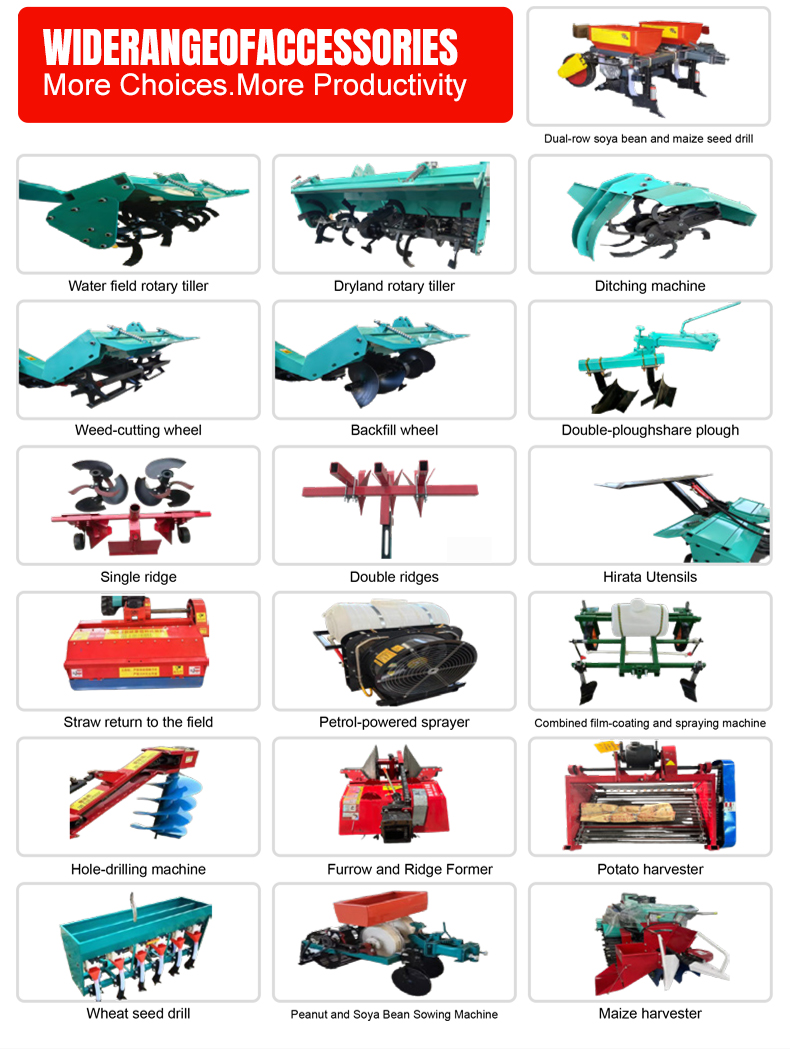

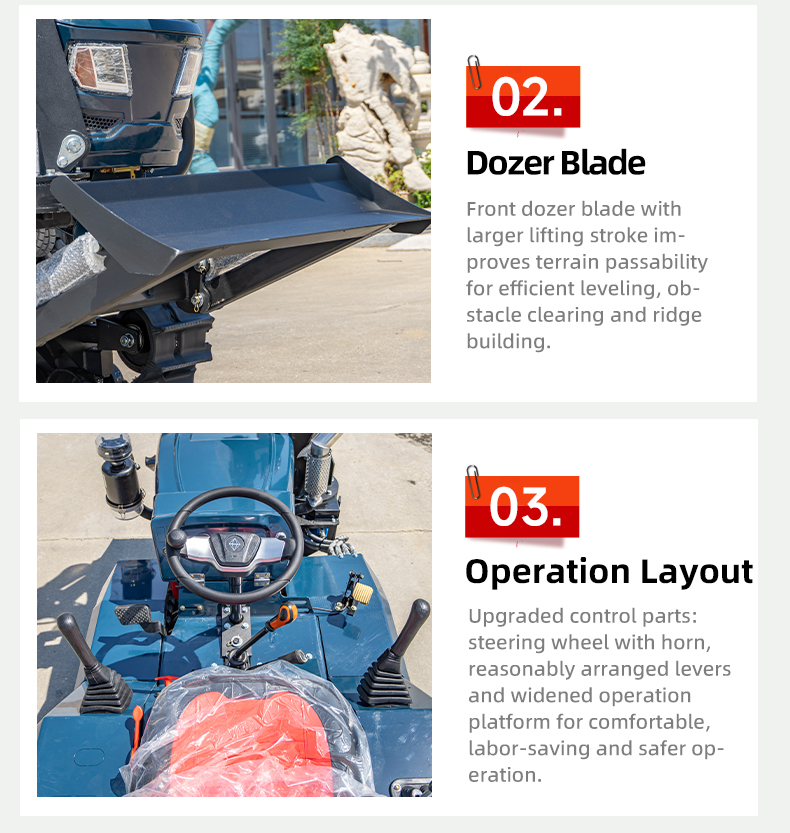

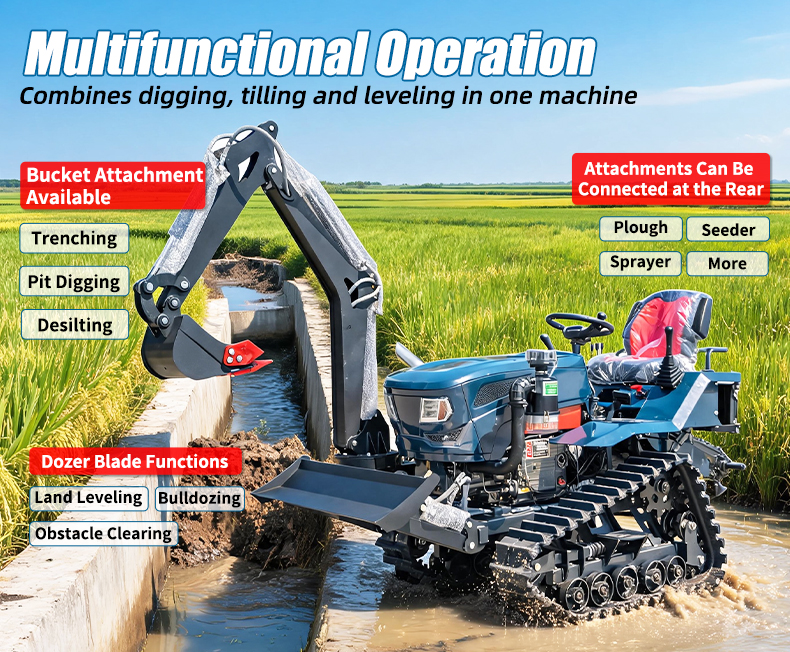

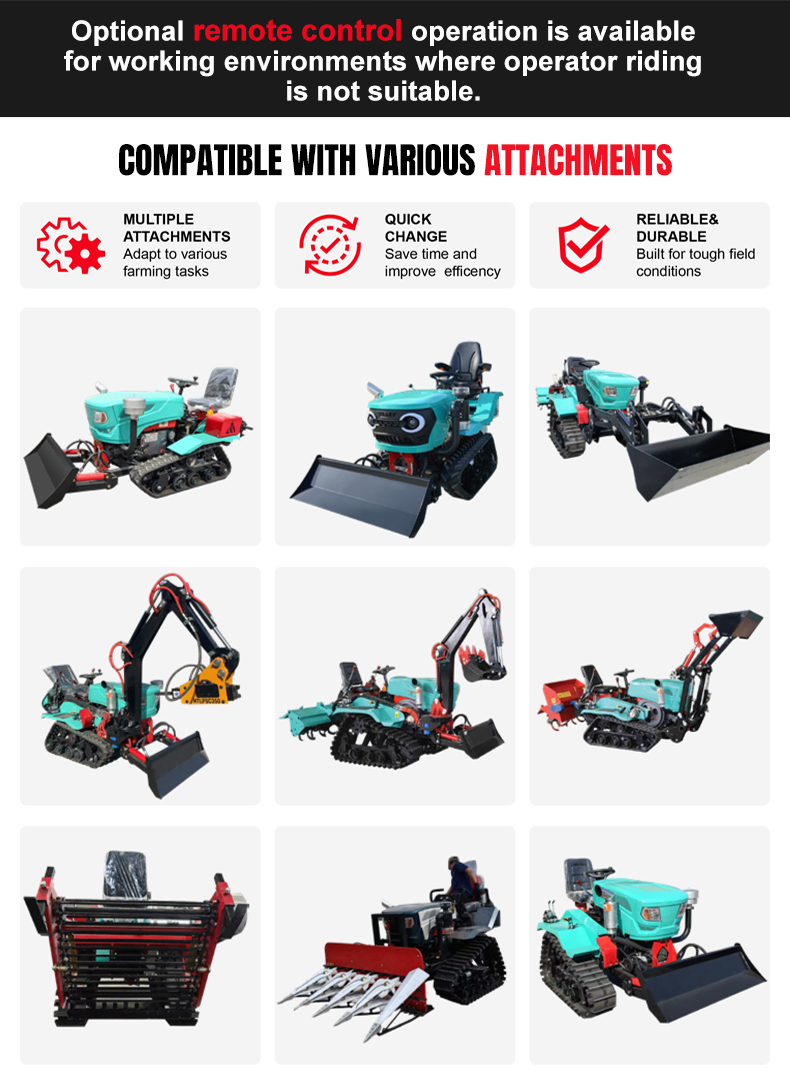

Equipped with front pushing blade and rear agricultural attachment connection system, this machine can work as a Multifunctional Garden Cultivator, Garden Cultivator, Garden tilling machine and Agricultural cultivator equipment.

It is widely used in orchards, greenhouses, farmland, hillsides and paddy fields.

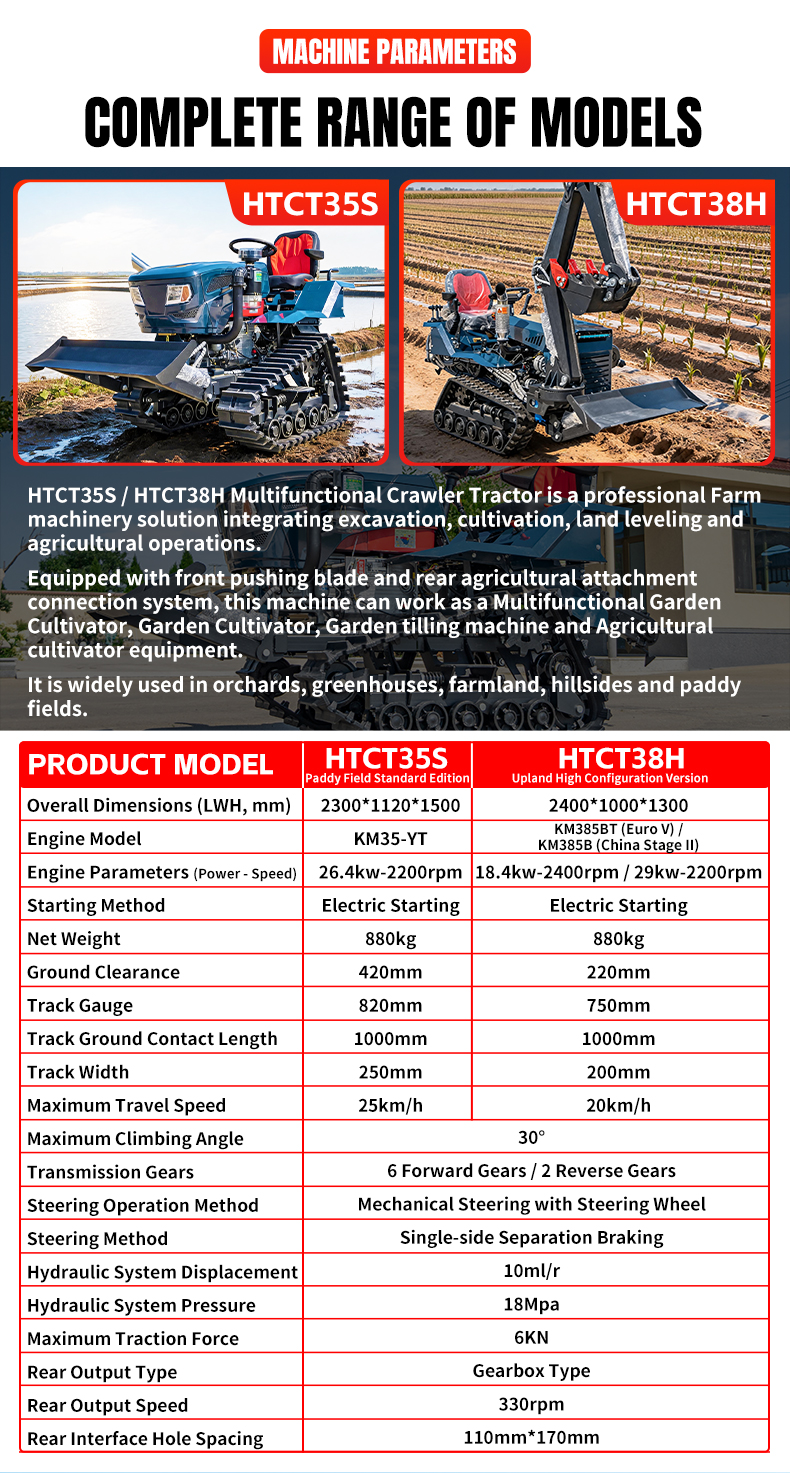

HTCT35S/HTCT38H Crawler Tractor Parameter

PRODUCT MODEL	HTCT35S Paddy Field Standard Edition	HTCT38H Upland High Configuration Version

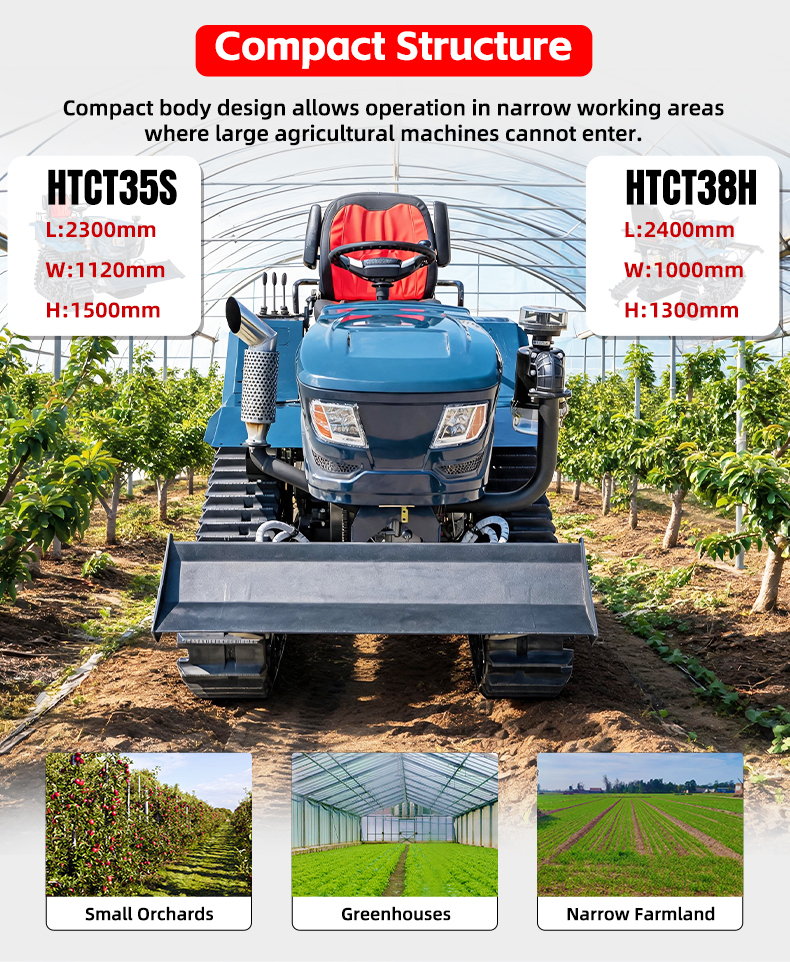

Overall Dimensions (LWH, mm)	230011201500	240010001300
Engine Model	KM35‑YT	KM385BT (Euro V) / KM385B (China Stage II)
Engine Parameters (Power‑Speed)	26.4kw‑2200rpm	18.4kw‑2400rpm / 29kw‑2200rpm
Starting Method	Electric Starting	Electric Starting
Net Weight	880kg	880kg
Ground Clearance	420mm	220mm
Track Gauge	820mm	750mm
Track Ground Contact Length	1000mm	1000mm
Track Width	250mm	200mm
Maximum Travel Speed	25km/h	20km/h

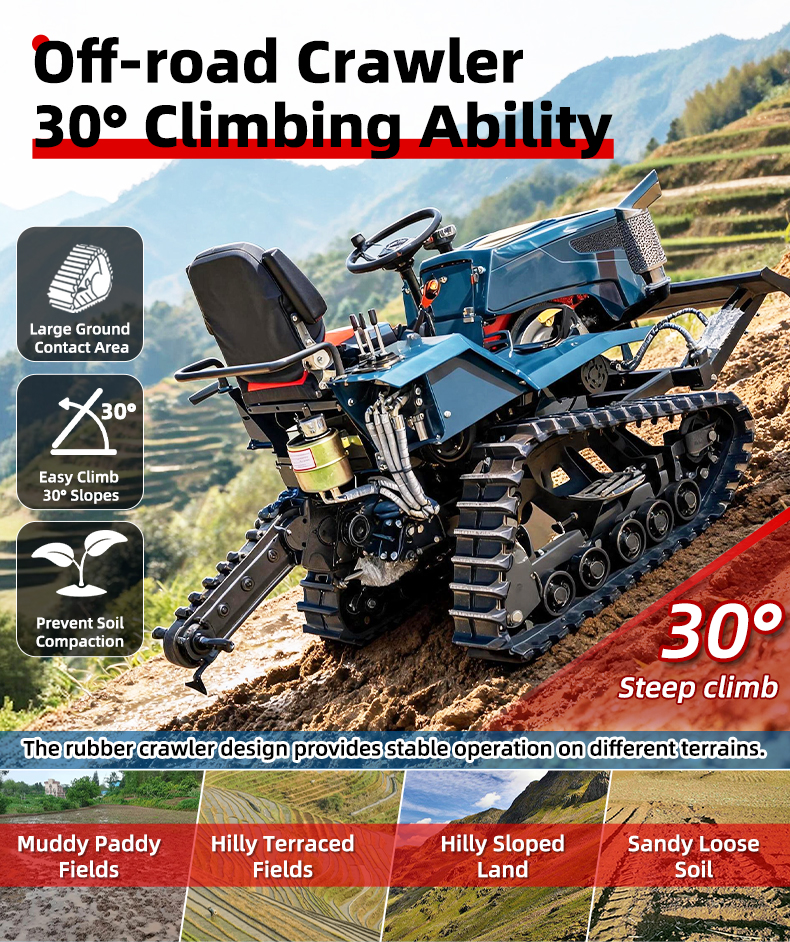

Maximum Climbing Angle	30°
Transmission Gears	6 Forward Gears / 2 Reverse Gears
Steering Operation Method	Mechanical Steering with Steering Wheel
Steering Method	Single‑side Separation Braking
Hydraulic System Displacement	10ml/r
Hydraulic System Pressure	18Mpa
Maximum Traction Force	6KN
Rear Output Type	Gearbox Type
Rear Output Speed	330rpm
Rear Interface Hole Spacing	*110mm170mm**
