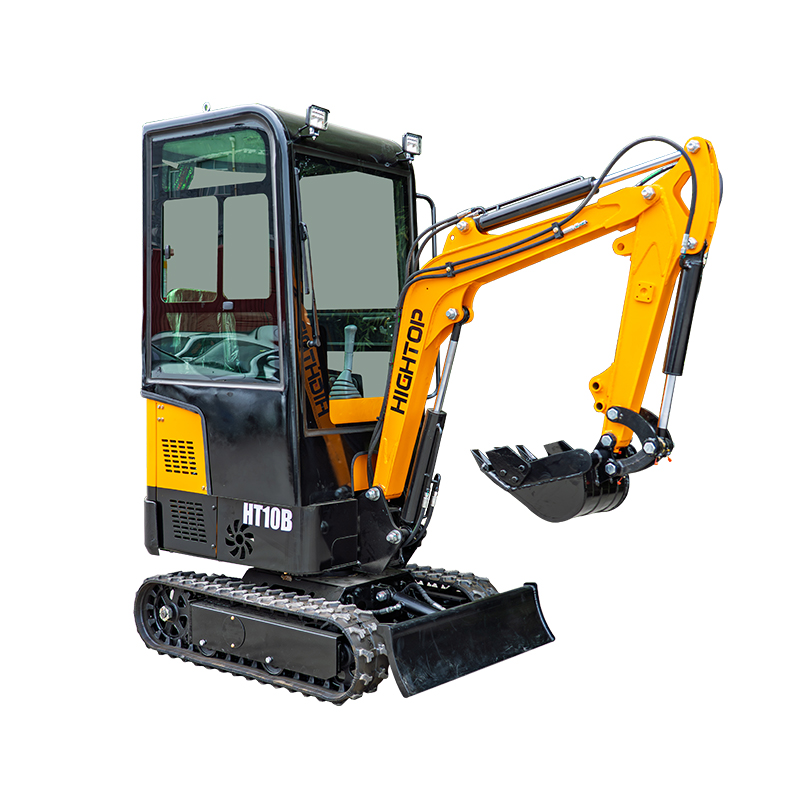

HT10B Mini Excavator is engineered for tight-access jobs where full-sized machines simply cannot go. With an operating weight of just **1000 kg**, a transport length of **2225 mm**, and an overall wi
HT10B Mini Excavator Description

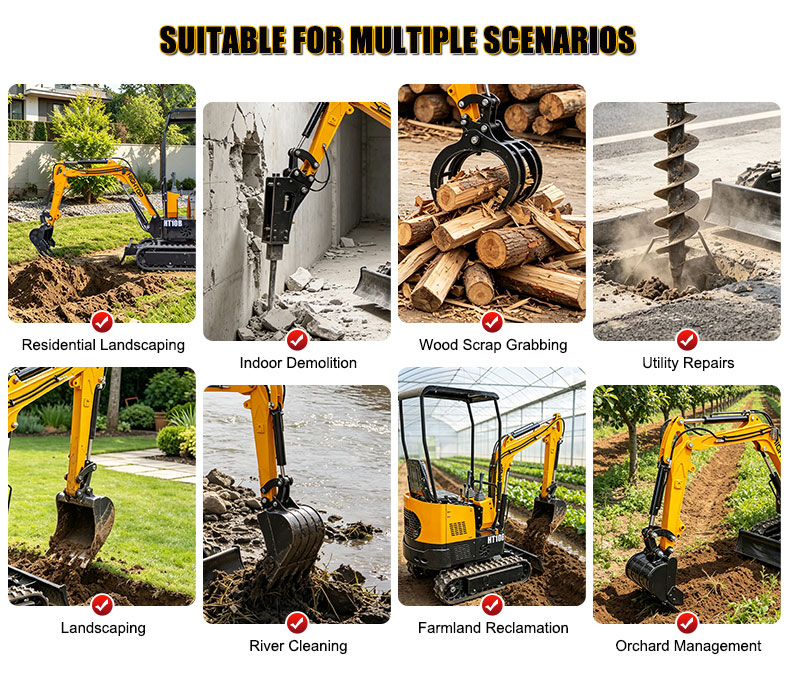

HT10B Mini Excavator is engineered for tight-access jobs where full-sized machines simply cannot go. With an operating weight of just **1000 kg**, a transport length of **2225 mm**, and an overall width of only **930 mm**, it easily passes through doorways, gateways, and narrow garden paths. Despite its small footprint, it delivers a **digging depth of 1745 mm**, a digging reach of **2915 mm**, and a dumping height of **1750 mm**, powered by a reliable **Briggs & Stratton or Koop engine** and a Beifang main control valve for smooth, responsive hydraulic control. The tight tail-swing design (rear swing radius **810 mm**) and minimum turning radius of **1415 mm** make it ideal for working next to walls, fences, and existing structures. A front dozer blade adds stability for digging and can also backfill and level ground. Rated for a **30° gradeability** and fitted with a 0.025 m³ bucket, this mini excavator is the perfect partner for landscaping, residential construction, indoor demolition, utility trenching, and farming.
HT10B Mini Excavator Parameter
Category
Item
Specification
Performance
Operating Weight
1000 kg
Bucket Capacity
0.025 m³
Working Equipment Type
Backhoe

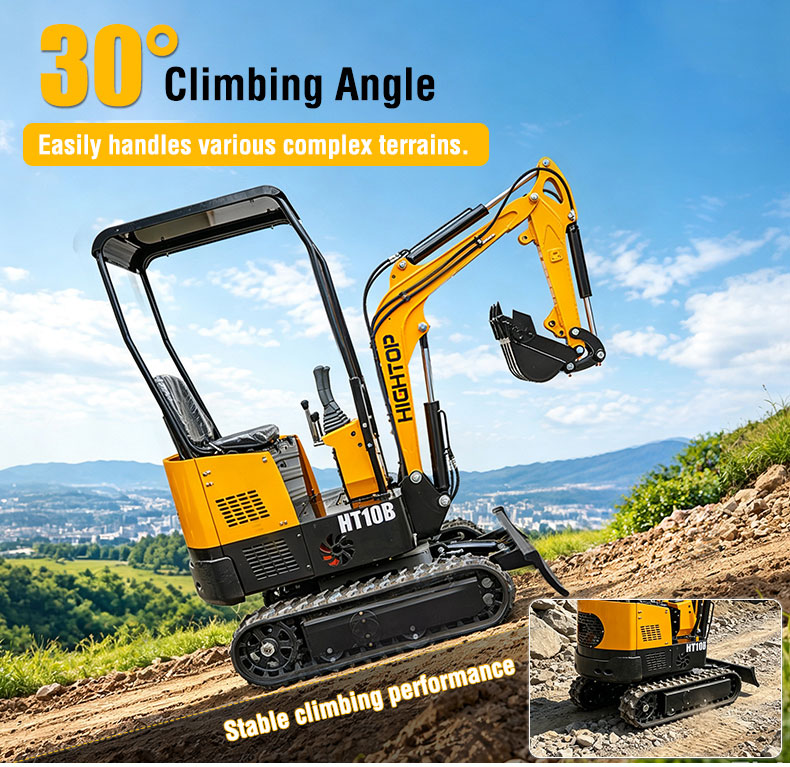

Gradeability
30°

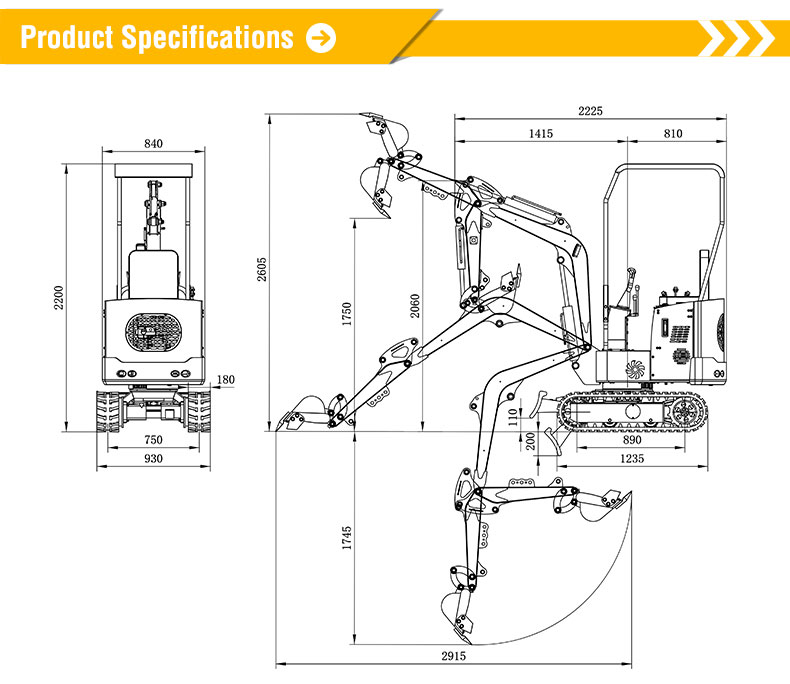

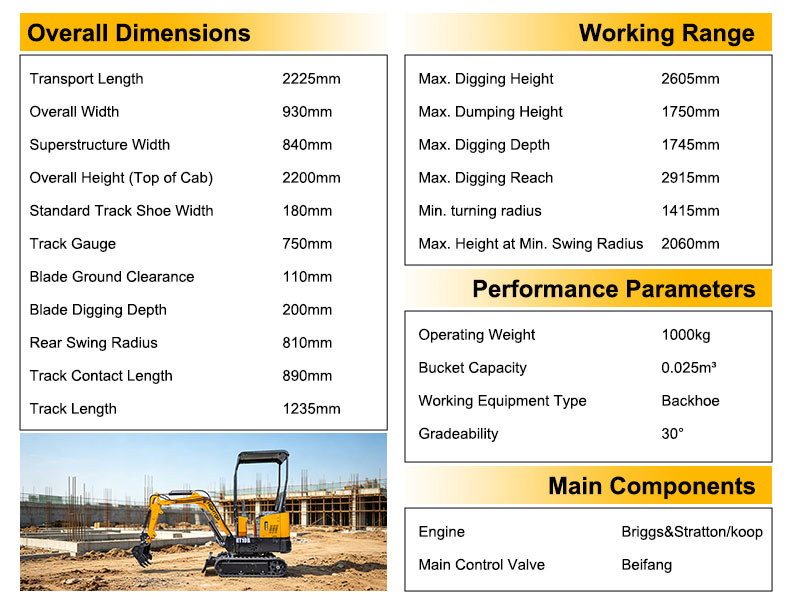

Overall Dimensions
Transport Length
2225 mm
Overall Width
930 mm
Superstructure Width
840 mm
Overall Height (Top of Cab)
2200 mm
Standard Track Shoe Width
180 mm
Track Gauge
750 mm
Track Contact Length
890 mm
Track Length
1235 mm

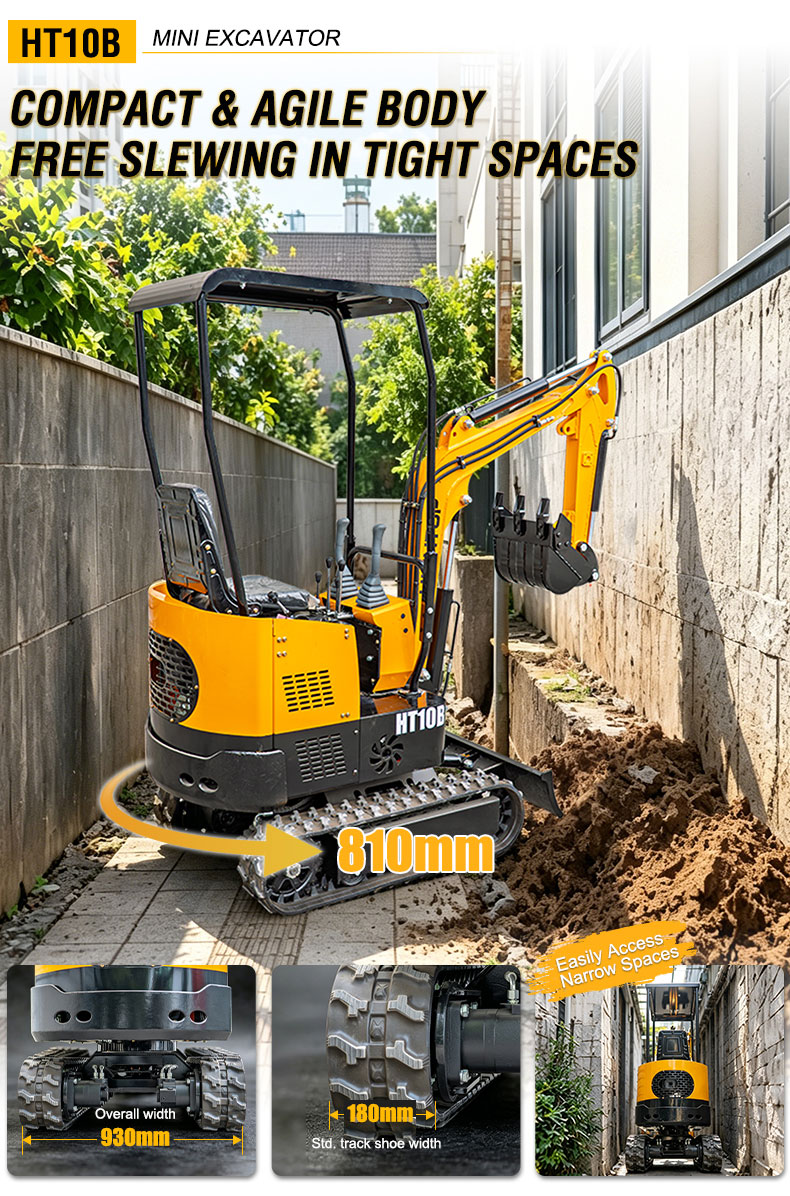

Rear Swing Radius
810 mm
Blade Ground Clearance
110 mm
Blade Digging Depth
200 mm
Working Range
Max. Digging Height
2605 mm
Max. Dumping Height
1750 mm
Max. Digging Depth
1745 mm
Max. Digging Reach
2915 mm
Min. Turning Radius
1415 mm
Max. Height at Min. Swing Radius
2060 mm
Main Components
Engine
Briggs & Stratton / Koop
Main Control Valve
Beifang

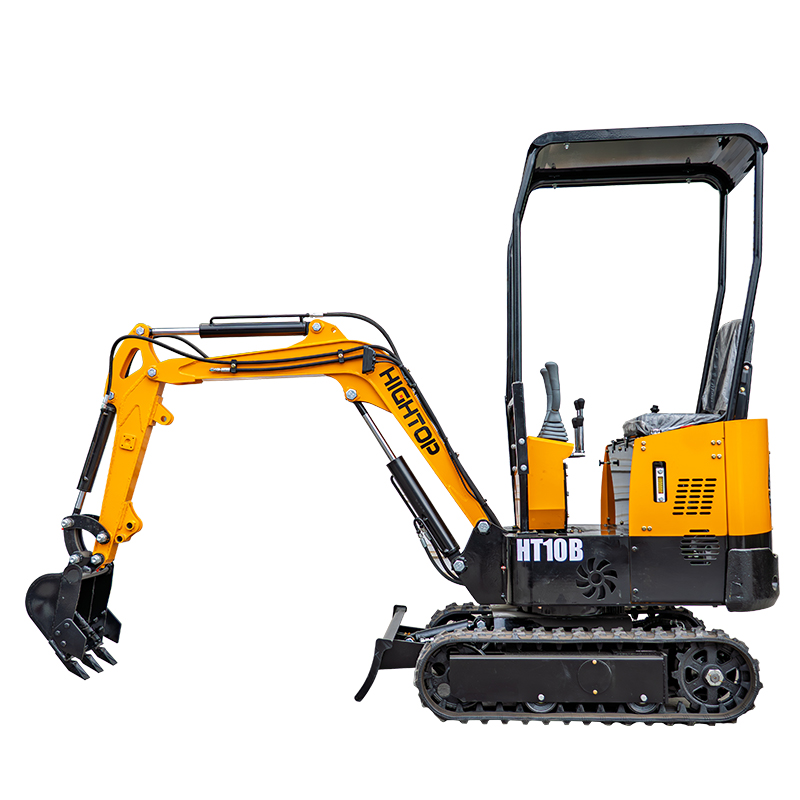

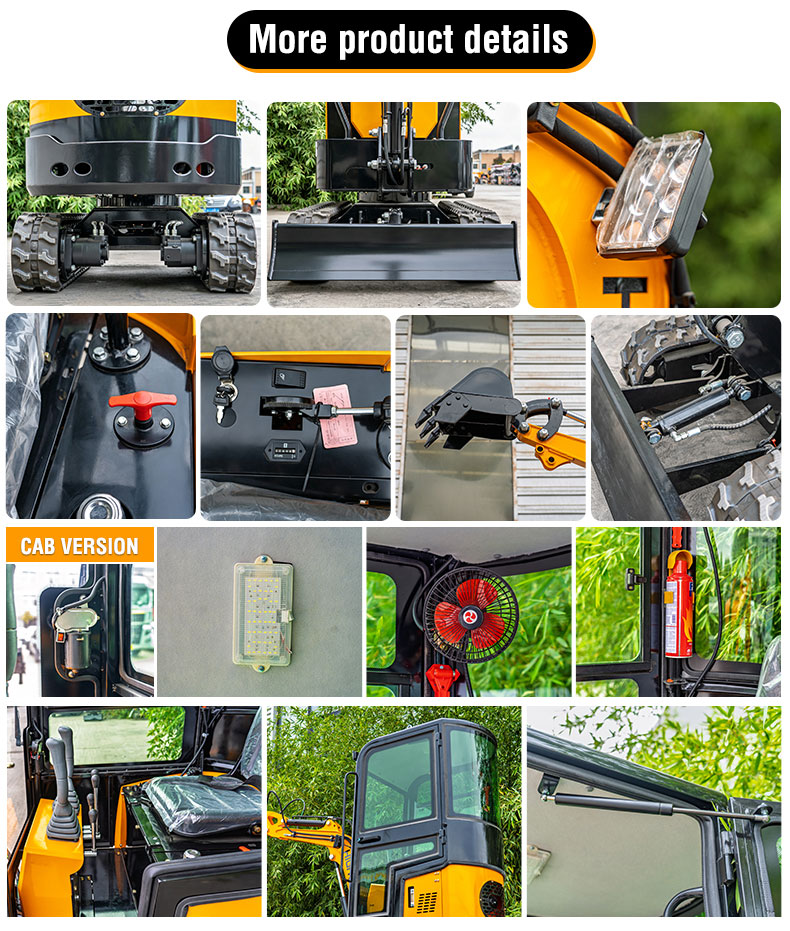

HT10B Mini Excavator Images
