HT18-1 Mini Hydraulic Excavator  Description:

High working efficiency: The radius of rotation is small. In the case of limited working space, the operator does not need to consider obstacles on the construction site to hinder the rotation of the excavator, so that the operator can focus on the operation of the bucket, which greatly improves the work effectiveness.

HT18-1 Mini Hydraulic Excavator  Features:

1. The standard configuration of this excavator includes the boom side swing function.Deflection angle (Left/Right):35°

2. This machine This machine is equipped with a plunger motor with high and low speed functions. Low speed can provide more powerful power when the excavator is climbing, high speed is suitable for normal driving.

HT18-1 Mini Excavator Parameter

Overall Dimensions (Unit: mm)
Transport Length A	2450
Overall Width B	1120
Upper‑structure Width D	990
Overall Height (Top of Cab) C	2280
Standard Track Shoe Width F	200
Track Gauge E	920
Dozer Blade Ground Clearance G	105
Dozer Blade Digging Depth H	270
Tail Swing Radius I	795
Track Ground‑contact Length J	1050
Track Length K	1350
Working Range (Unit: mm)
Max Digging Height a	2785
Max Dumping Height b	1860
Max Digging Depth c	2050
Max Digging Reach d	3130
Min Swing Radius e	1655
Max Height at Minimum Swing Radius f	2205
Performance Parameters
Operating Weight (KG)	1425kg
Bucket Capacity (m³)	0.02
Working Device Type	Backhoe
Gradeability	30°
Main Components
Engine	Kubota
Main Valve	North‑type

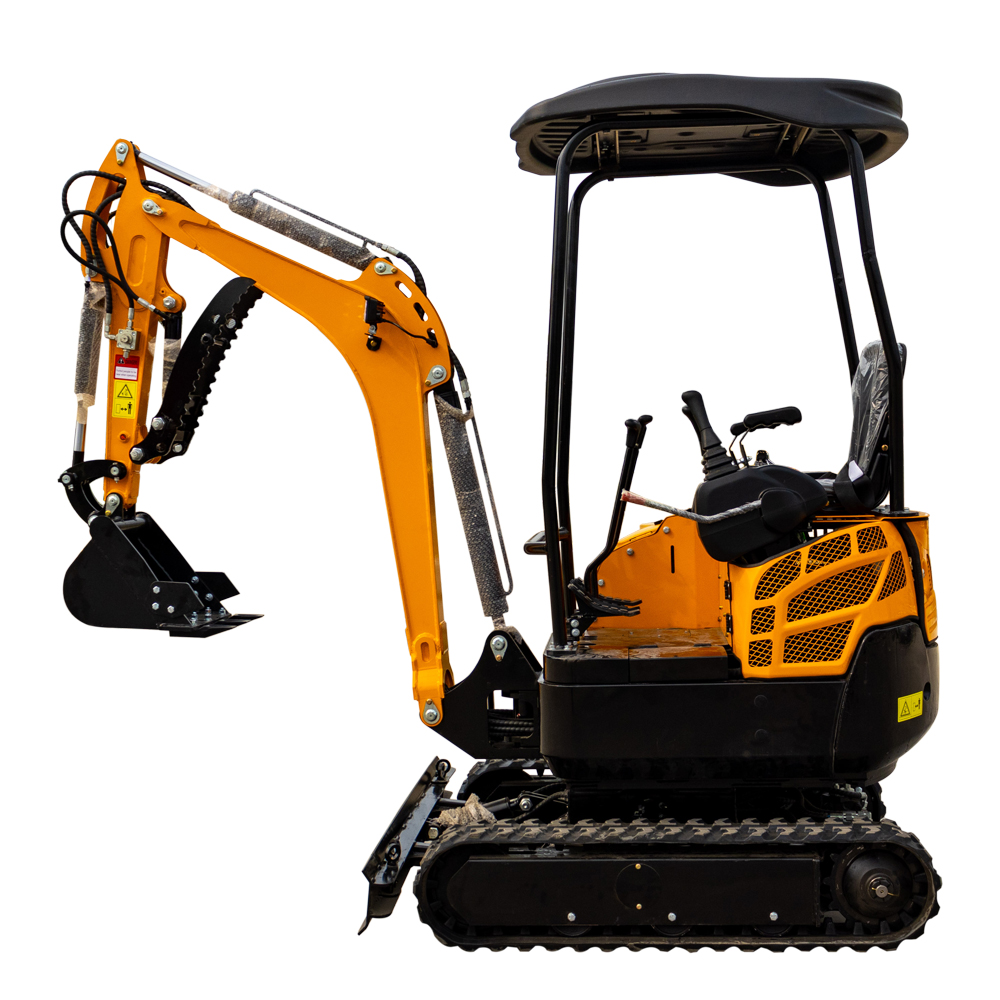

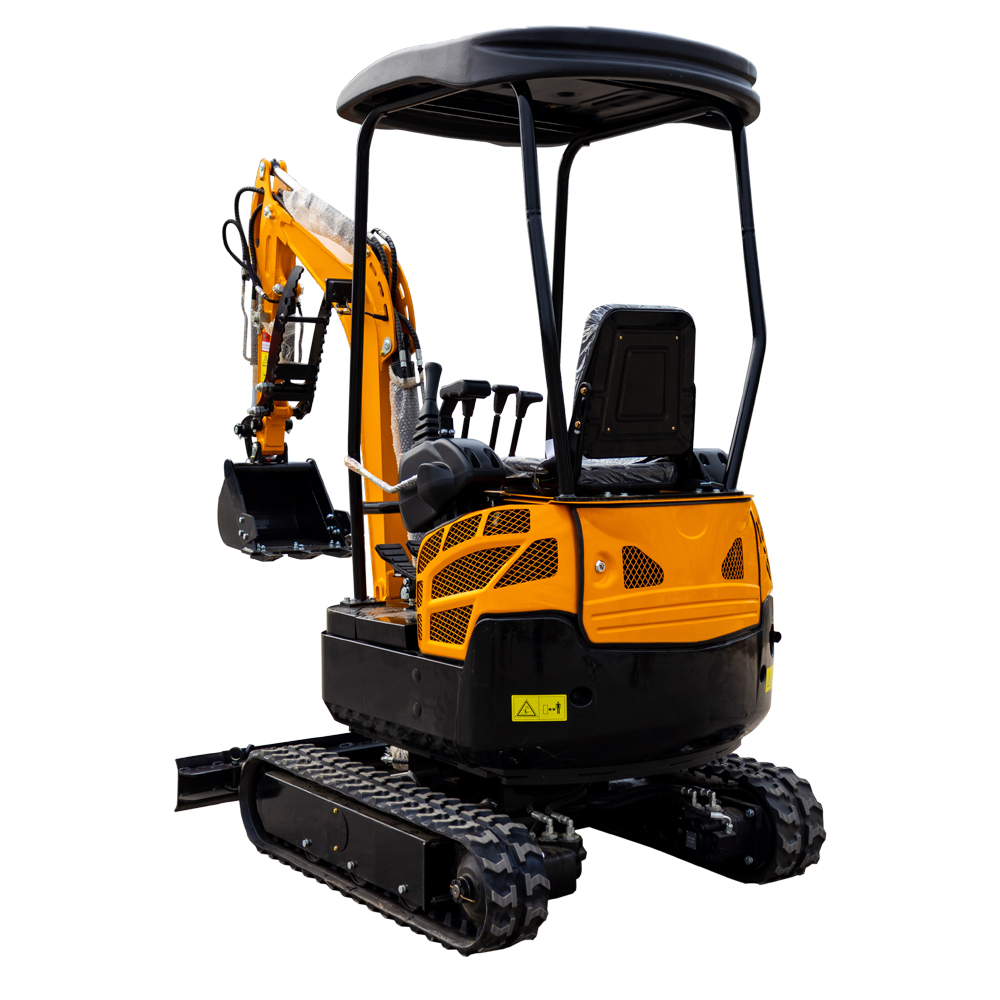

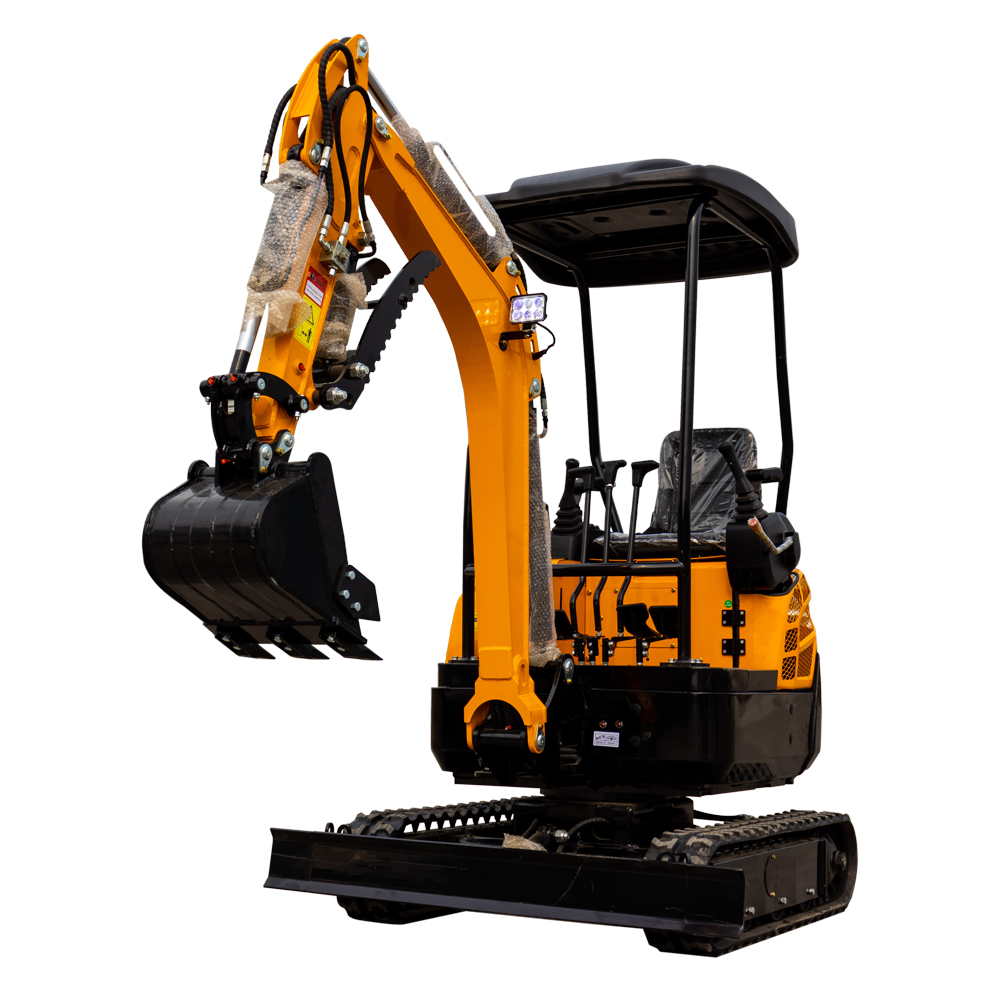

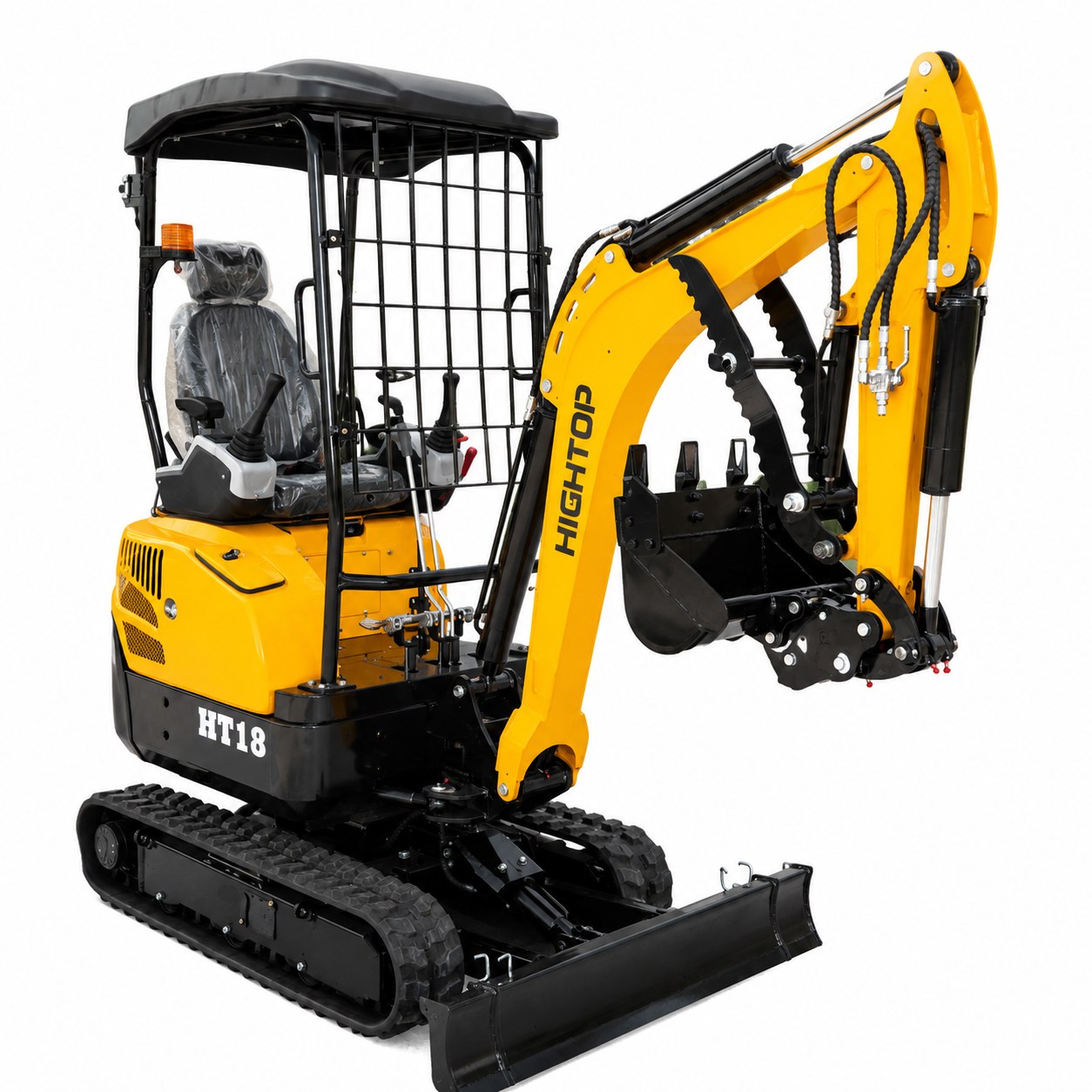

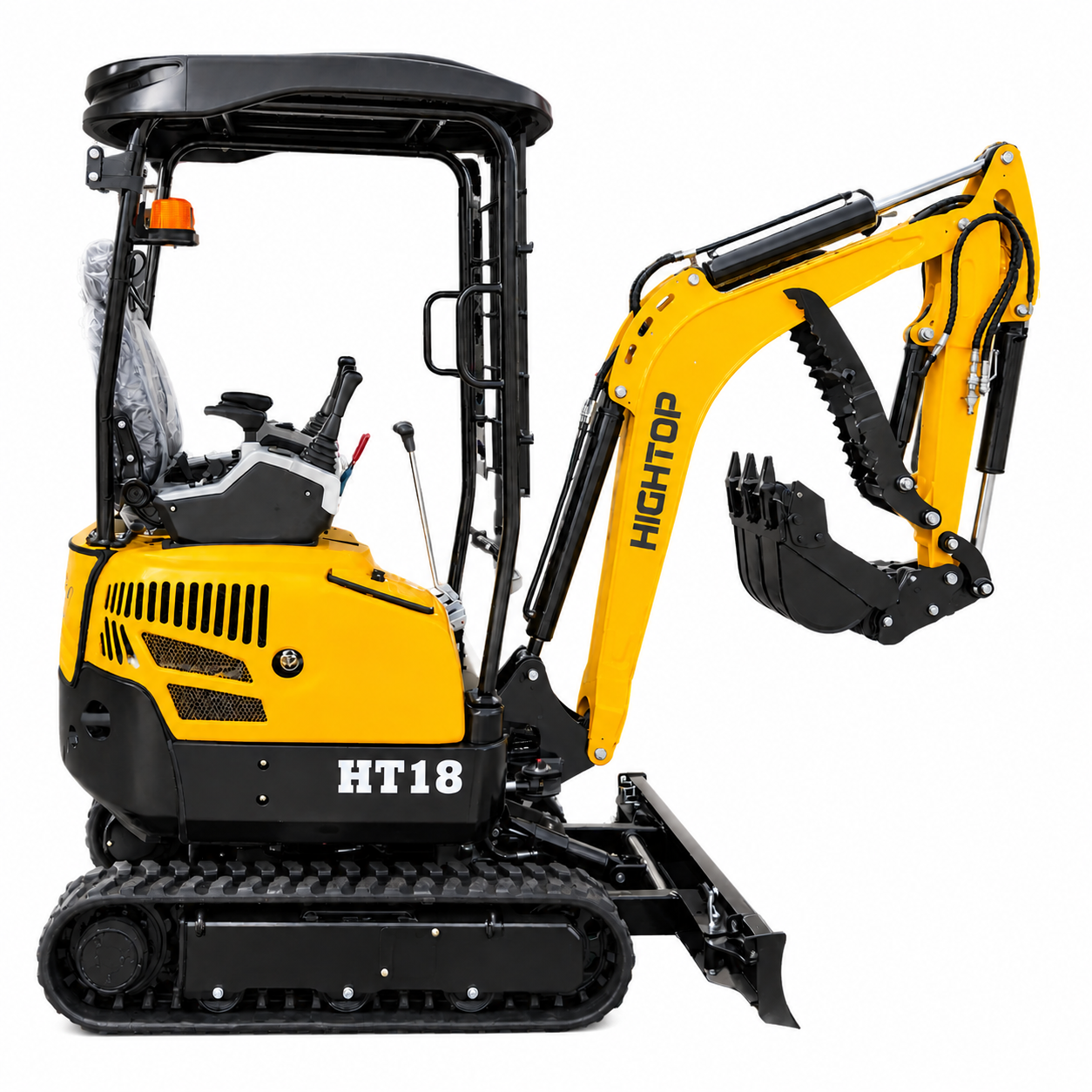

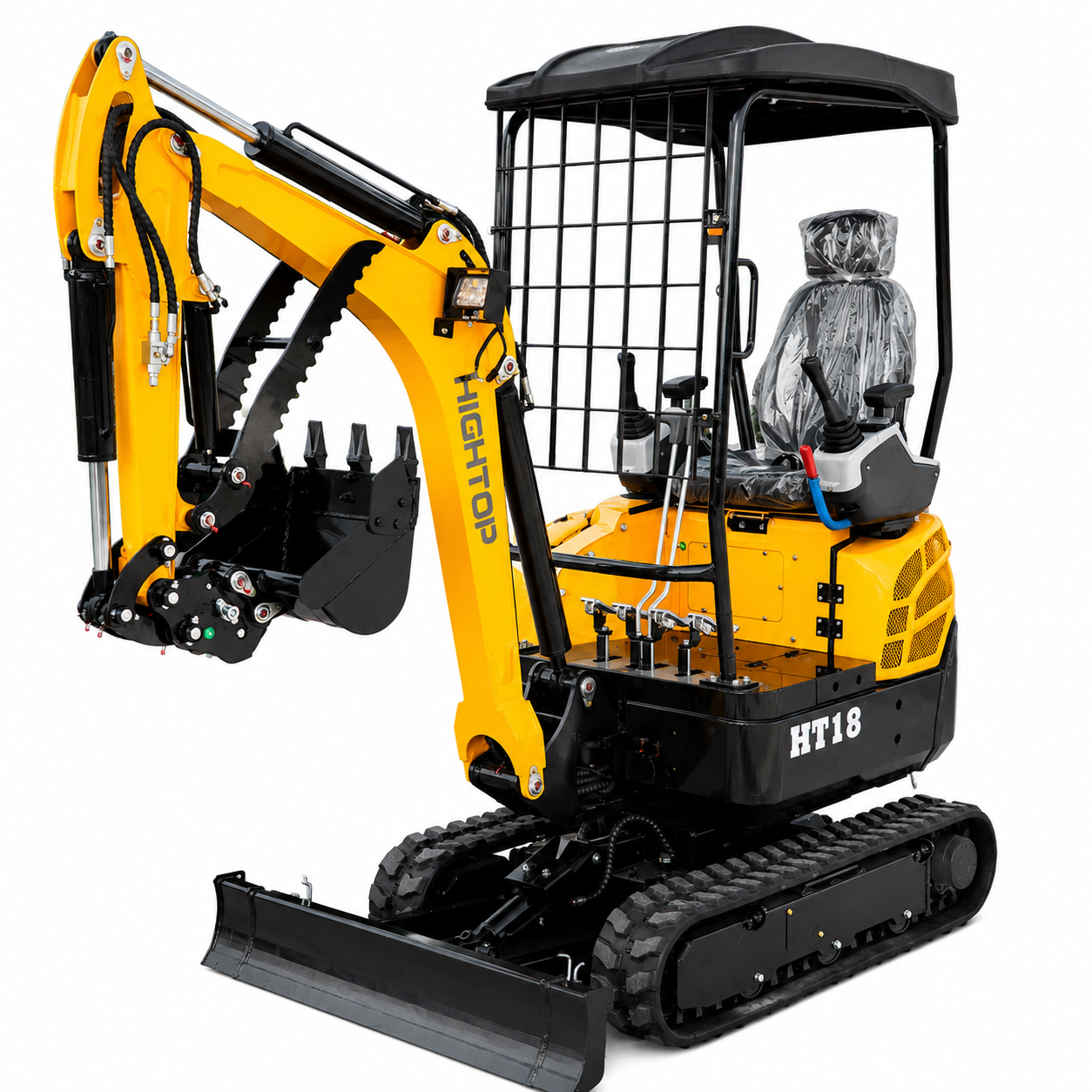

HT18-1 Mini Excavator Images
