Hightop HT18 mini excavator weighs 1425kg, powered by Kubota engine and Beifang main valve, with a 0.02m³ bucket. Max digging depth reaches 2050mm, max digging reach 3130mm, gradeability up to 30°. We
HT18 Crawler Mini Excavator Description

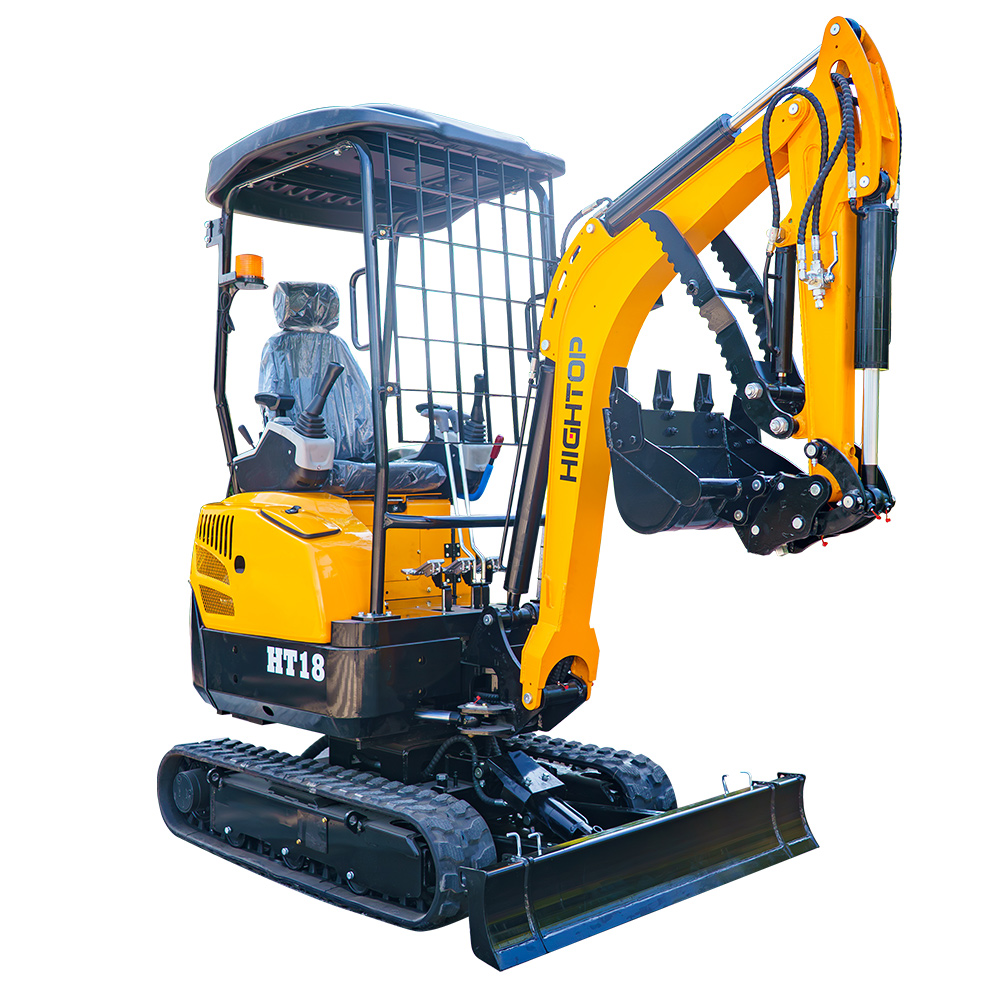

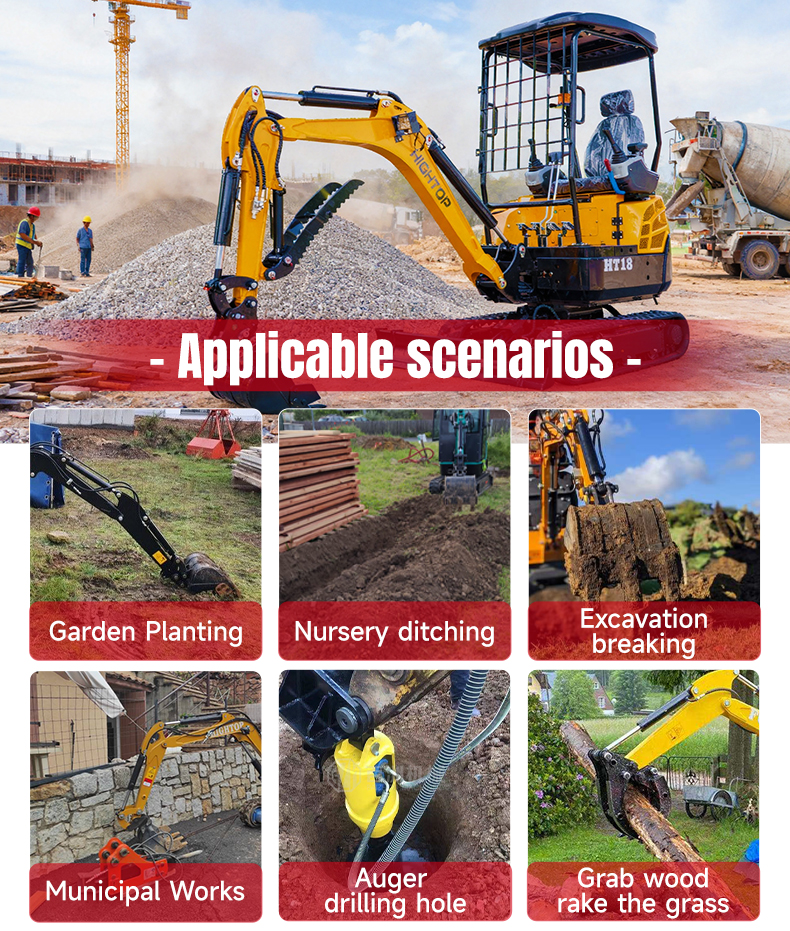

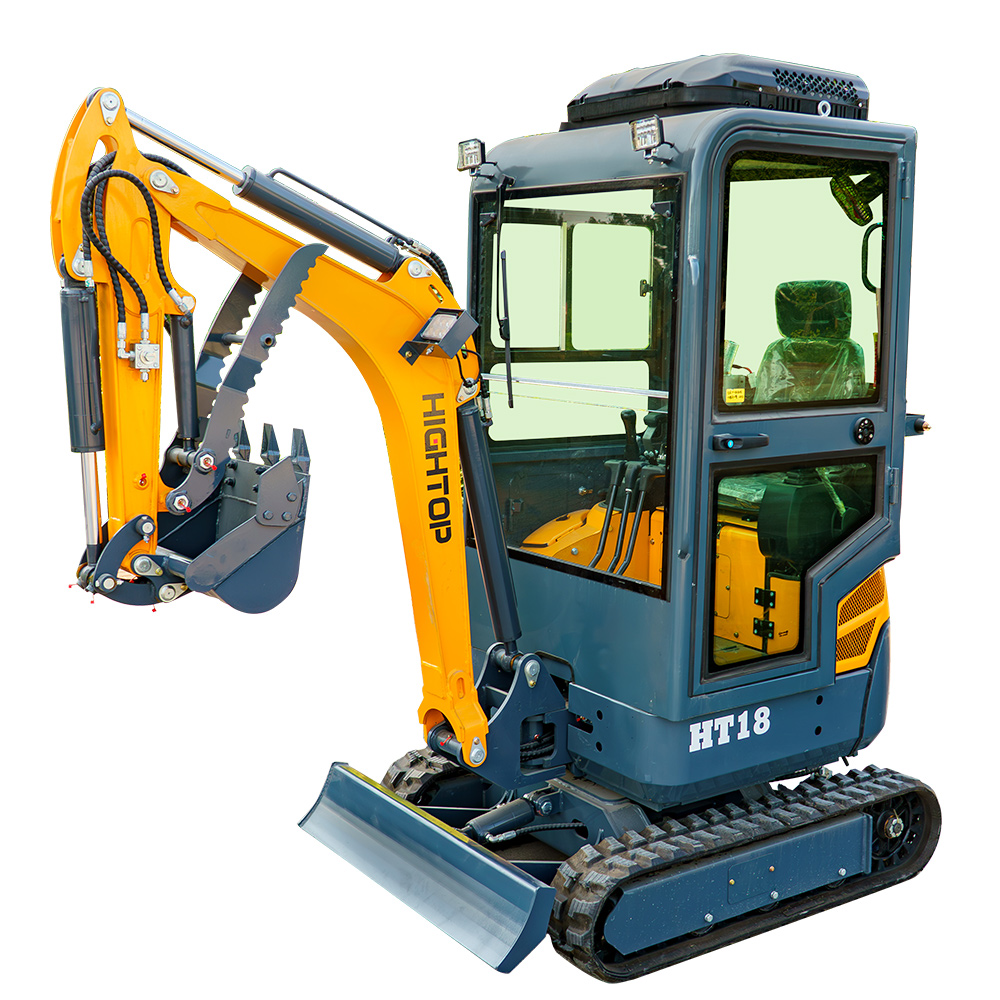

The Hightop HT18 mini excavator weighs 1425kg, powered by Kubota engine and Beifang main valve, with a 0.02m³ bucket. Max digging depth reaches 2050mm, max digging reach 3130mm, gradeability up to 30°. We supply two versions: canopy type and fully enclosed cab type. Compact body (1120mm overall width) works flexibly in narrow spaces, ideal for landscaping, farm work and small construction projects.

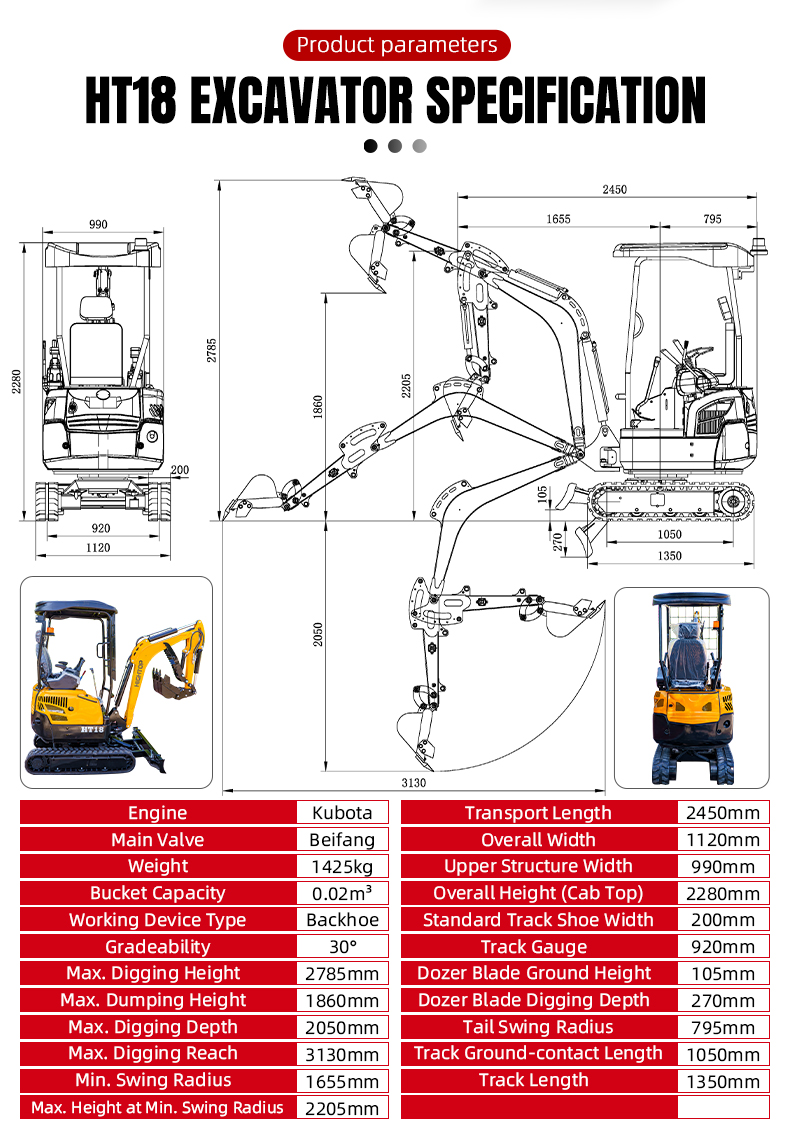

HT18 Crawler Mini Excavator Parameter
HT18 Crawler Mini Excavator Images
Engine
Kubota
Transport Length
2450mm
Main Valve
Beifang
Overall Width
1120mm
Weight
1425kg
Upper Structure Width
990mm
Bucket Capacity
0.02m³
Overall Height (Cab Top)
2280mm
Working Device Type
Backhoe
Standard Track Shoe Width
200mm
Gradeability
30°
Track Gauge
920mm
Max. Digging Height
2785mm
Dozer Blade Ground Height
105mm
Max. Dumping Height
1860mm
Dozer Blade Digging Depth
270mm
Max. Digging Depth
2050mm
Tail Swing Radius
795mm
Max. Digging Reach
3130mm
Track Ground-contact Length
1050mm
Min. Swing Radius
1655mm
Track Length
1350mm
Max. Height at Min. Swing Radius
2205mm
