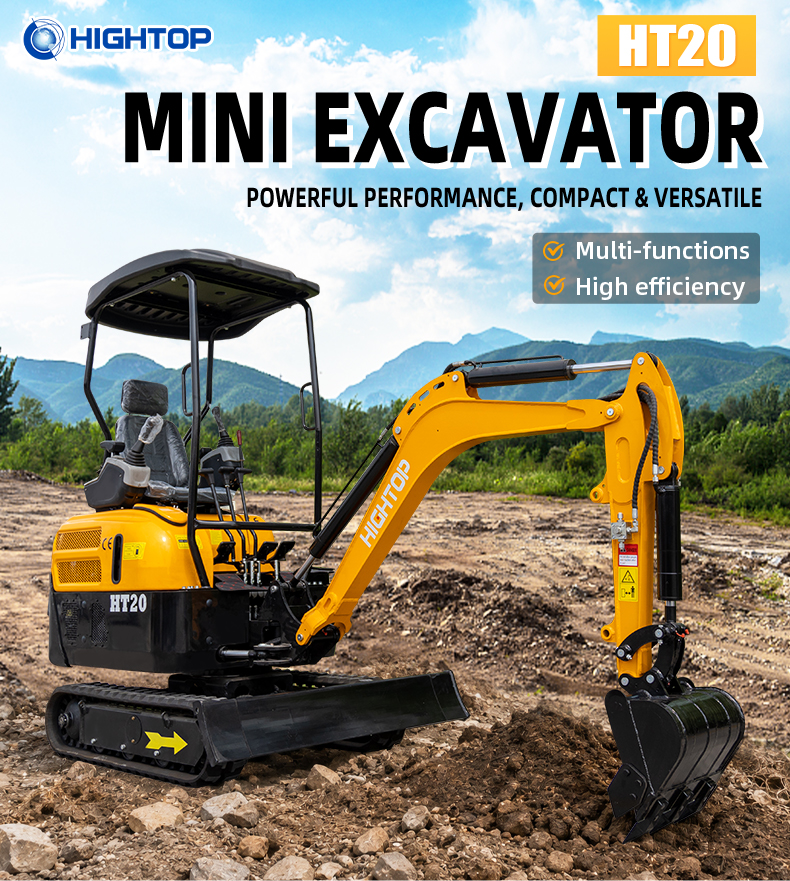

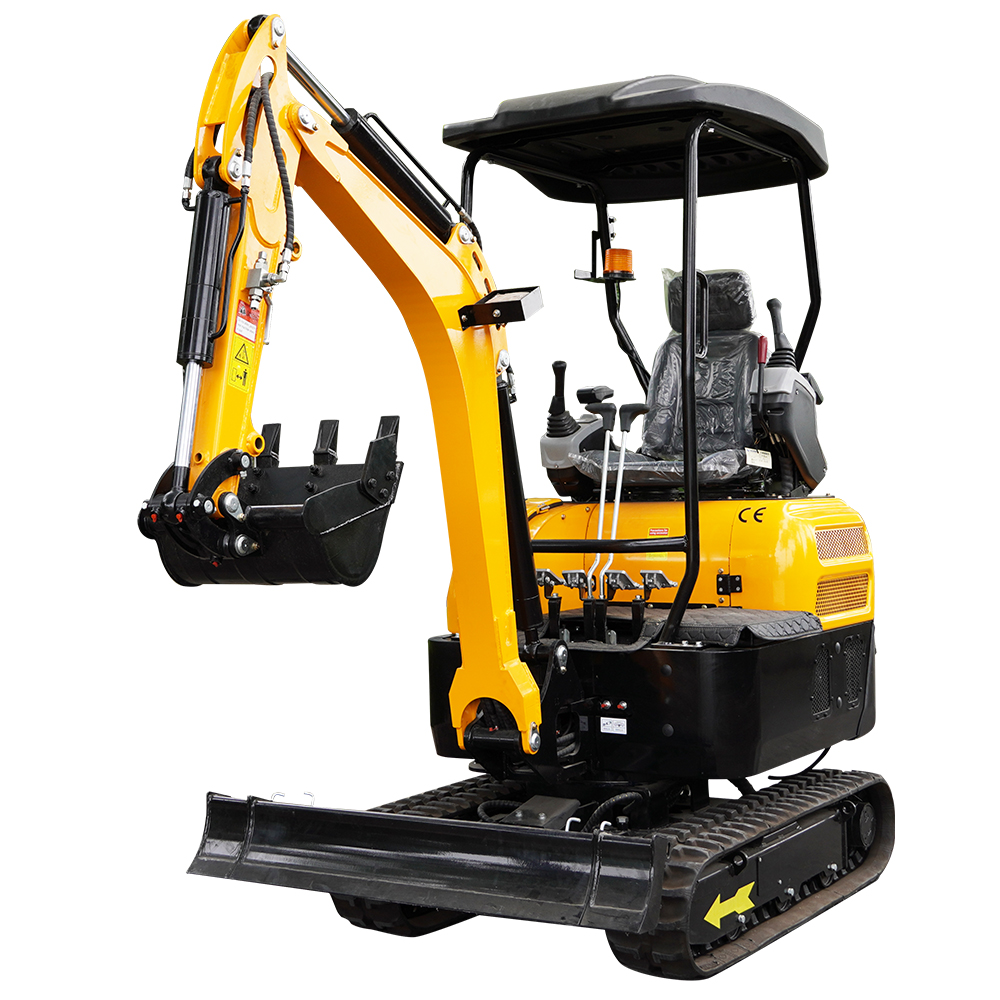

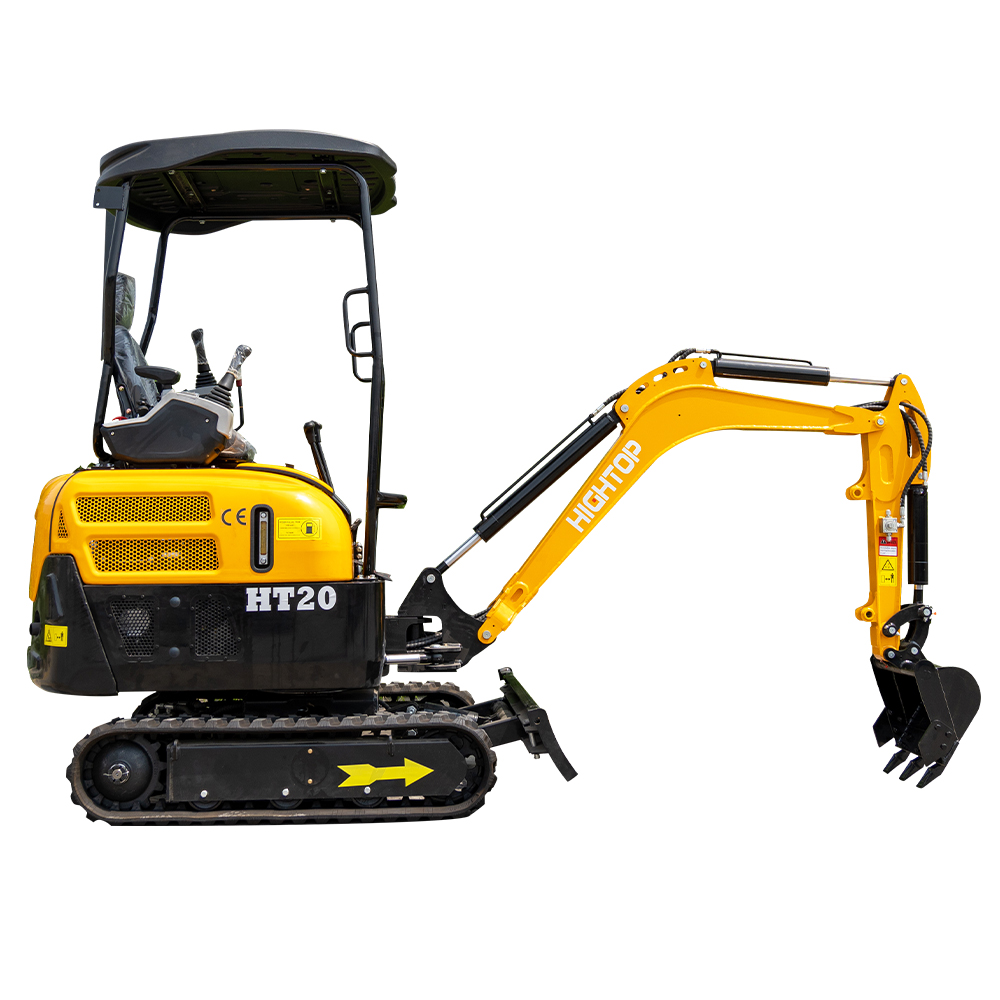

HT20  Mini Excavator Description

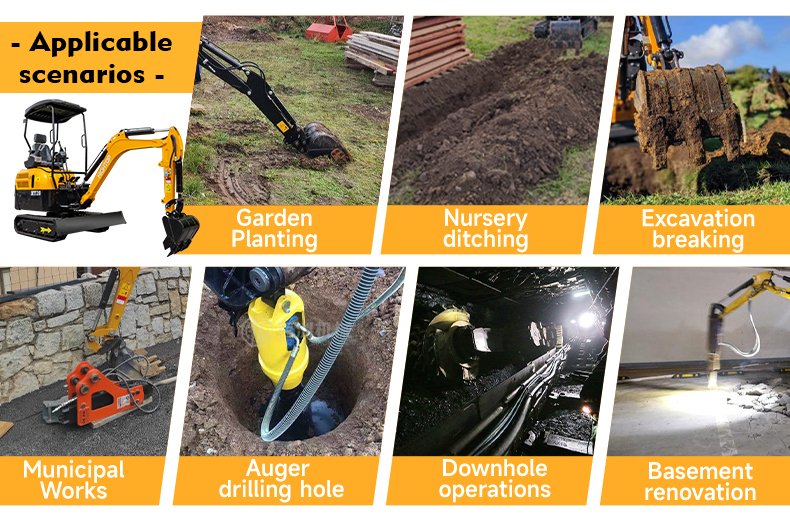

HT20 compact mini excavator is a multi-functional tracked digger suitable for landscaping, farm work, municipal repair, orchard excavation and small construction projects.

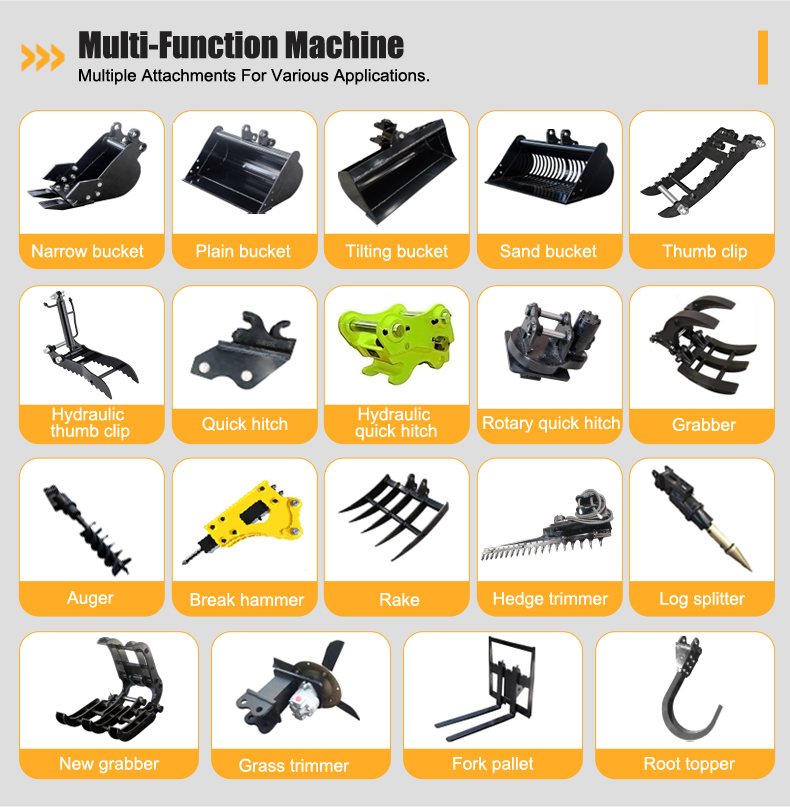

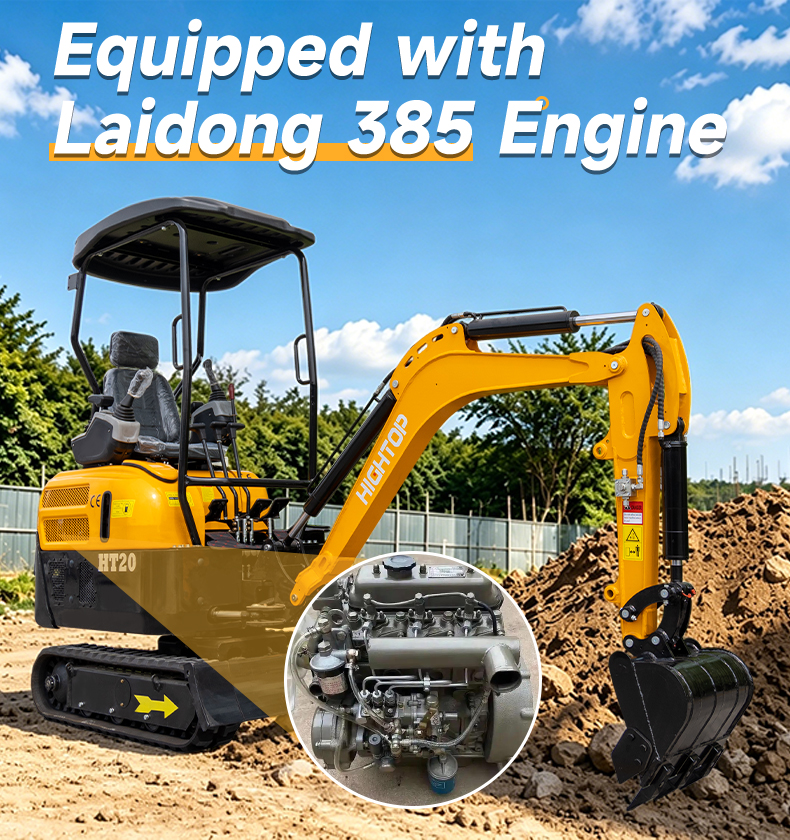

It adopts Laidong385 3TN25 Beifang engine with 19KW rated power. Working weight is 2000KG, standard bucket capacity 0.02m³, climbing capacity up to 30°. Compact overall width of 1100mm and short transport length of 2597mm make it convenient for transportation and operation in narrow spaces. Max digging depth reaches 2060mm. Small tail swing design improves flexibility in confined working areas. Multiple optional attachments are available. Different configurations can be customized to meet your construction demands.

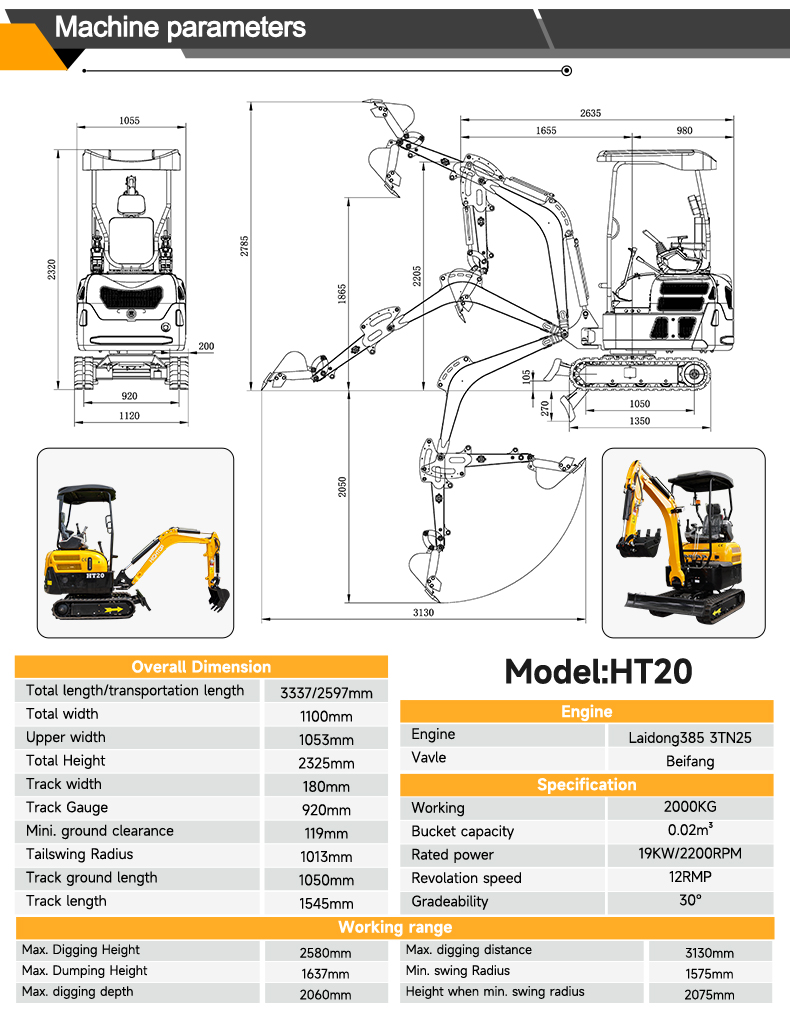

HT20  Mini Excavator Parameter

Item	Parameter
Total length/transportation length	3337/2597mm
Total width	1100mm
Upper width	1053mm
Total Height	2325mm
Track width	180mm
Track Gauge	920mm
Mini. ground clearance	119mm
Tailswing Radius	1013mm
Track ground length	1050mm
Track length	1545mm
Max. Digging Height	2580mm
Max. Dumping Height	1637mm
Max. digging depth	2060mm
Max. digging distance	3130mm
Min. swing Radius	1575mm
Height when min. swing radius	2075mm
Engine	Laidong385 3TN25
Valve	Beifang
Working weight	2000KG
Bucket capacity	0.02m
Rated power	19KW/2200RPM
Revolution speed	12RPM
Gradeability	30

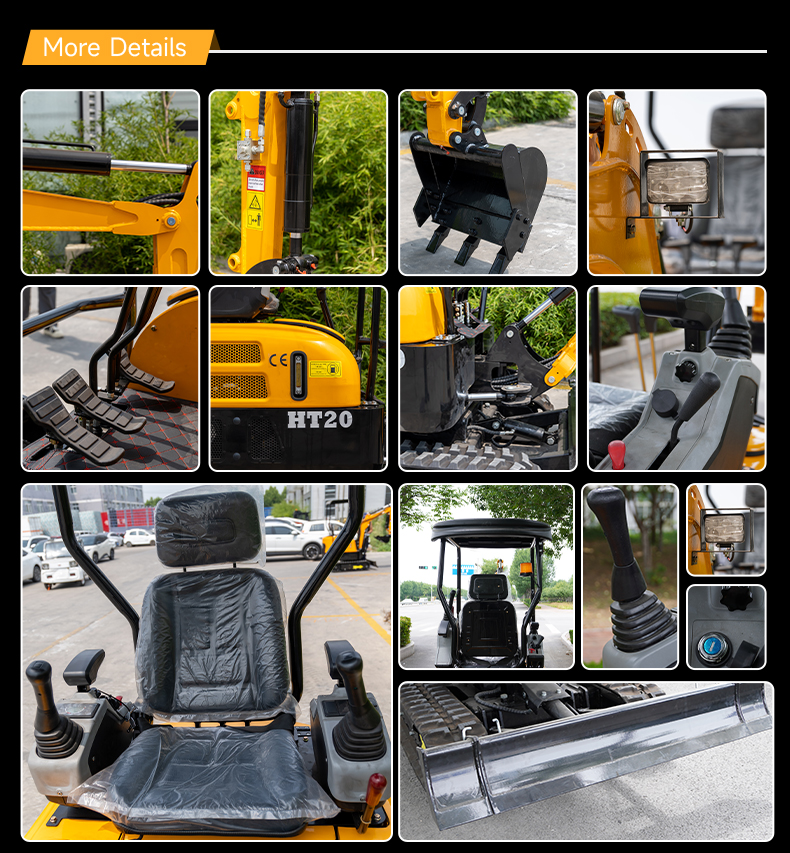

HT20  Mini Excavator Images
