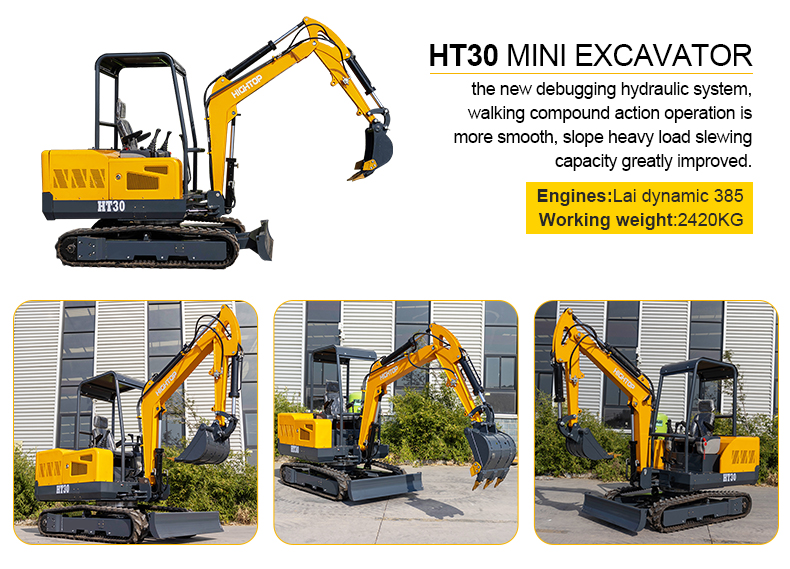

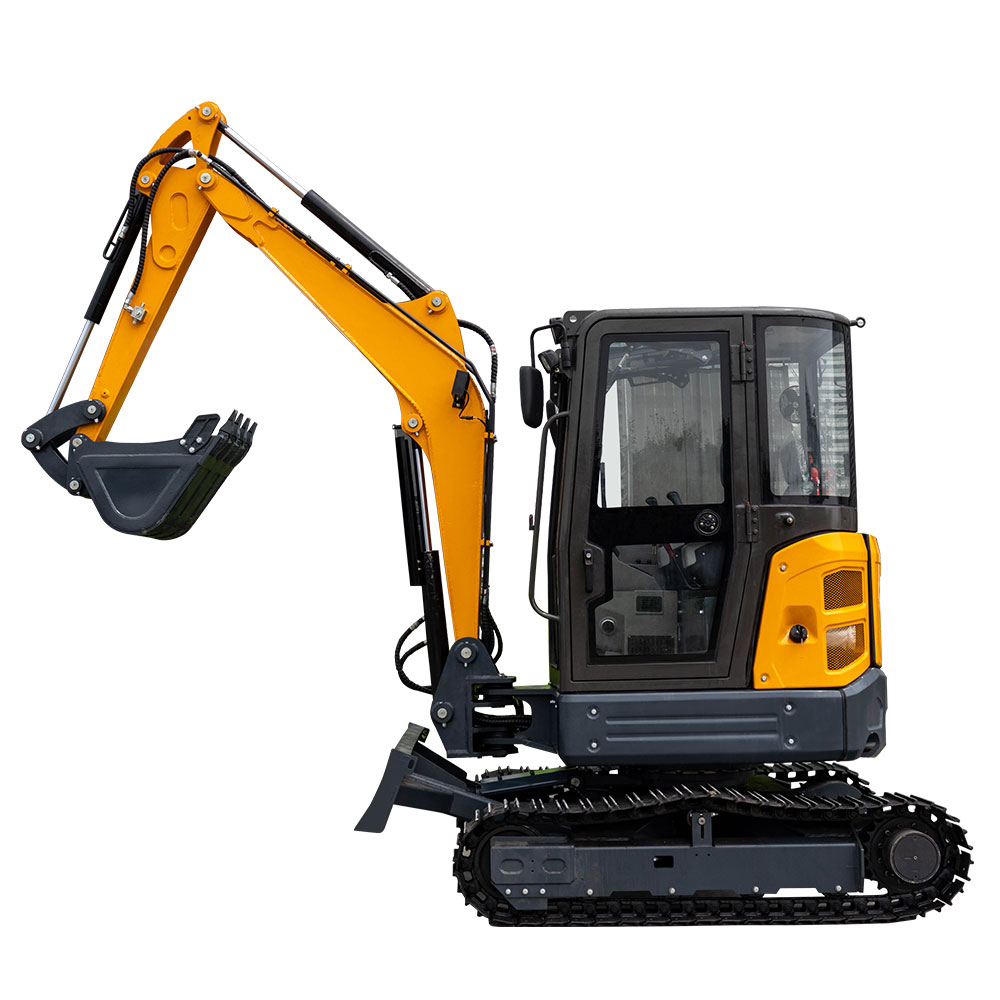

HT30 Mini Excavator the new debugging hydraulic system, walking compound action operation is more smooth, slope heavy load slewing capacity greatly improved.

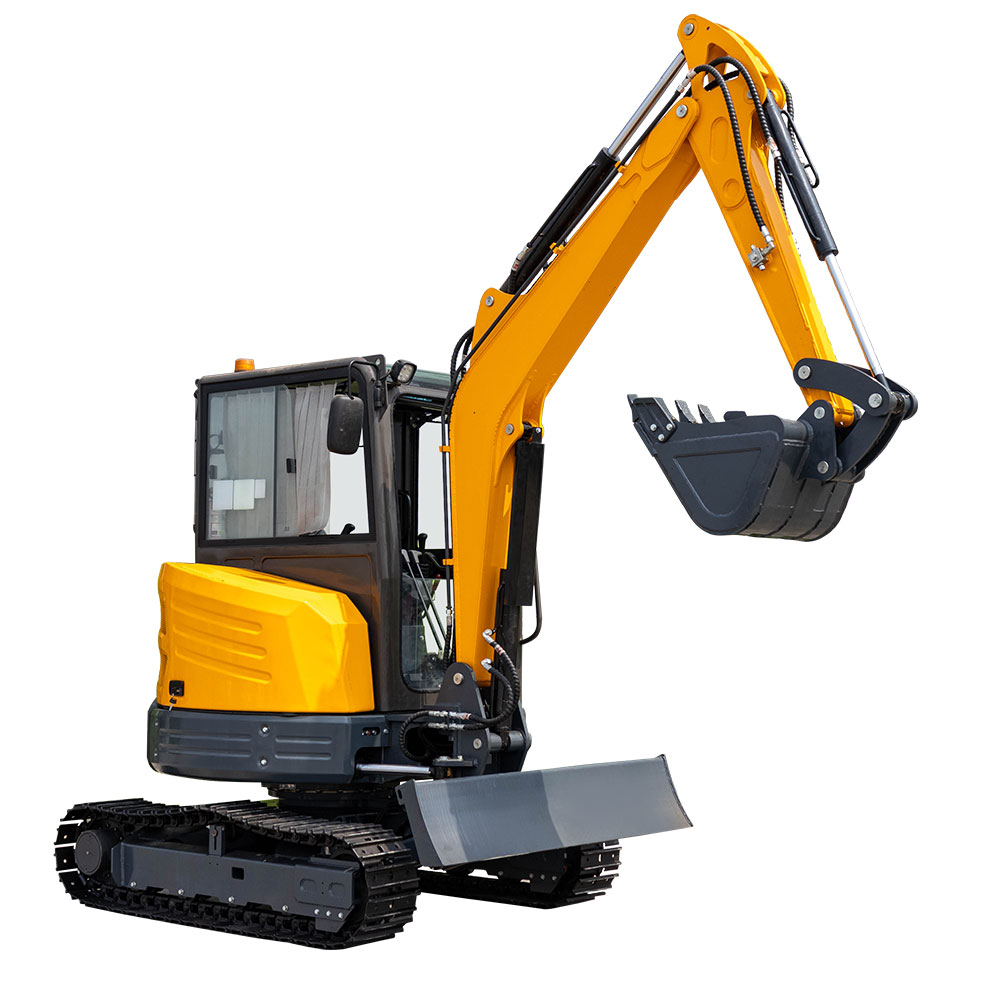

HT30 Mini Excavator Description
HT30 Mini Excavator the new debugging hydraulic system, walking compound action operation is more smooth, slope heavy load slewing capacity greatly improved.

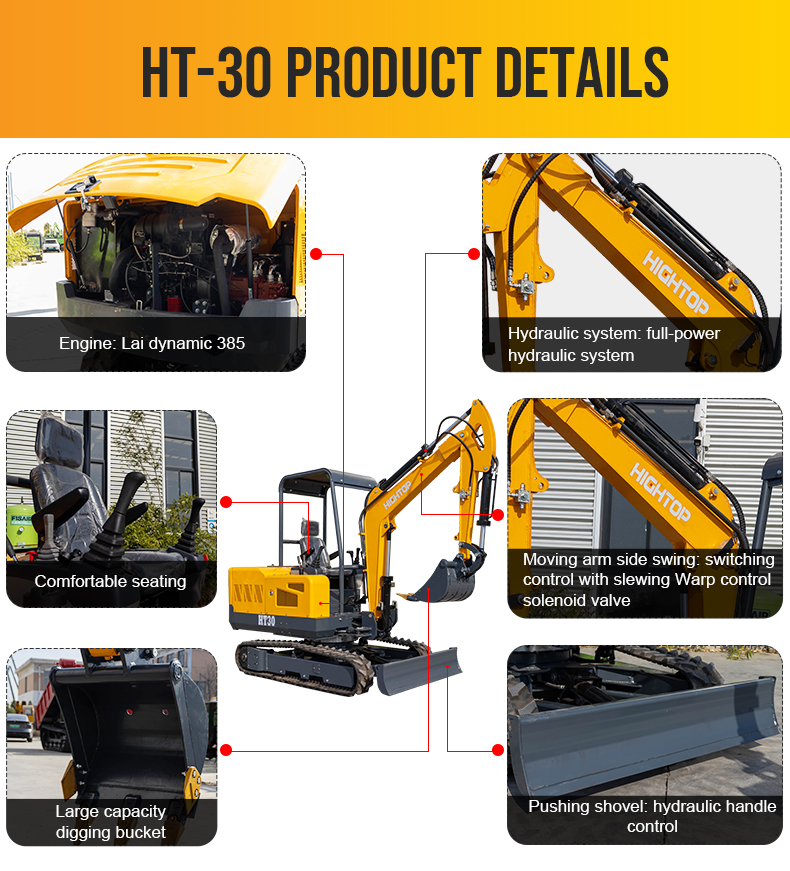

Engines:Lai dynamic 385
Working weight:2420KG

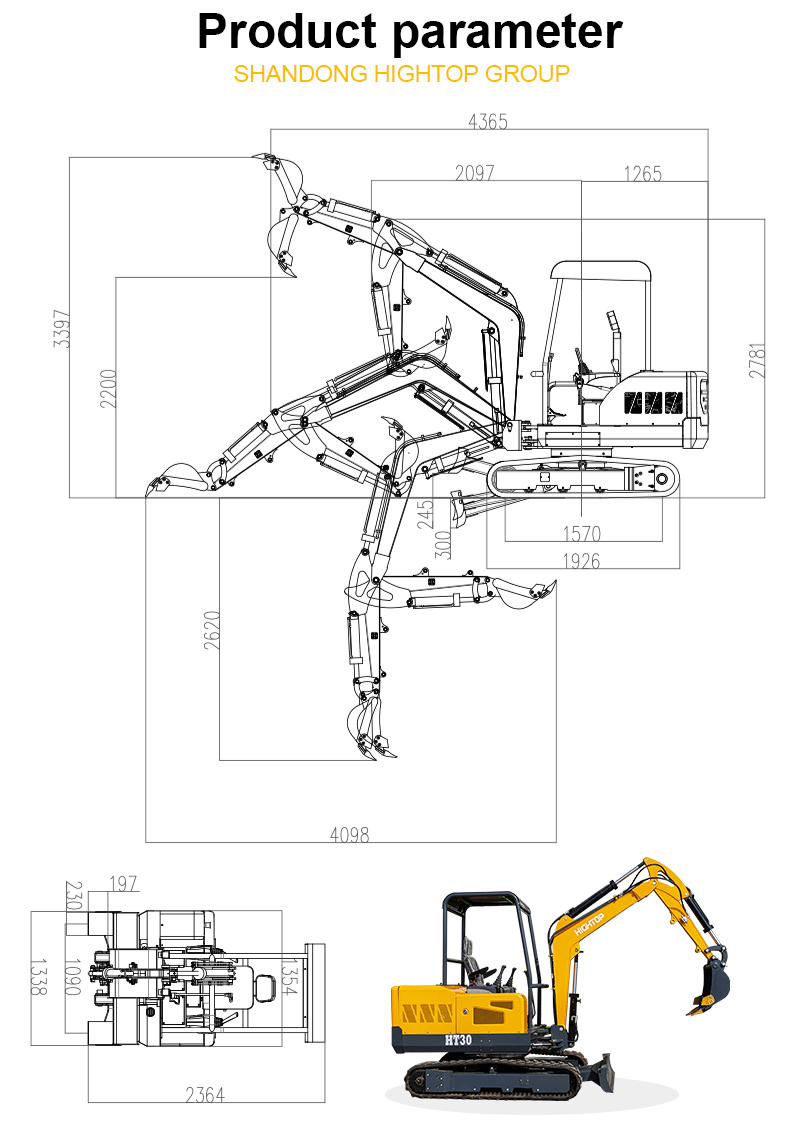

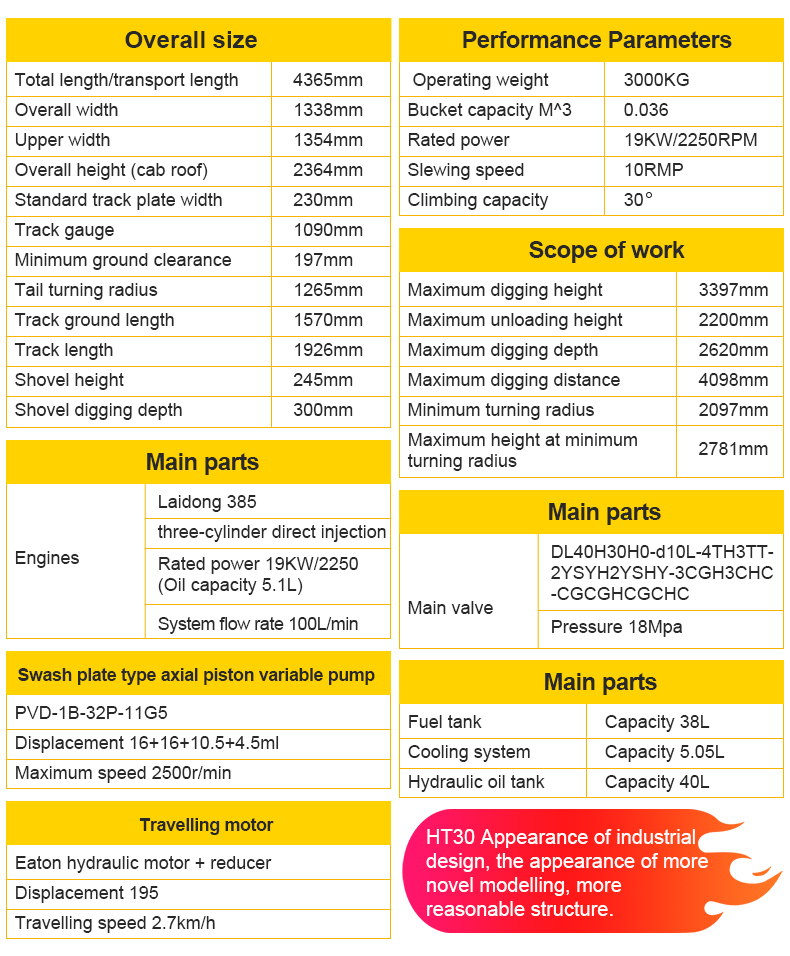

HT30 Mini Excavator Parameter
| Overall width | 1338mm |
| Upper width | 1354mm |
| Overall height (cab roof) | 2364mm |
| Standard track plate width | 230mm |
| Track gauge | 1090mm |
| Minimum ground clearance | 197mm |
| Tail turning radius | 1265mm |
| Track ground length | 1570mm |
| Track length | 1926mm |
| Shovel height | 245mm |
| Shovel digging depth | 300mm |
| Performance Parameters | - |
| Operating weight | 3000KG |
| Bucket capacity | 0.036 M³ |

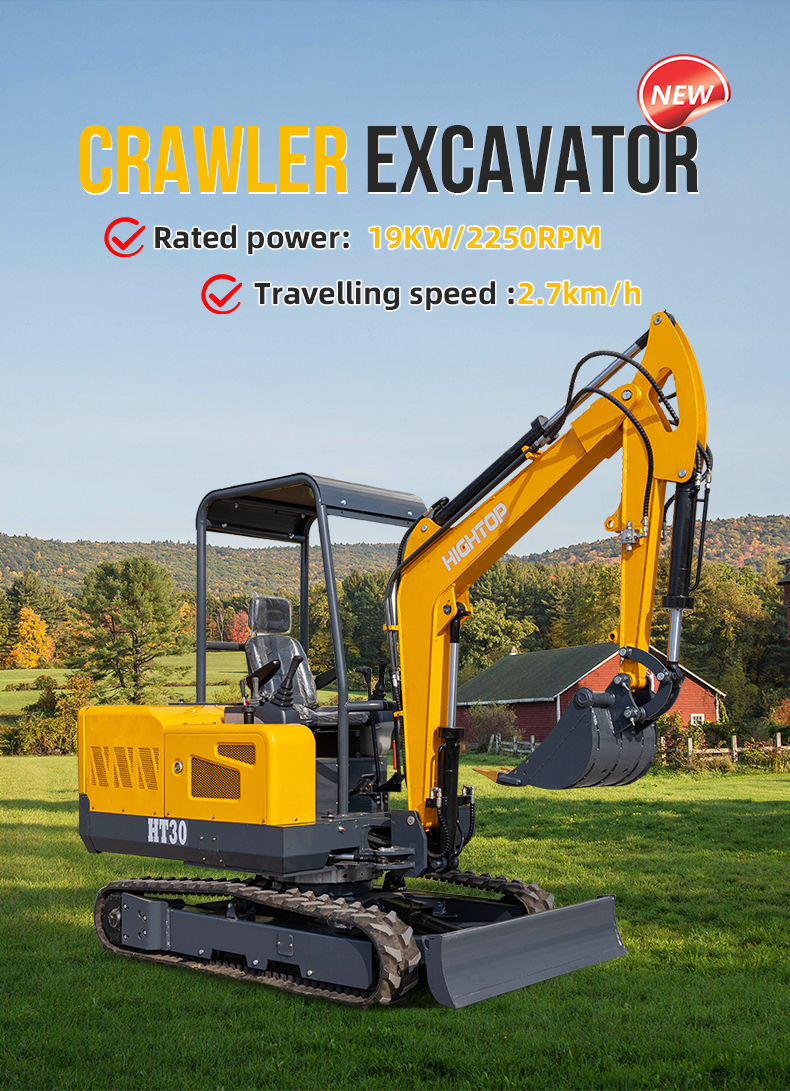

| Rated power | 19KW/2250RPM |
| Slewing speed | 10RMP |
| Climbing capacity | 30° |
| Maximum digging height | 3397mm |
| Maximum unloading height | 2200mm |
| Maximum digging depth | 2620mm |
| Maximum digging distance | 4098mm |
| Minimum turning radius | 2097mm |
| Maximum height at minimum turning radius | 2781mm |
| Engines | Laidong 385 |
| Engine Type | 三缸直喷（three-cylinder direct injection） |
| Rated power/Oil capacity | 19KW/2250RPM，机油容量 5.1L |
| System flow rate | 100L/min |
| Main valve | DL40H30H0-d10L-4TH3TT-2YSYH2YSHY-3CGH3CHC-CGCGHCGCHC |
| Pressure | 18Mpa |

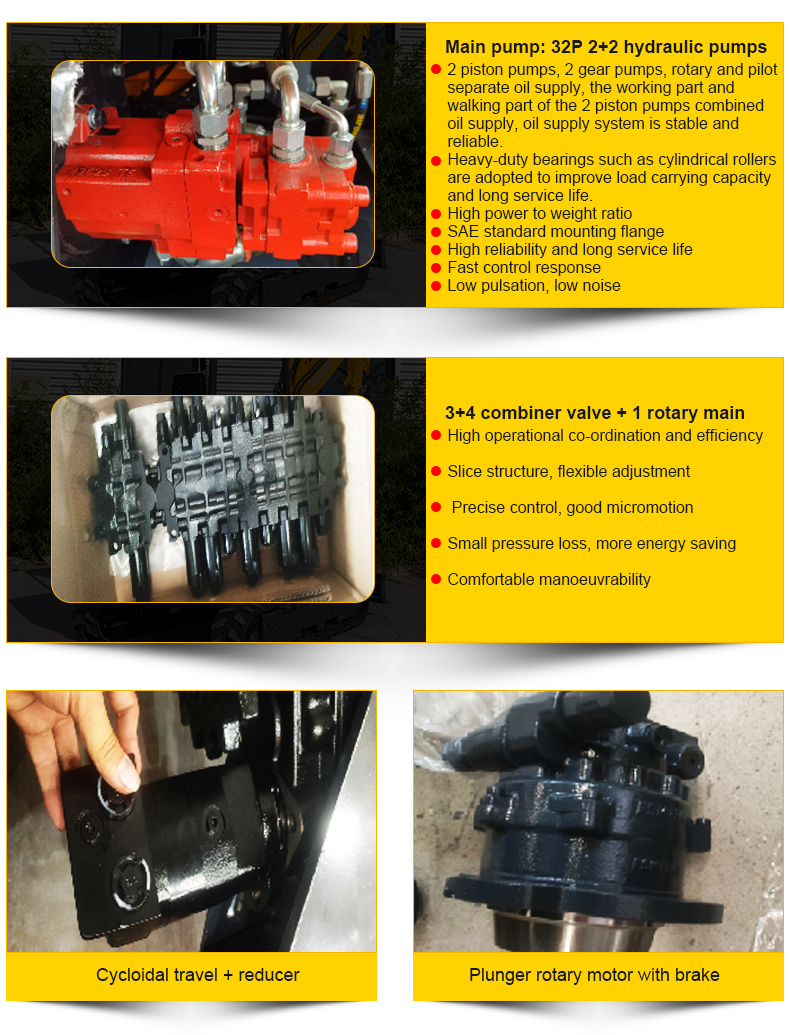

| Swash plate type axial piston variable pump | - |
| Pump Model | PVD-1B-32P-11G5 |
| Displacement | 16+16+10.5+4.5ml |
| Maximum speed | 2500r/min |
| Travelling motor | - |
| Motor type | Eaton hydraulic motor + reducer |
| Displacement | 195 |
| Travelling speed | 2.7km/h |
| Main parts (Fuel & Cooling System) | - |
| Fuel tank | 38L |
| Cooling system | 5.05L |
| Hydraulic oil tank | 40L |

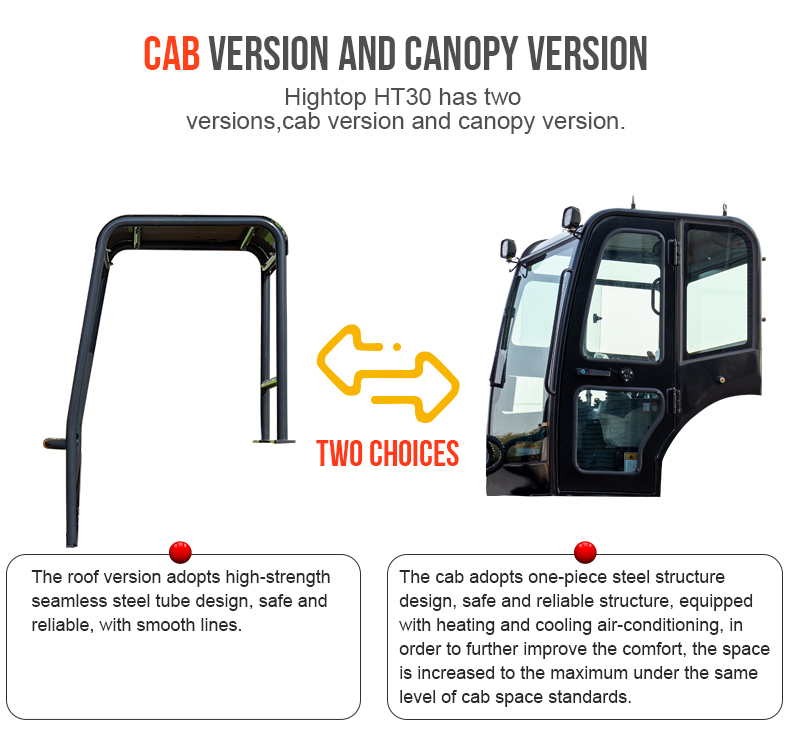

| Appearance Design Description | （HT30 Appearance of industrial design, the appearance of more novel modelling, more reasonable structure.） |
