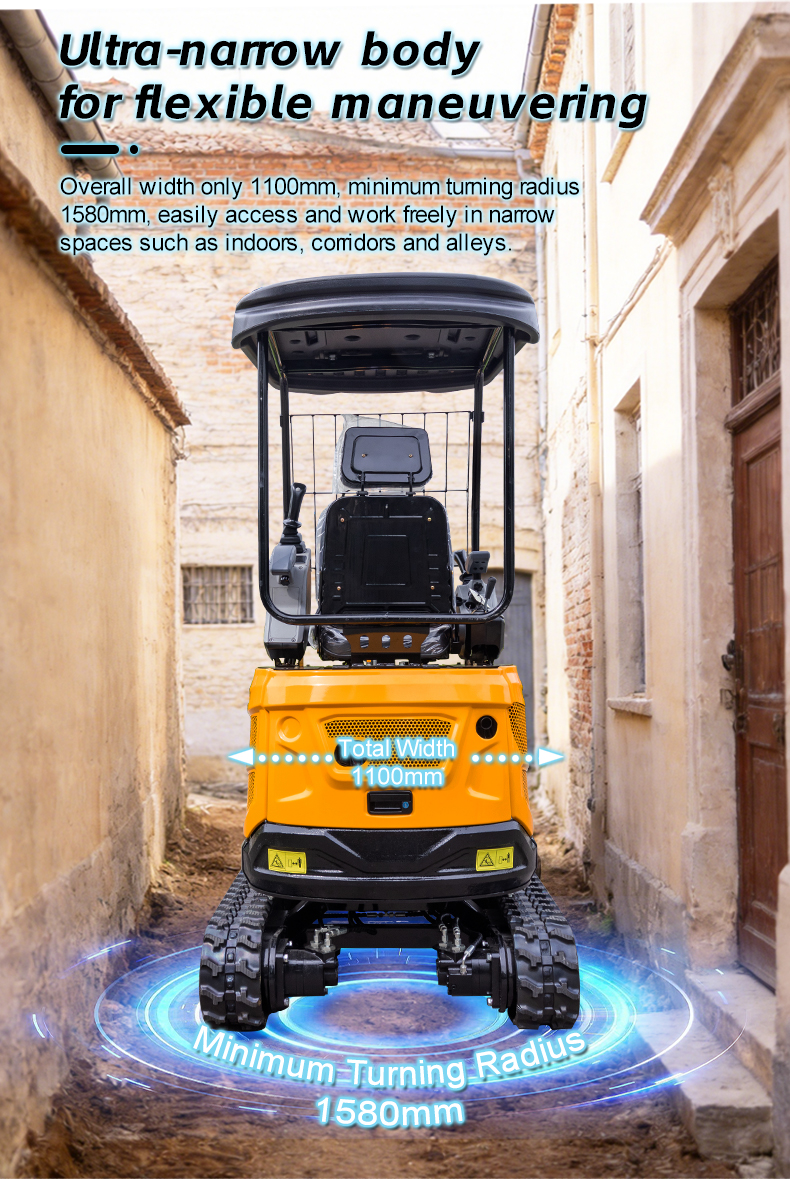

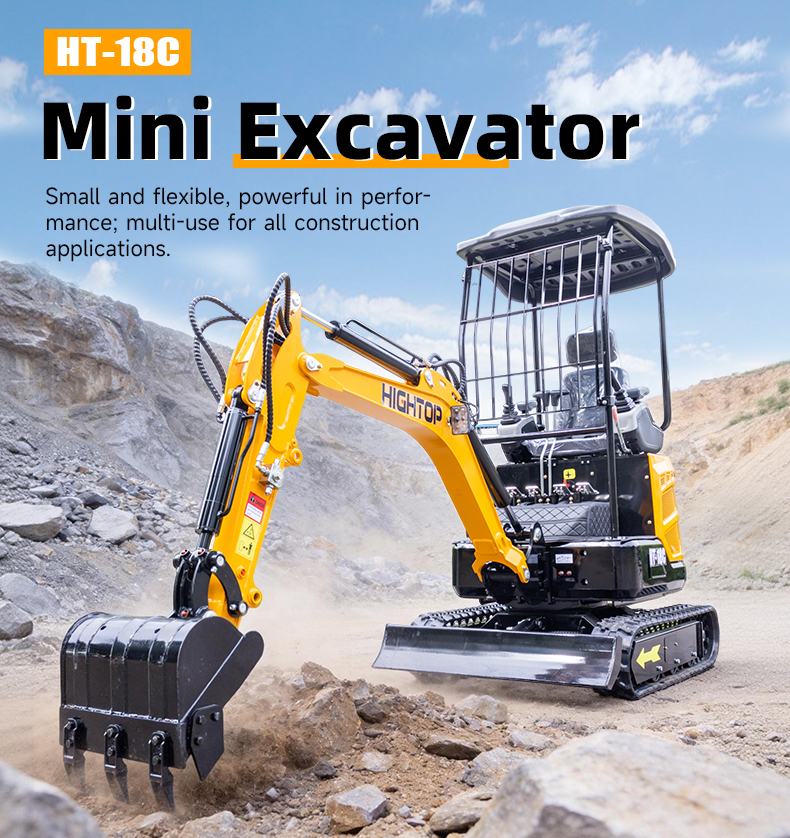

HT18C Mini Excavator Overall width only 1100mm, minimum turning radius 1580mm, easily access and work freely in narrow spaces such as indoors, corridors and alleys.
HT18C MiNi Excavator Description
HT18C Mini Excavator Overall width only 1100mm, minimum turning radius 1580mm, easily access and work freely in narrow spaces such as indoors, corridors and alleys.

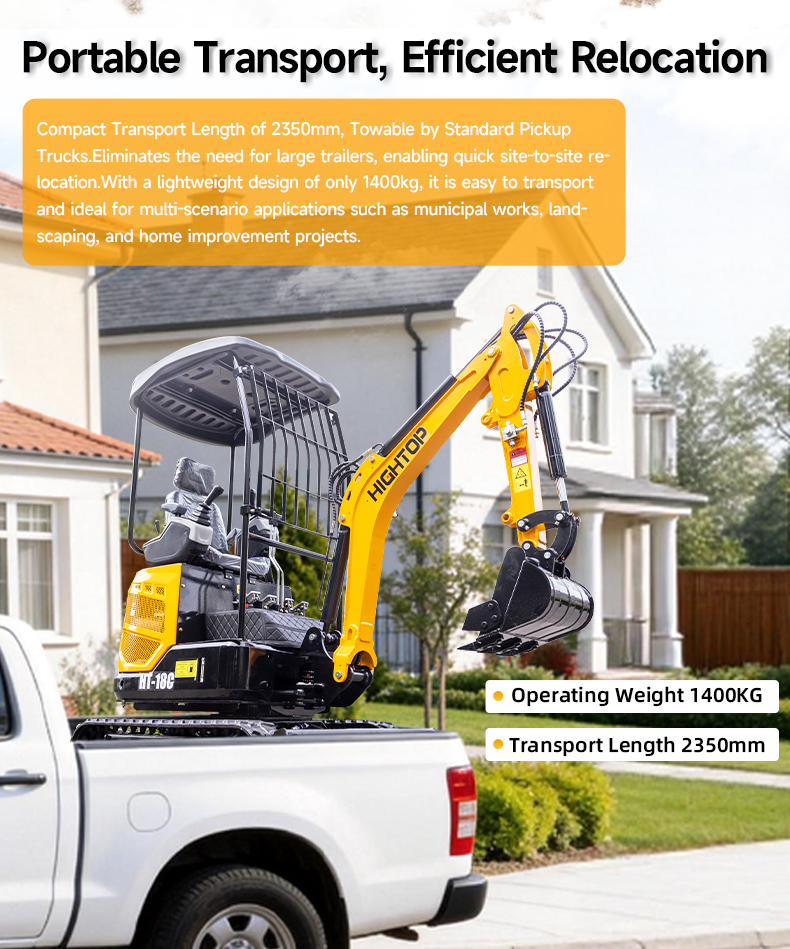

Compact Transport Length of 2350mm, Towable by Standard Pickup Trucks.Eliminates the need for large trailers, enabling quick site-to-site relocation.
With a lightweight design of only 1400kg, it is easy to transport and ideal for multi-scenario applications such as municipal works, landscaping, and home improvement projects.

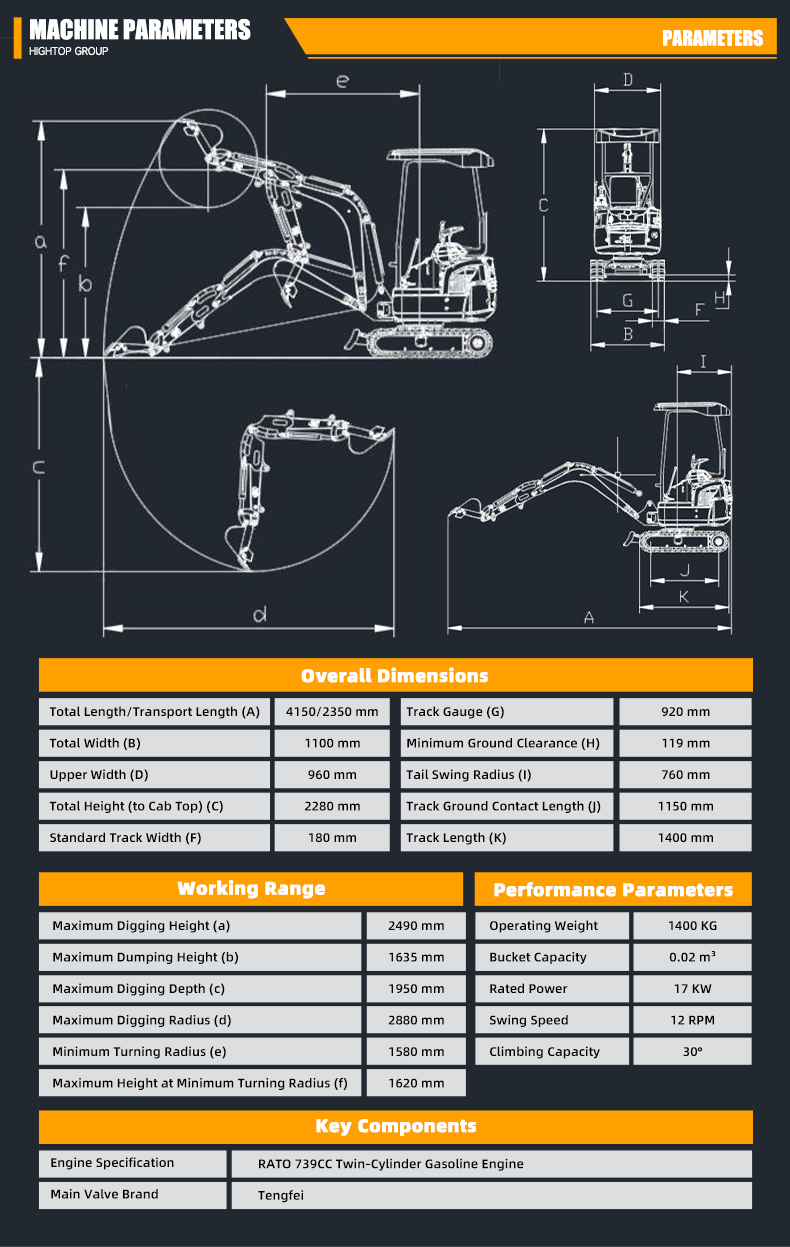

HT18C MiNi Excavator Parameter
| Total Length / Transport Length | A | 4150 / 2350 | mm | |
| Overall Width | B | 1100 | mm | |
| Upper Structure Width | D | 960 | mm | |
| Overall Height (to Cab Top) | C | 2280 | mm | |
| Standard Track Shoe Width | F | 180 | mm | |
| Track Gauge | G | 920 | mm | |
| Minimum Ground Clearance | H | 119 | mm | |
| Tail Swing Radius | I | 760 | mm | |
| Track Ground Contact Length | J | 1150 | mm | |
| Track Length | K | 1400 | mm | |
| Performance Parameters | ||||
| Operating Weight | 1000 | kg | ||
| Bucket Capacity | 0.02 | m鲁 | ||
| Rated Power | 17 | kW | ||
| Swing Speed | 12 | rpm | (Note: Corrected from RMP to standard RPM) | |

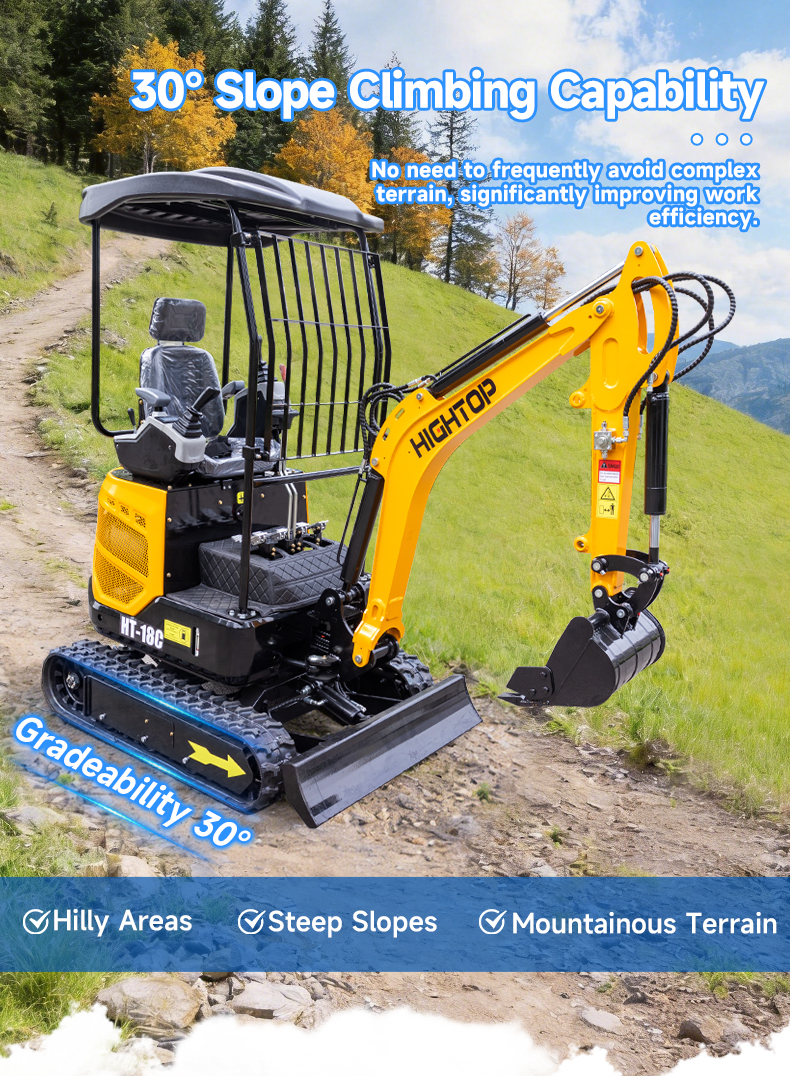

| Gradeability | 30 | degree (掳) | ||
| Working Range | ||||

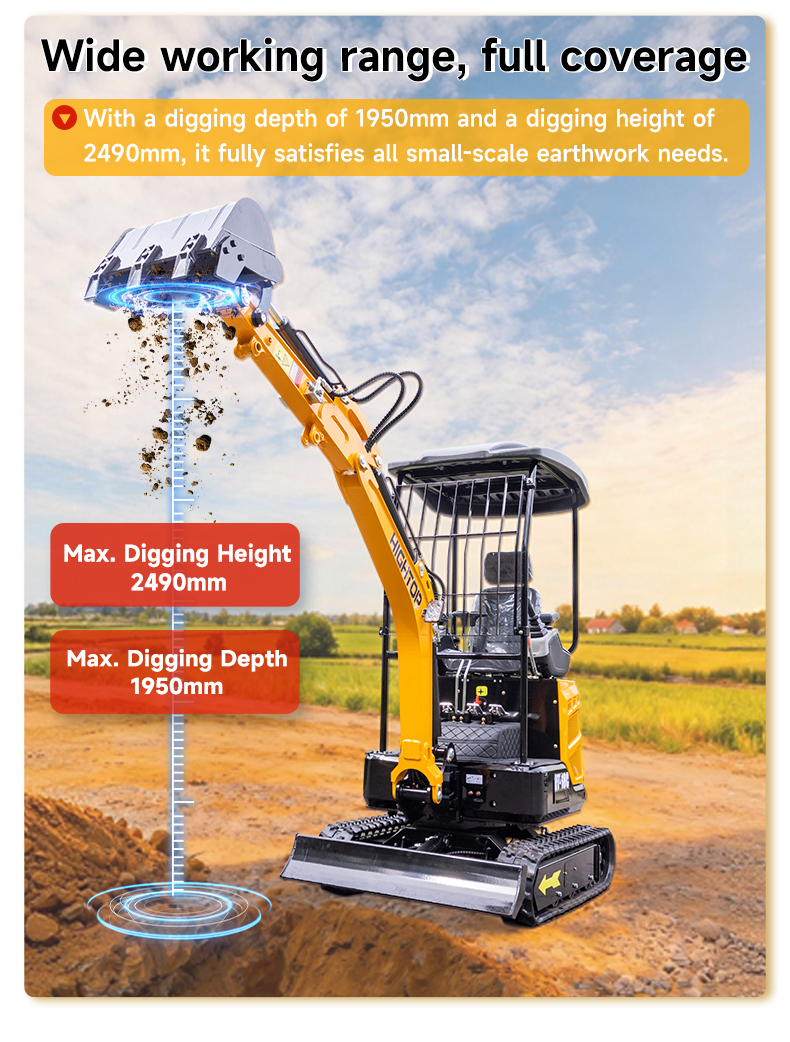

| Max. Digging Height | a | 2490 | mm | |
| Max. Dumping Height | b | 1635 | mm | |
| Max. Digging Depth | c | 1950 | mm | |
| Max. Digging Reach | d | 2880 | mm | |
| Min. Swing Radius | e | 1580 | mm | |
| Max. Height at Min. Swing Radius | f | 1620 | mm | |
| Major Components | ||||

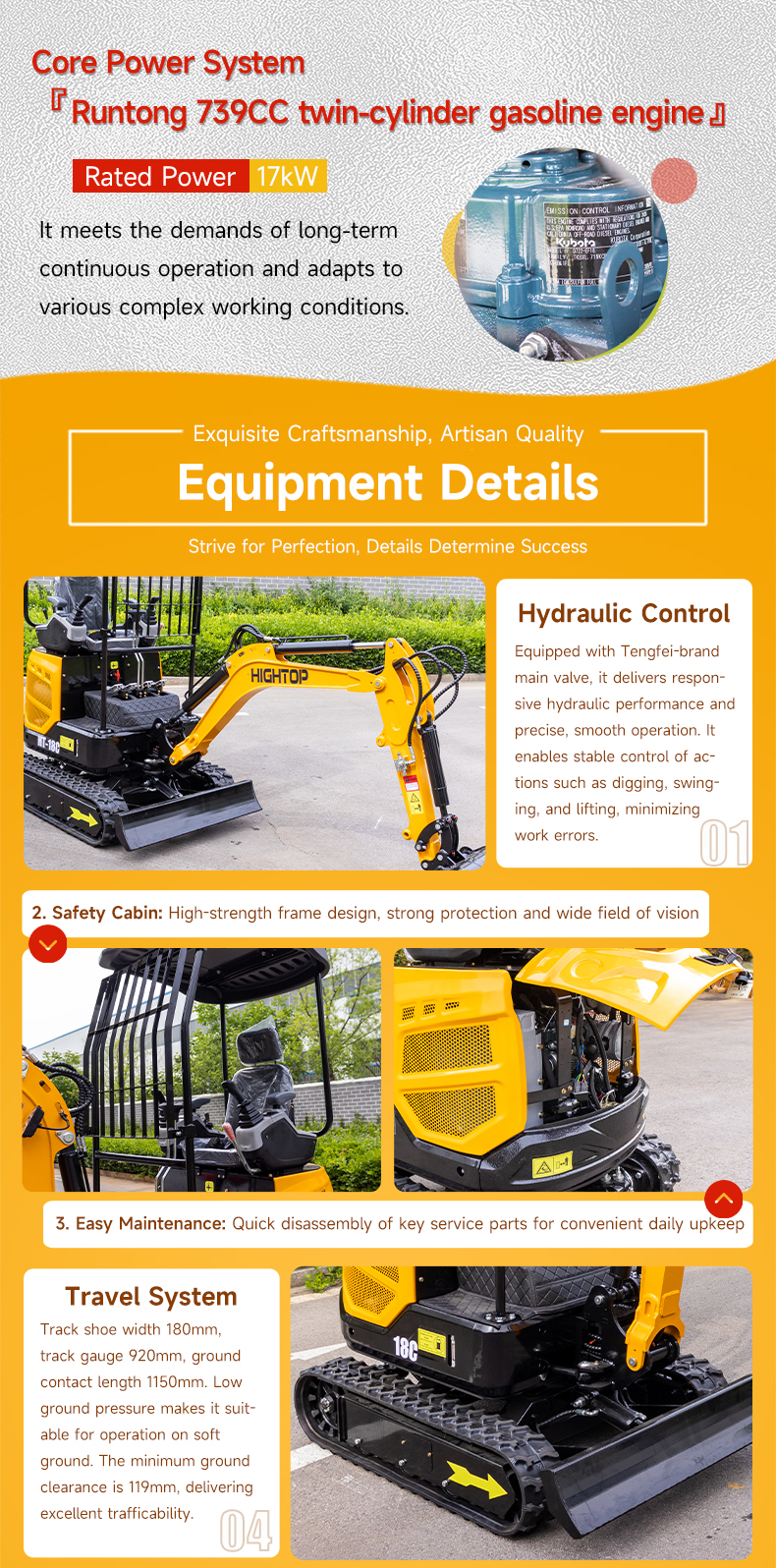

| Engine Specification | Runtong 739CC | Twin-cylinder Gasoline Engine | ||
| Main Valve Brand | Tengfei |
