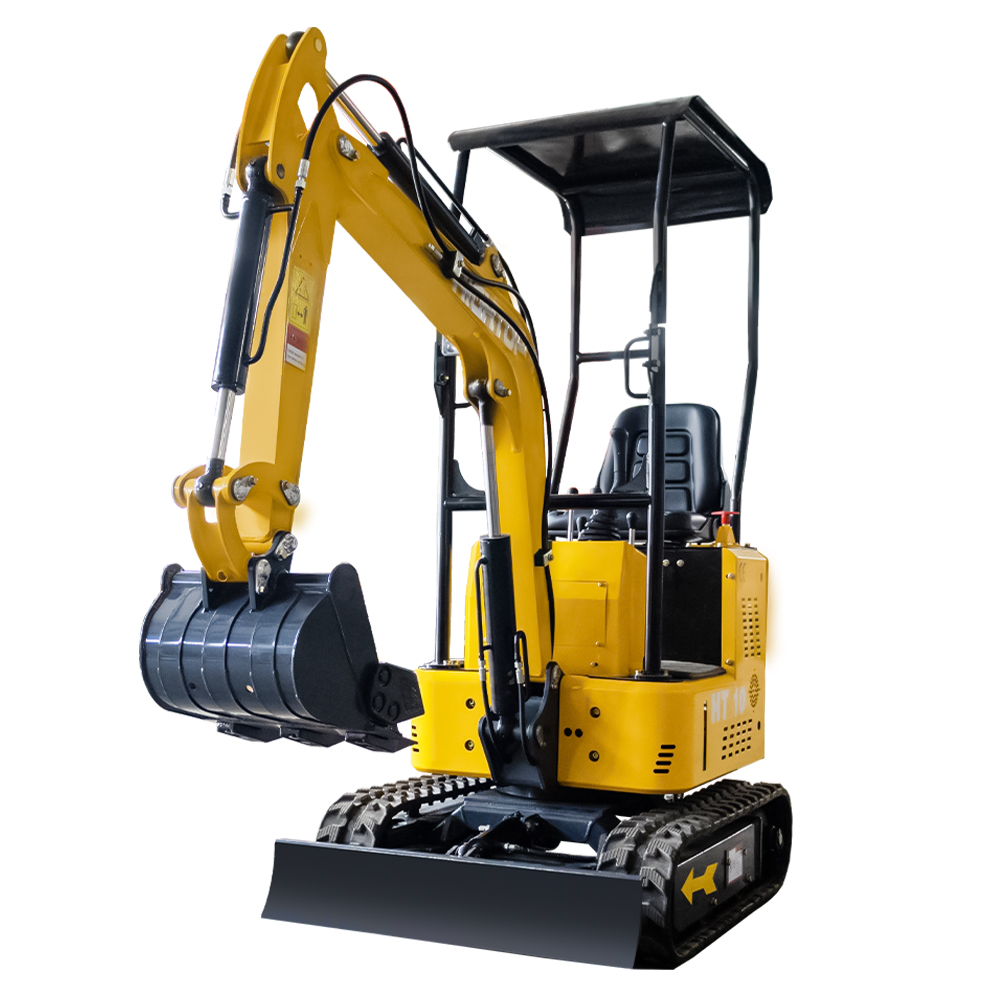

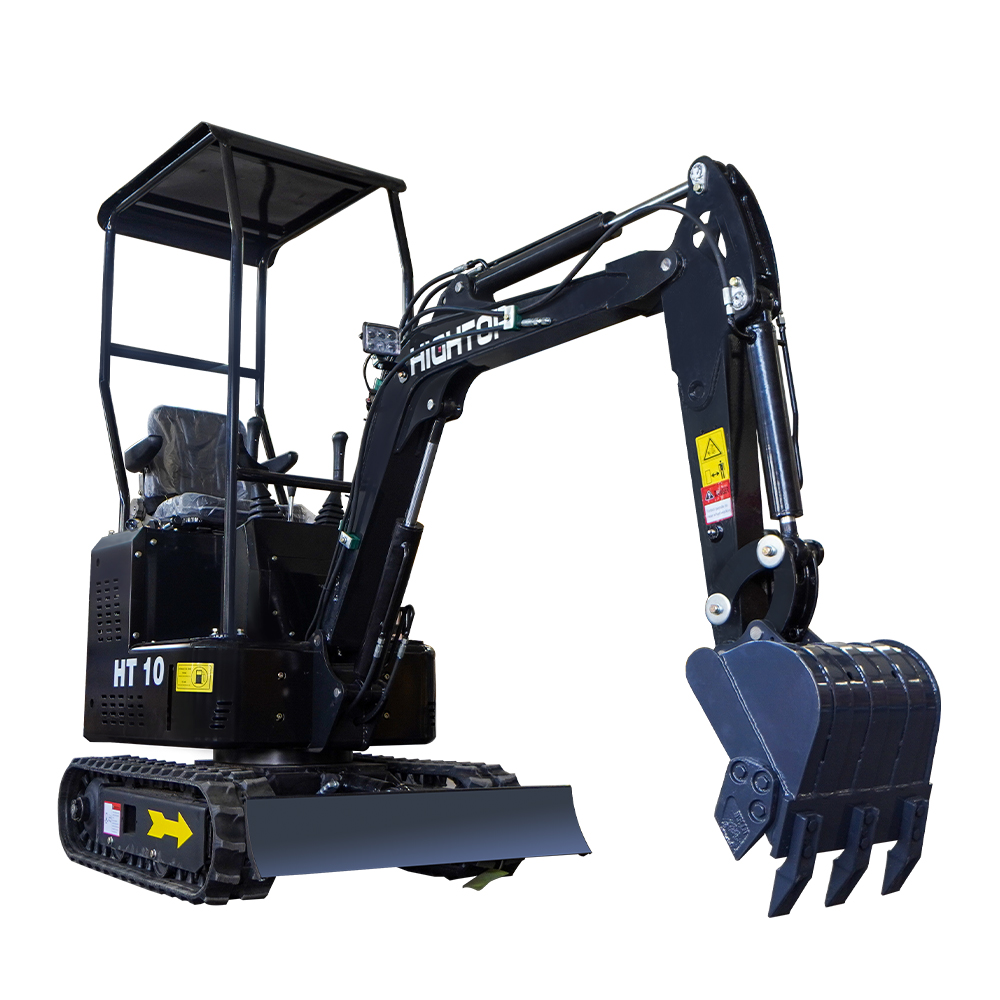

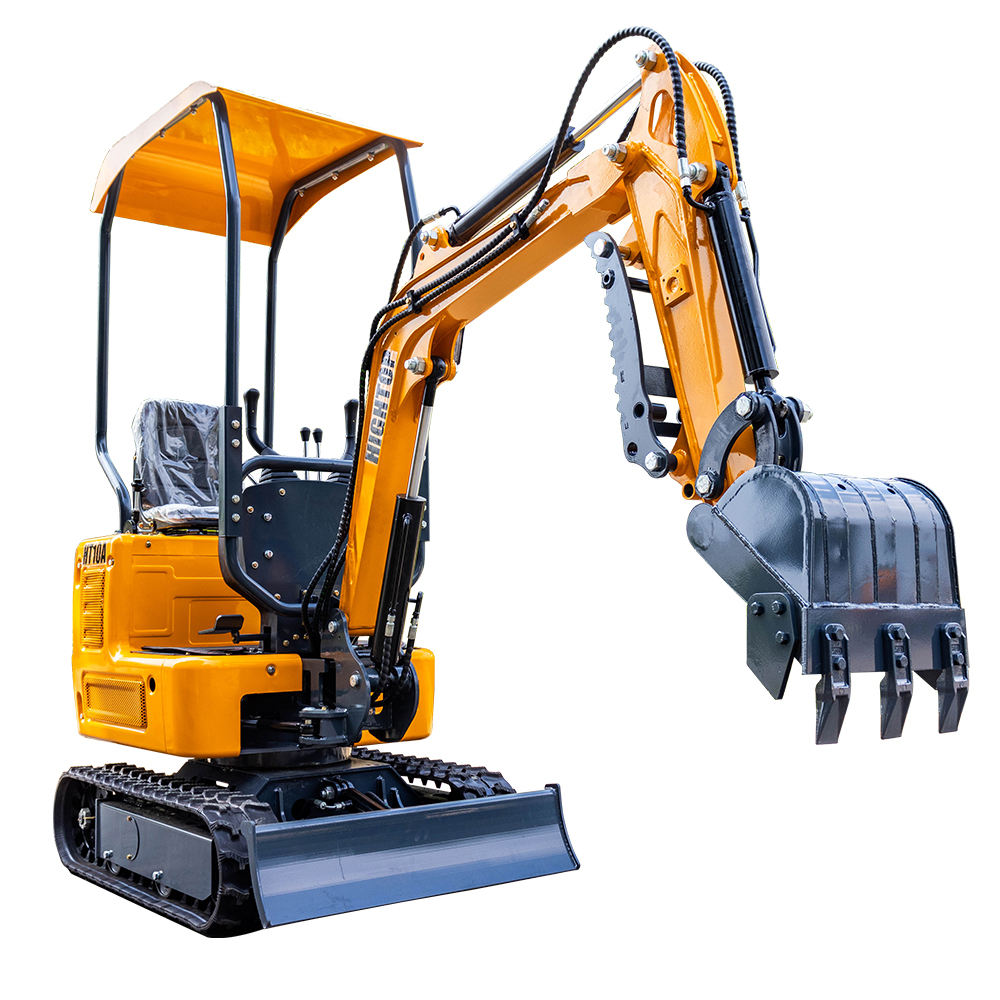

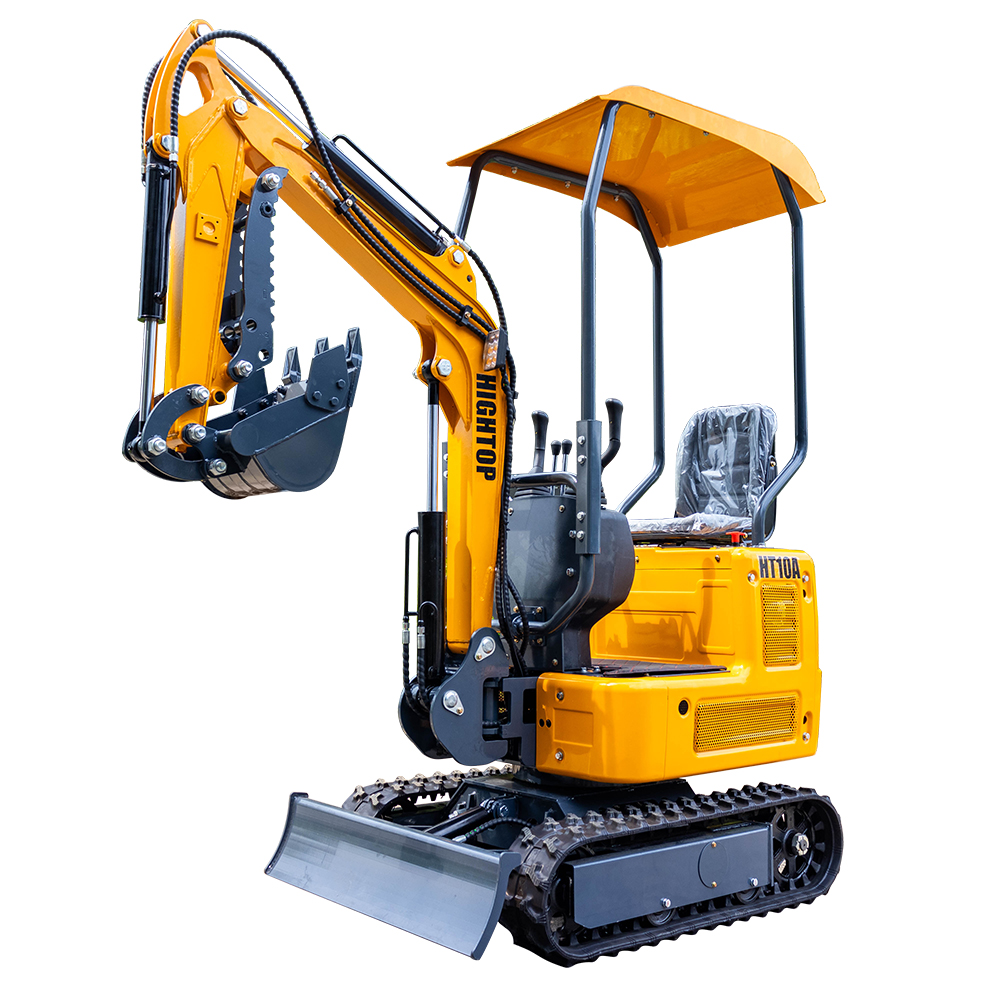

HT10A 1T Mini Excavator PA/CE,ISO certificate Optional: Boom swing Color can choose Red, Yellow, Blue, accept customized。
EPA/CE,ISO certificate Optional: Boom swing

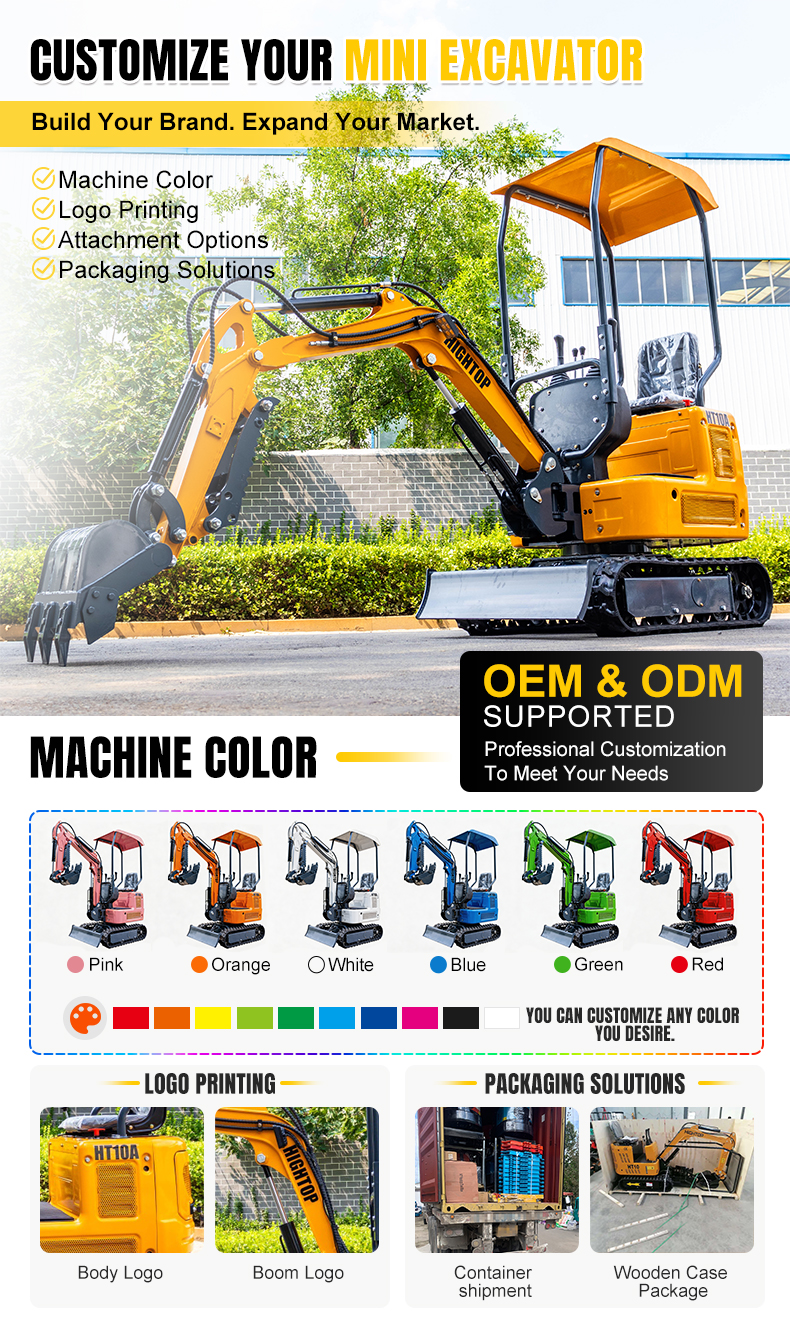

Color can choose Red, Yellow, Blue, accept customized。

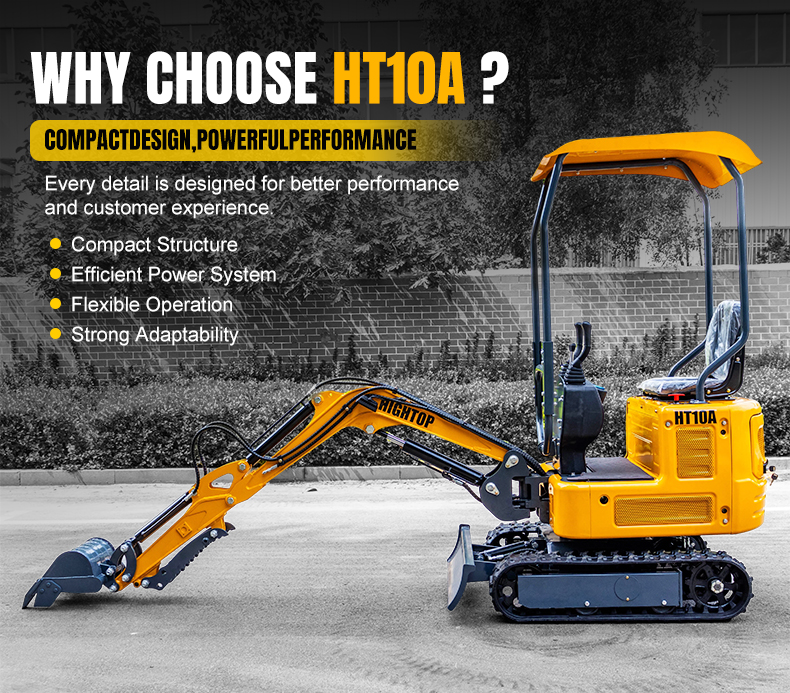

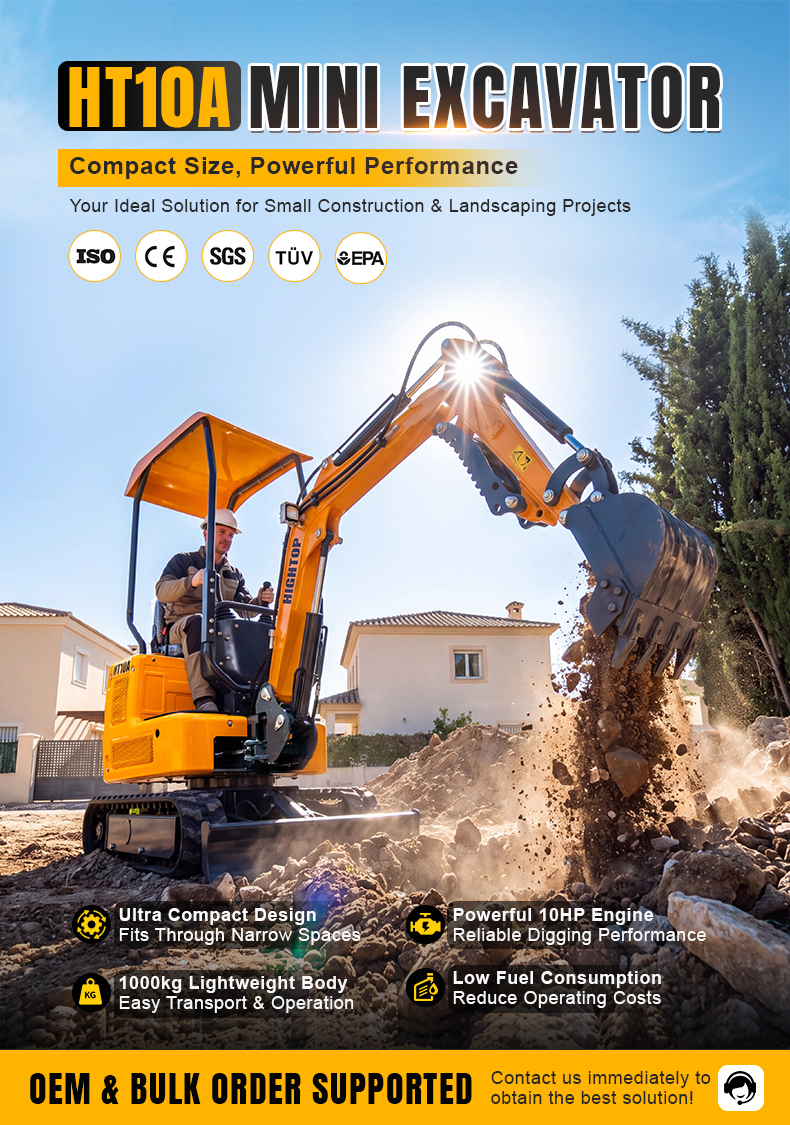

Small Machine, Big Performance
Designed for Landscaping, Construction & Farm Applications

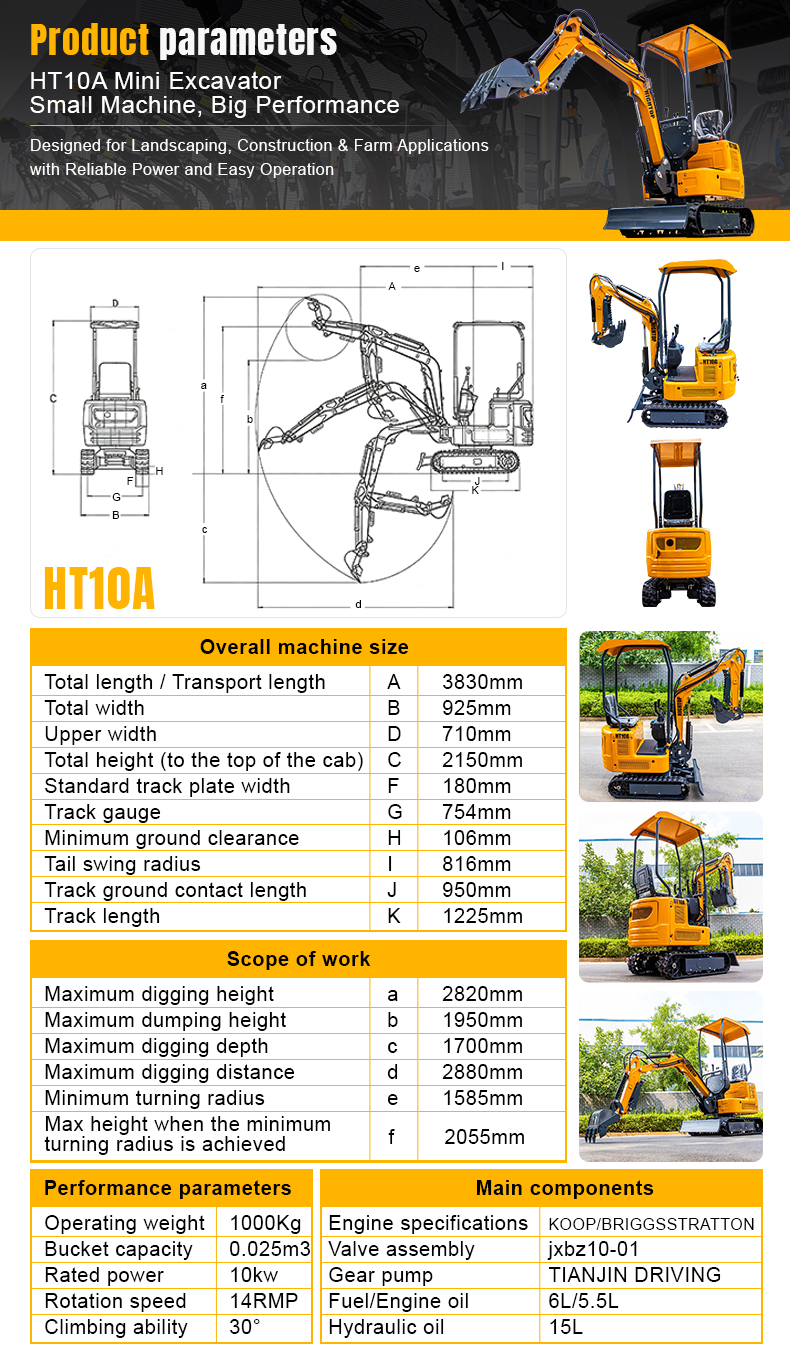

| Parameter Item | Symbol | Value |
| Total length / Transport length | A | 3830mm |

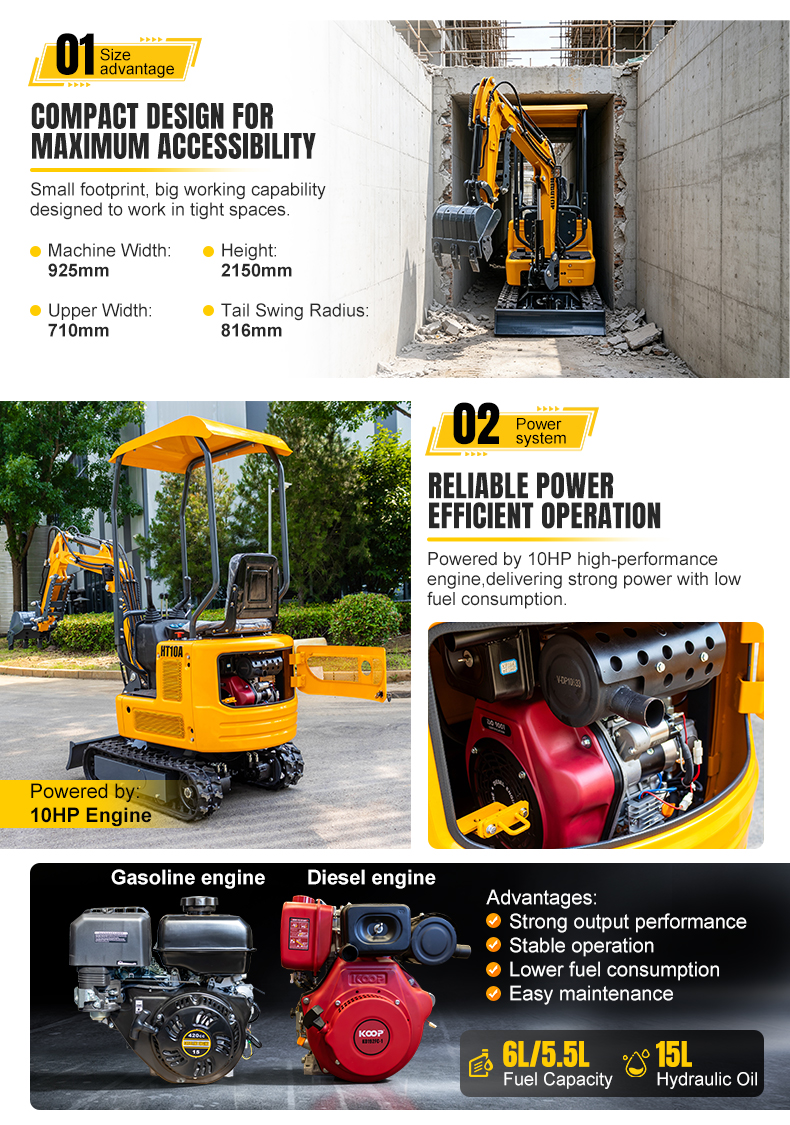

| Total width | B | 925mm |
| Upper width | D | 710mm |
| Total height (to the top of the cab) | C | 2150mm |
| Standard track plate width | F | 180mm |
| Track gauge | G | 754mm |
| Minimum ground clearance | H | 106mm |
| Tail swing radius | I | 816mm |
| Track ground contact length | J | 950mm |
| Track length | K | 1225mm |

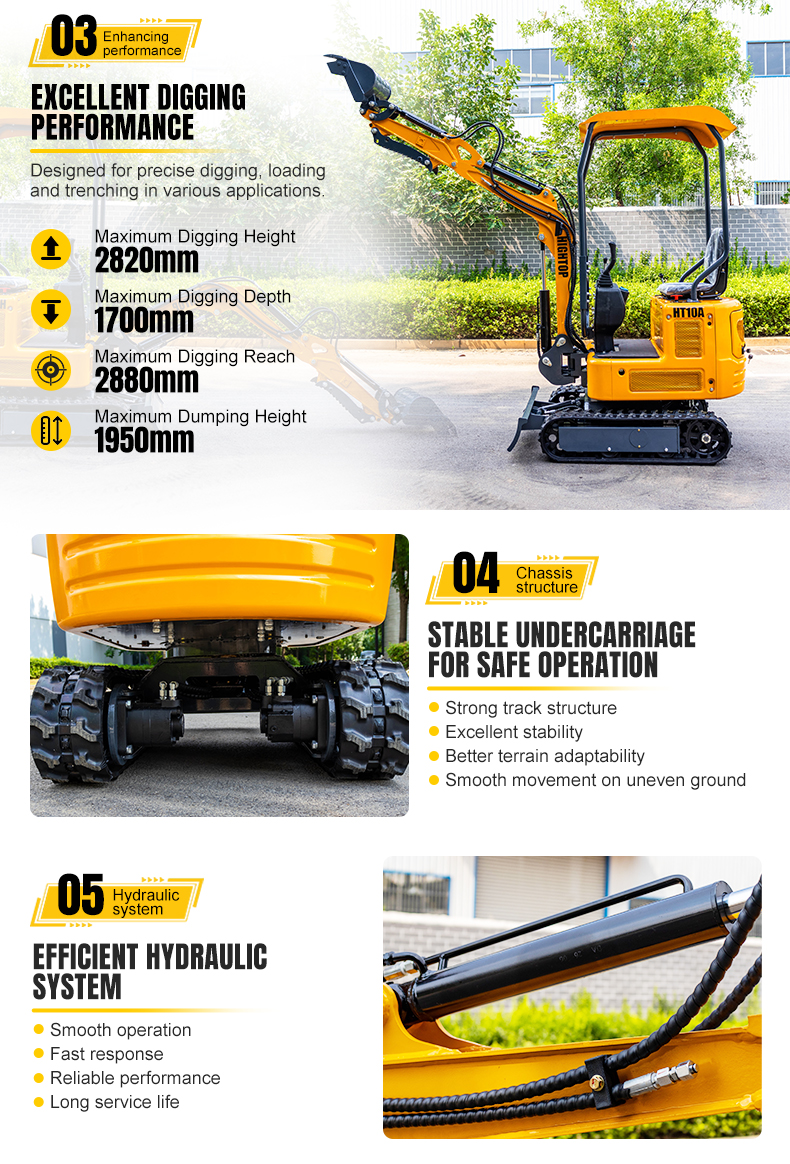

| Maximum digging height | a | 2820mm |
| Maximum dumping height | b | 1950mm |
| Maximum digging depth | c | 1700mm |
| Maximum digging distance | d | 2880mm |
| Minimum turning radius | e | 1585mm |
| Max height when the minimum turning radius is achieved | f | 2055mm |
| Operating weight | - | 1000Kg |
| Bucket capacity | - | 0.025m³ |
| Rated power | - | 10kw |
| Rotation speed | - | 14RMP |

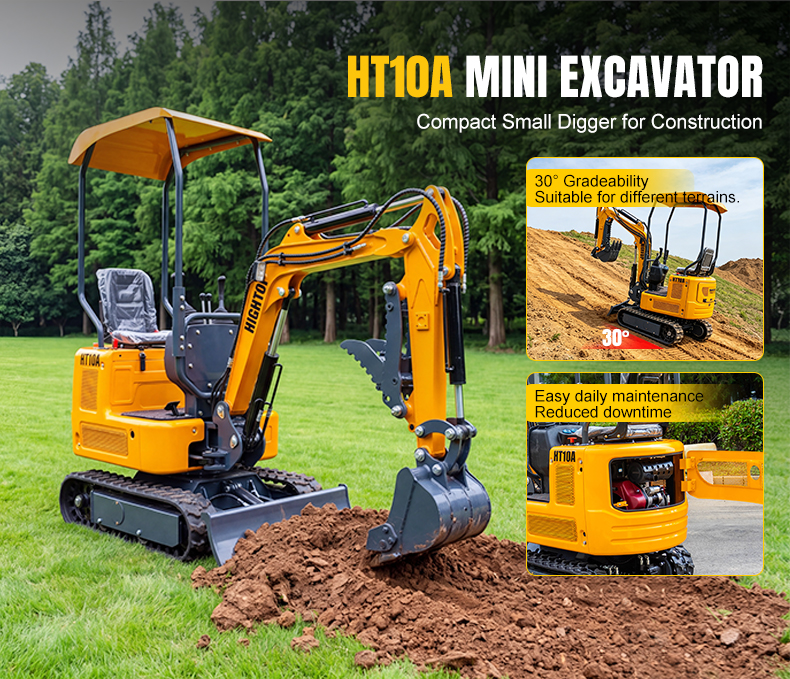

| Climbing ability | - | 30° |
| Engine specifications | - | KOOP/BRIGGSSTRATTON |
| Valve assembly | - | jxbz10‑01 |
| Gear pump | - | TIANJIN DRIVING |
| Fuel/Engine oil | - | 6L/5.5L |
| Hydraulic oil | - | 15L |
