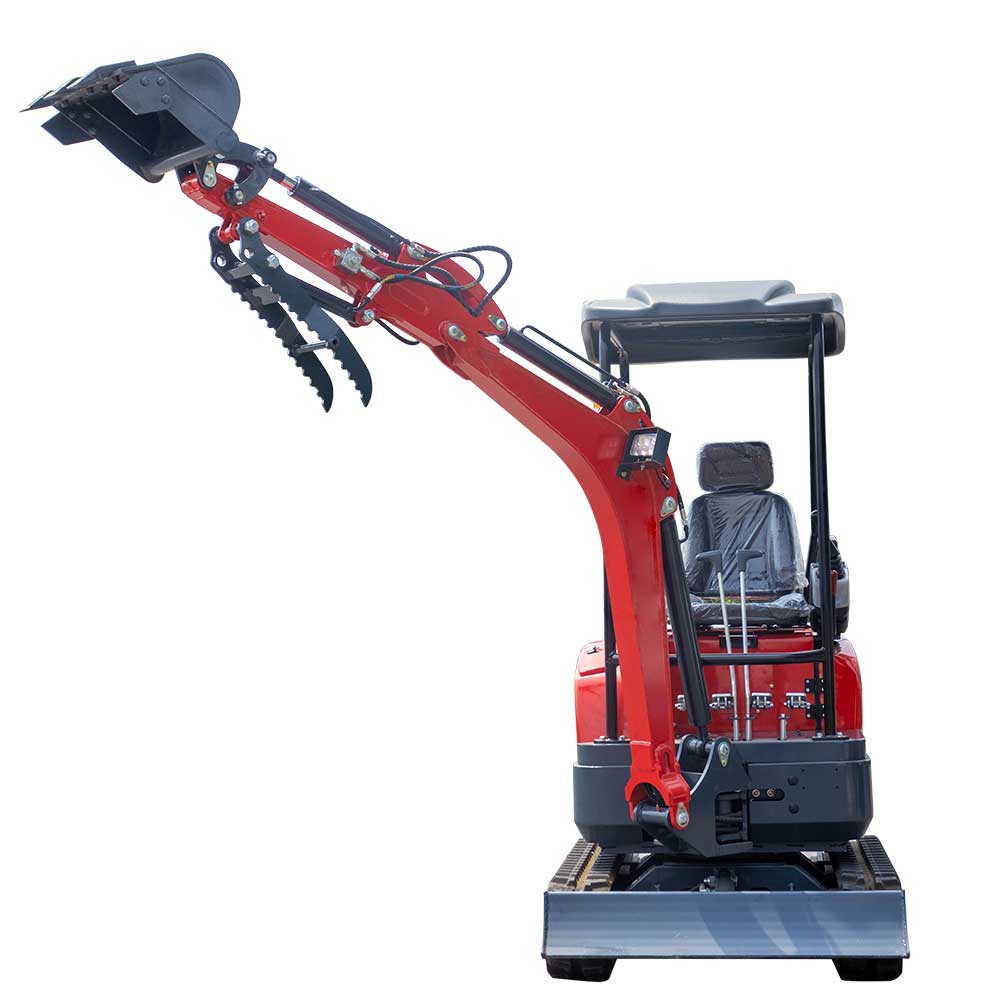

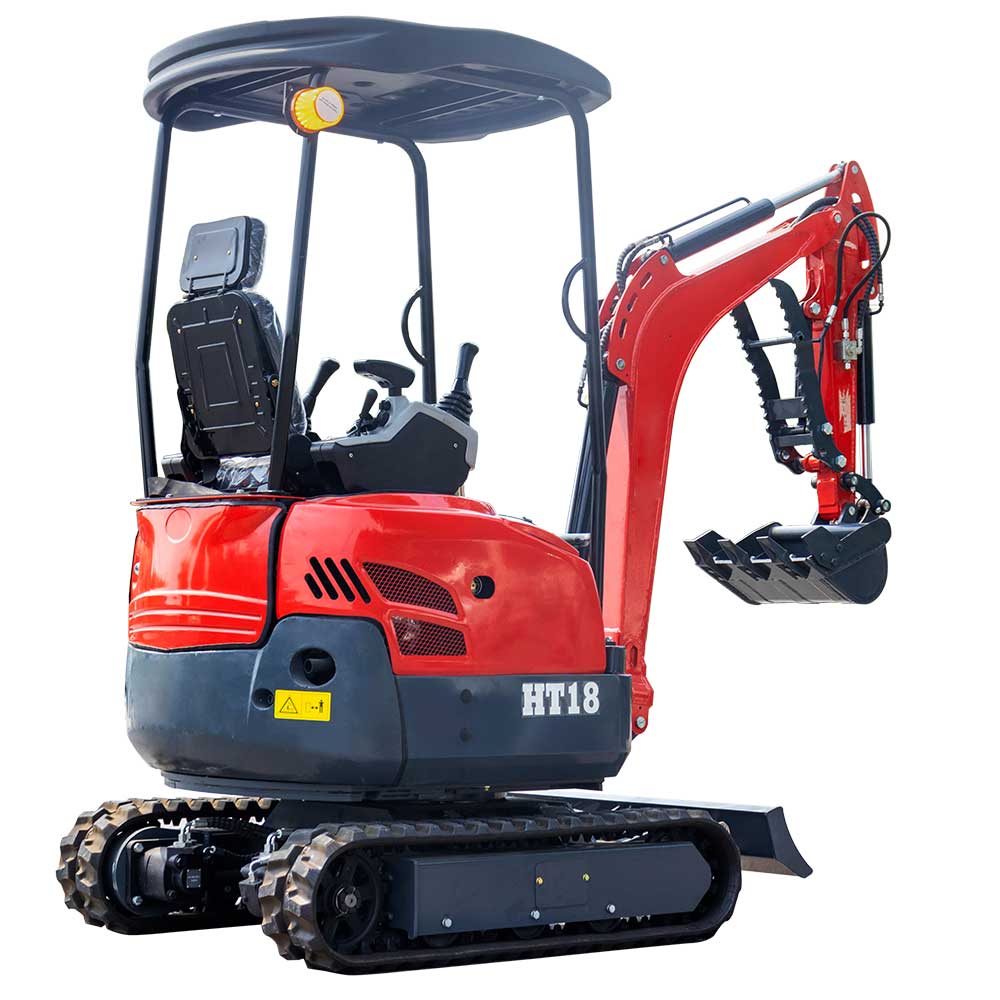

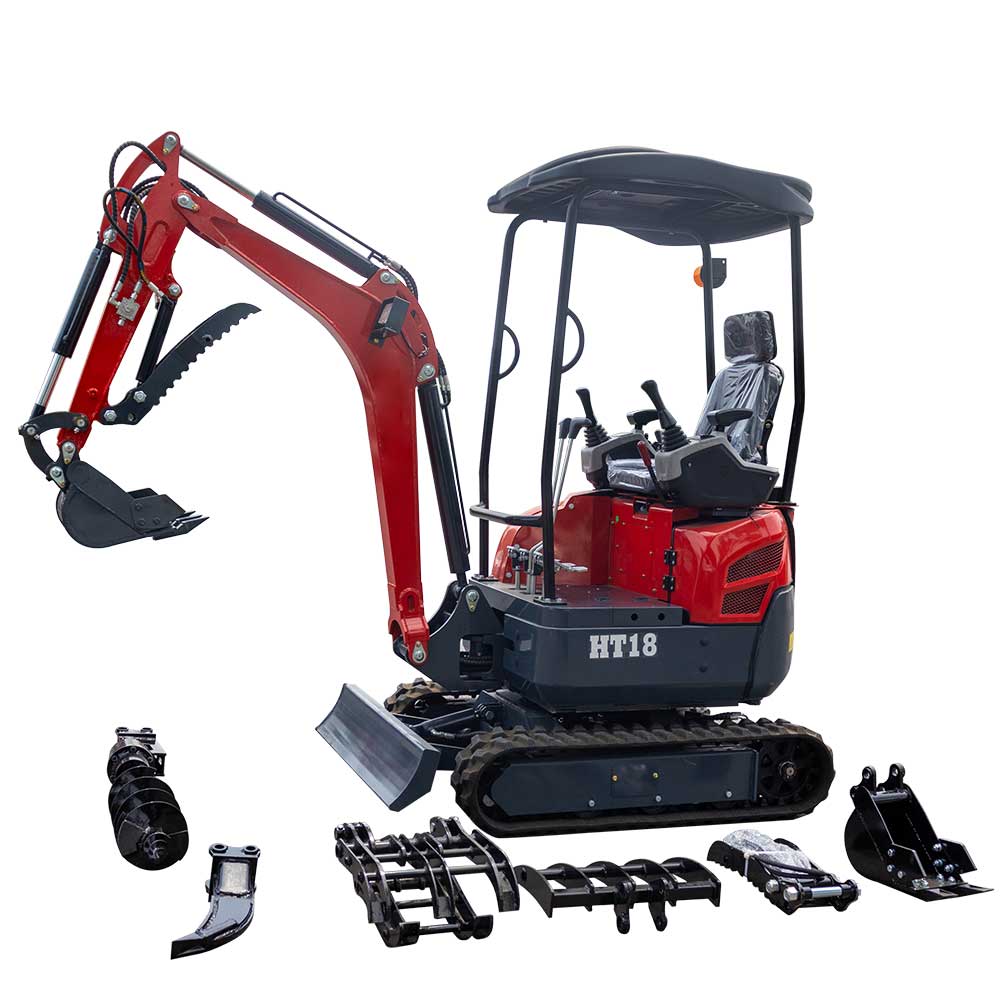

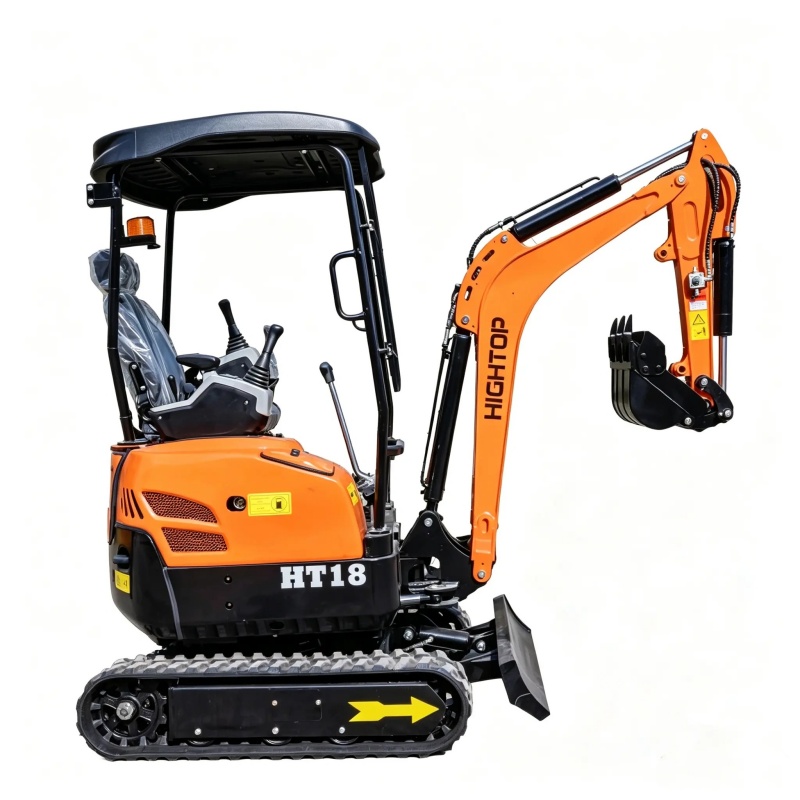

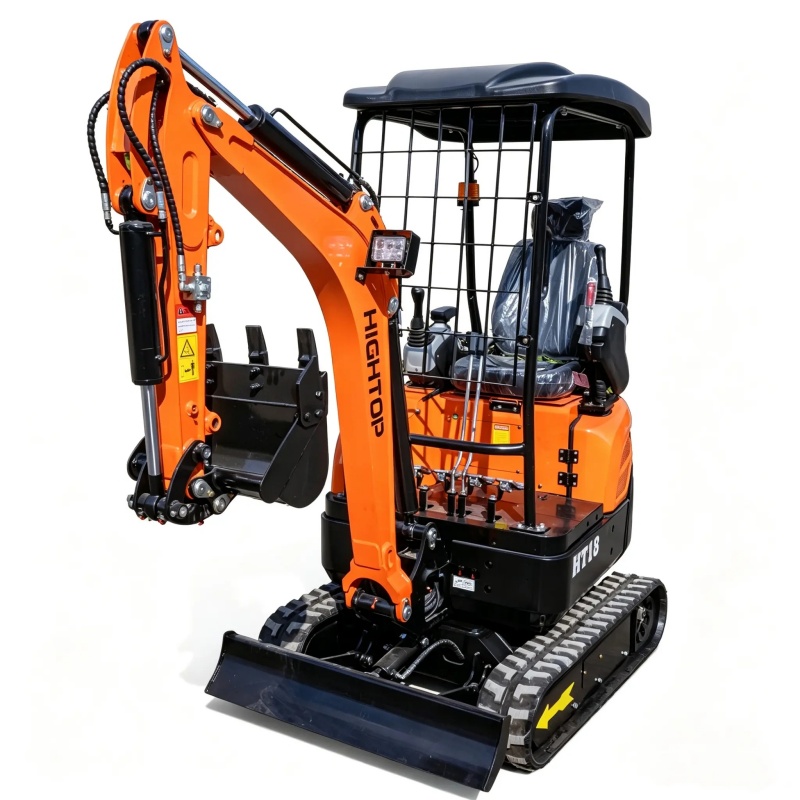

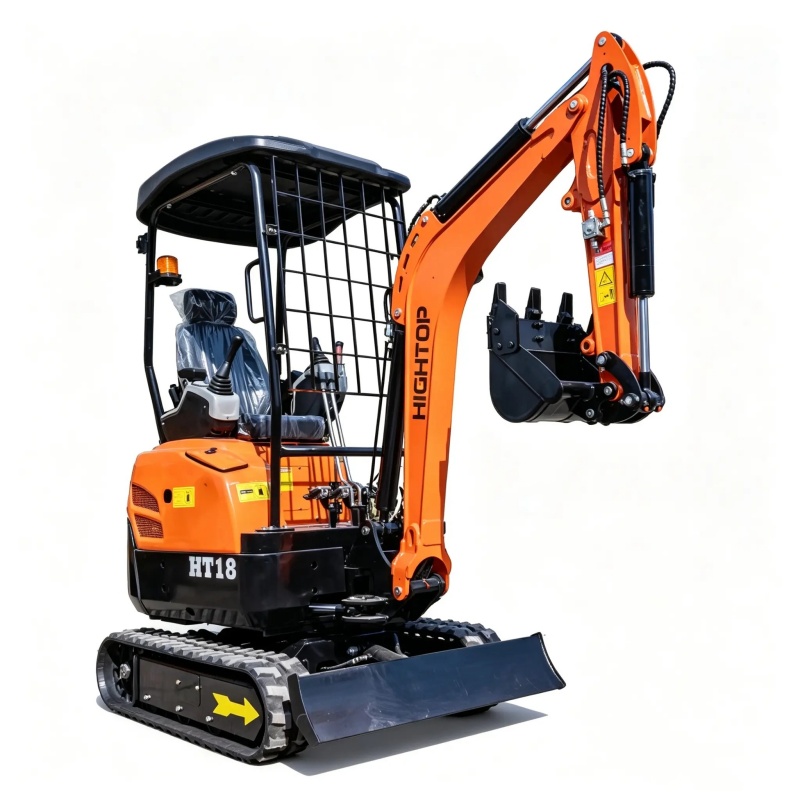

HT18-3 Mini Excavator
| Overall Dimensions (Unit: mm) | |
| Transport Length A | 2450 |
| Overall Width B | 1120 |
| Upper‑structure Width D | 990 |
| Overall Height (Top of Cab) C | 2280 |
| Standard Track Shoe Width F | 200 |
| Track Gauge E | 920 |
| Dozer Blade Ground Clearance G | 105 |
| Dozer Blade Digging Depth H | 270 |
| Tail Swing Radius I | 795 |
| Track Ground‑contact Length J | 1050 |
| Track Length K | 1350 |
| Working Range (Unit: mm) | |
| Max Digging Height a | 2785 |
| Max Dumping Height b | 1860 |
| Max Digging Depth c | 2050 |
| Max Digging Reach d | 3130 |
| Min Swing Radius e | 1655 |
| Max Height at Minimum Swing Radius f | 2205 |
| Performance Parameters | |
| Operating Weight (KG) | 1425kg |
| Bucket Capacity (m³) | 0.02 |
| Working Device Type | Backhoe |
| Gradeability | 30° |
| Main Components | |
| Engine | Kubota |
| Main Valve | North‑type |
