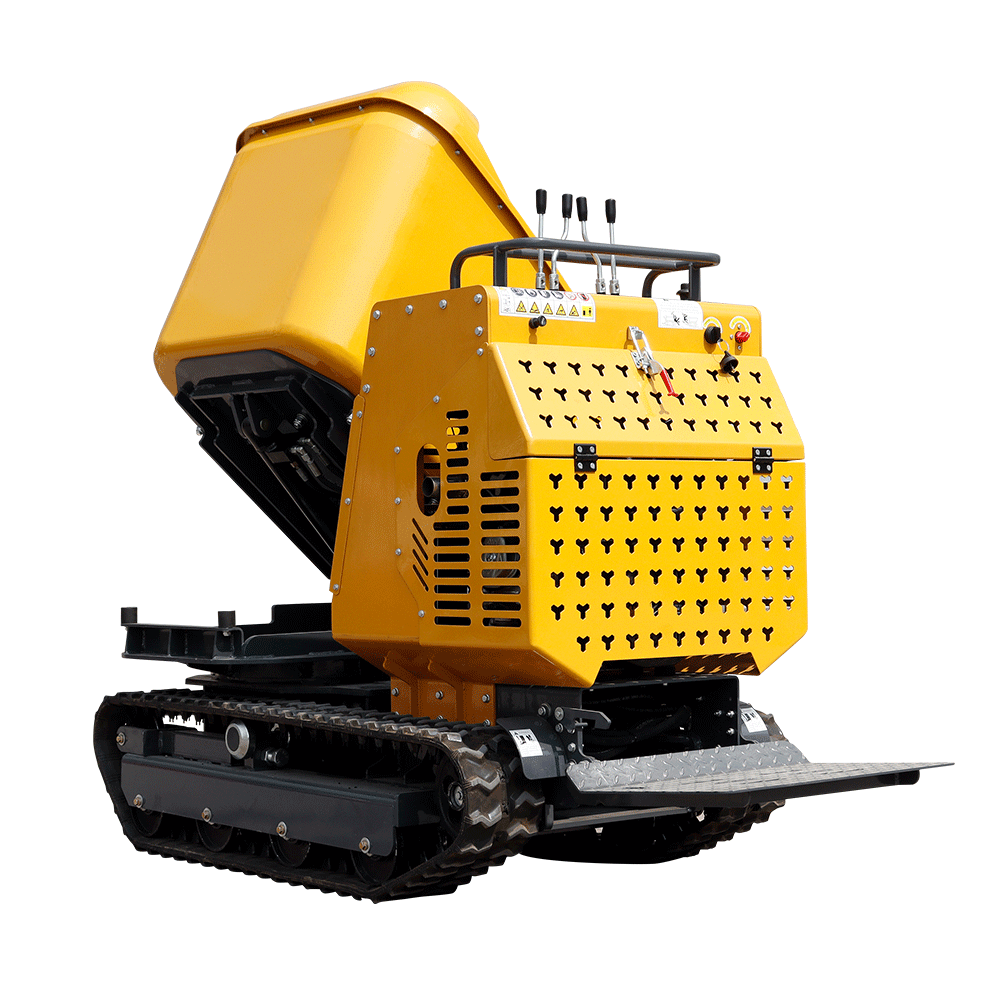

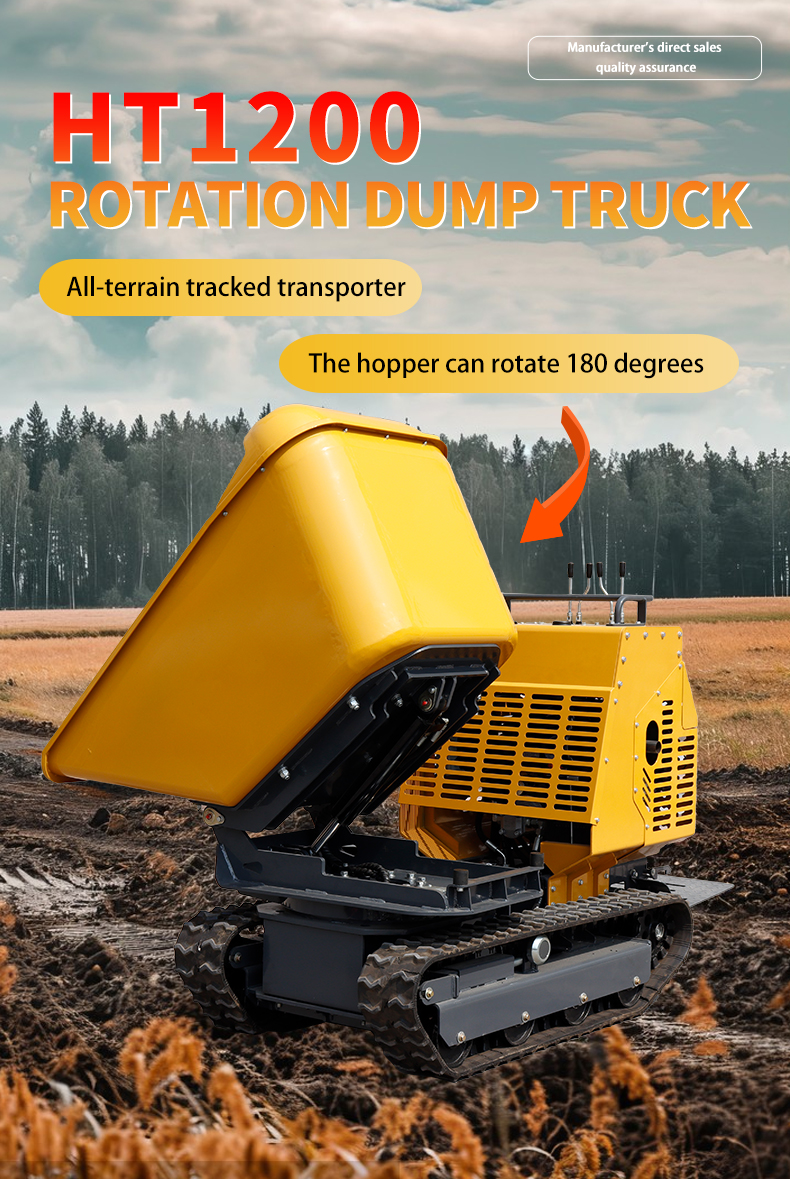

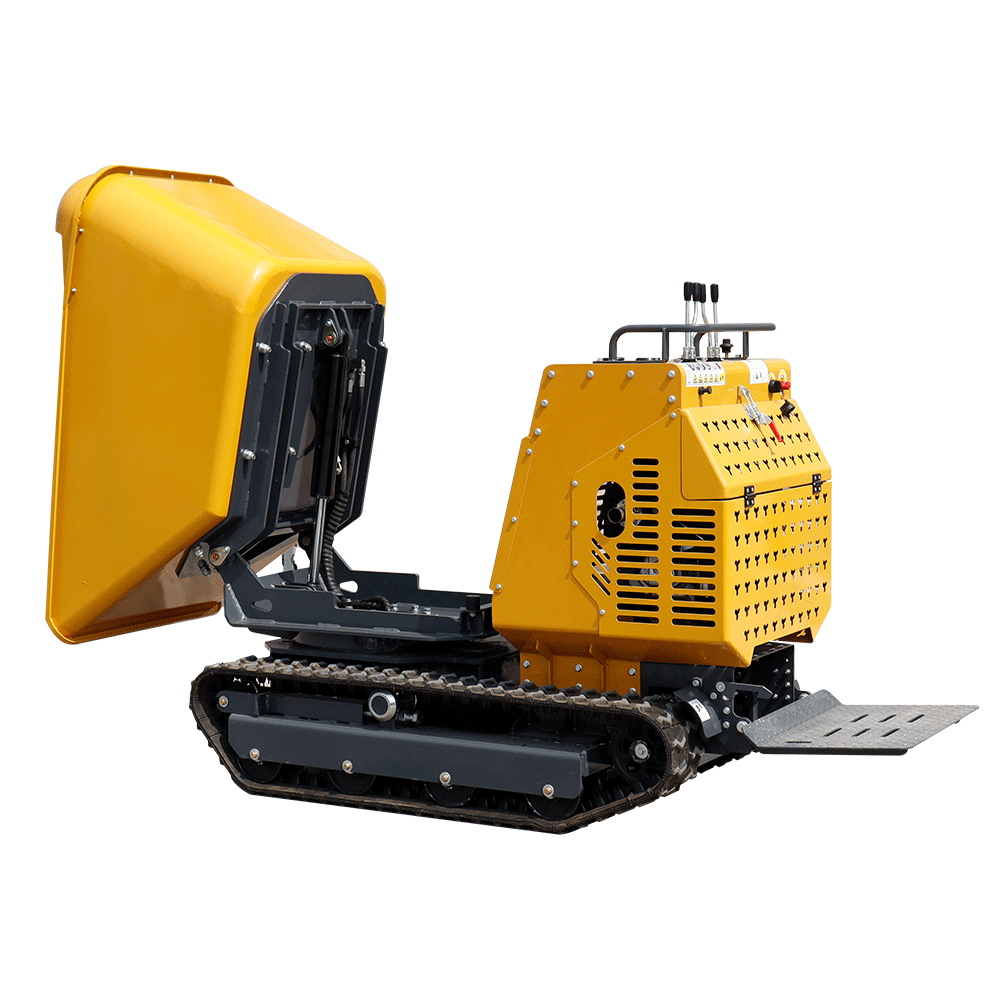

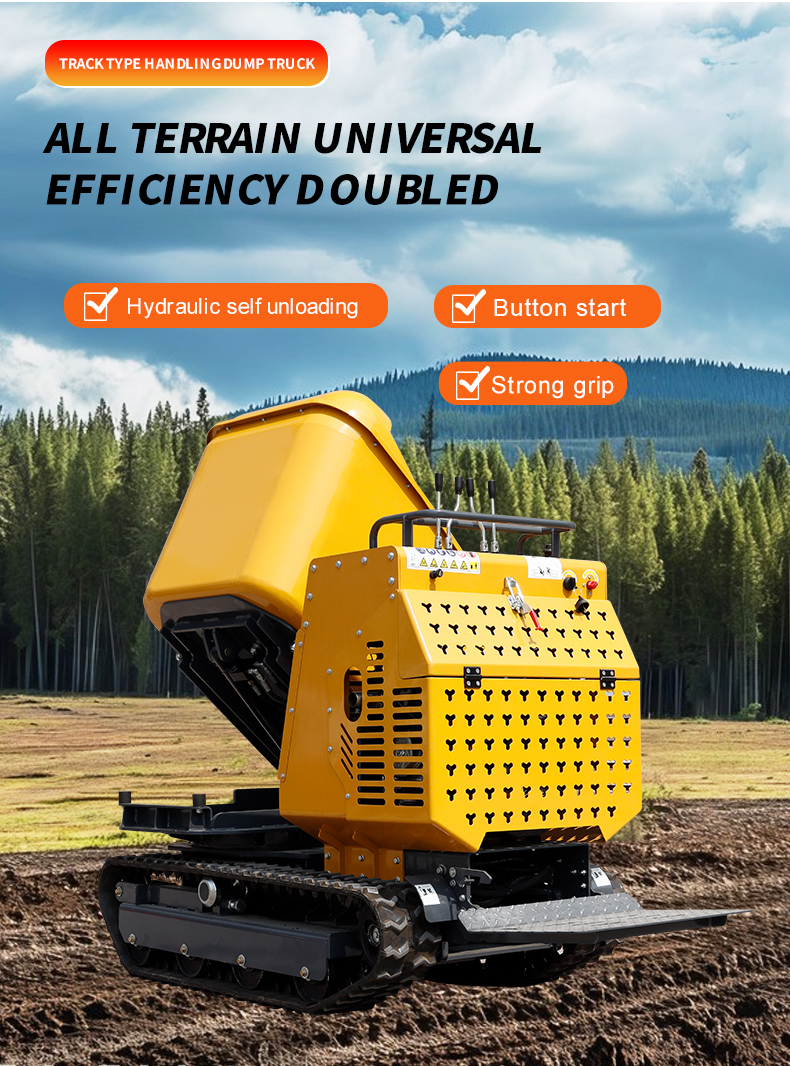

HT1200 Rotation Dump Truck

Can be used to transport cement, sand, fruit, wood and so on. The hopper can be turnedup and down 90° The hopper can be rotated 180°left and right Separate tipping and rotation controls can be oper

HT1200 Rotation Dump Truck Description

HT1200 Rotation Dump Truck Instruction

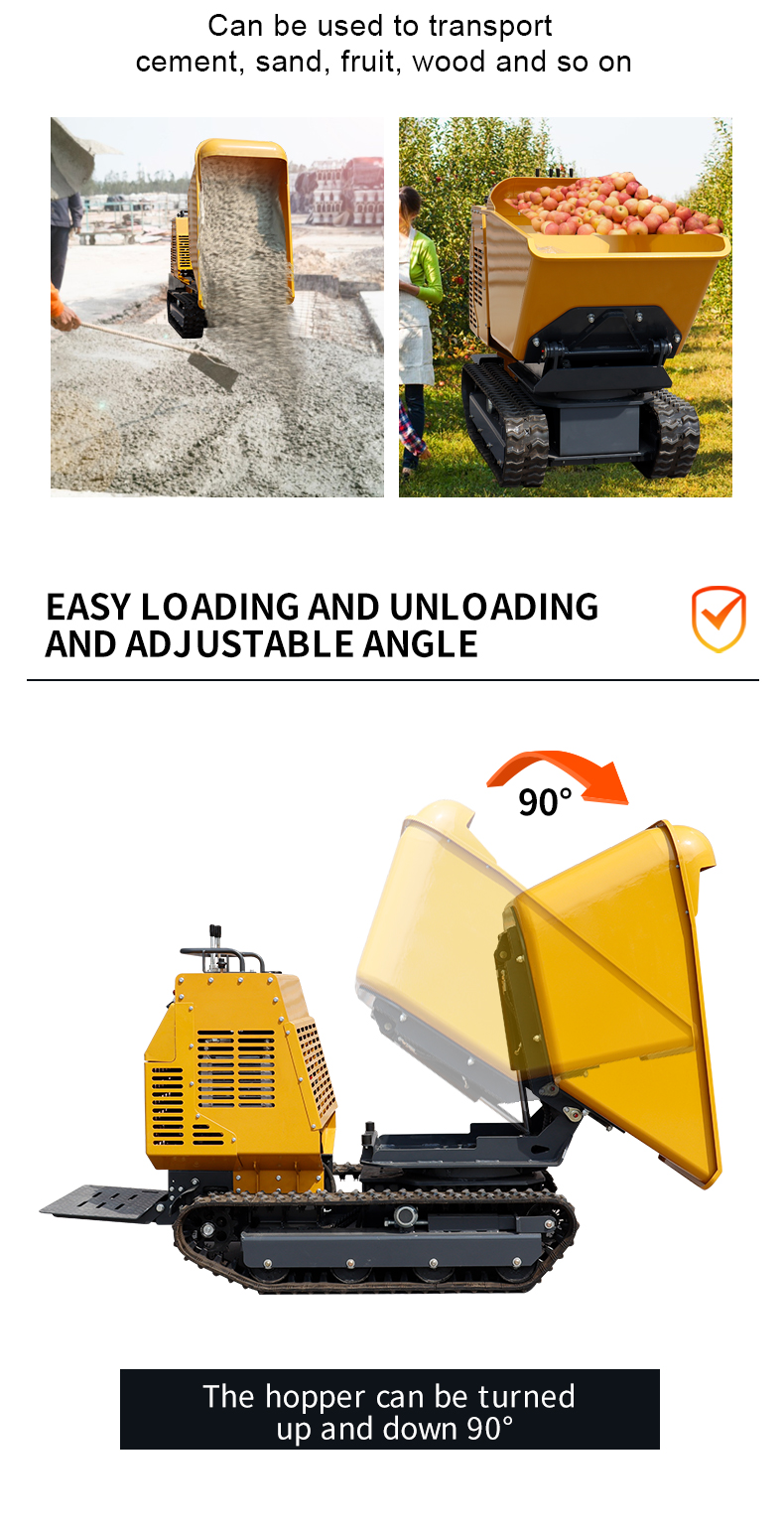

Can be used to transport cement, sand, fruit, wood and so on.

The hopper can be turnedup and down 90°

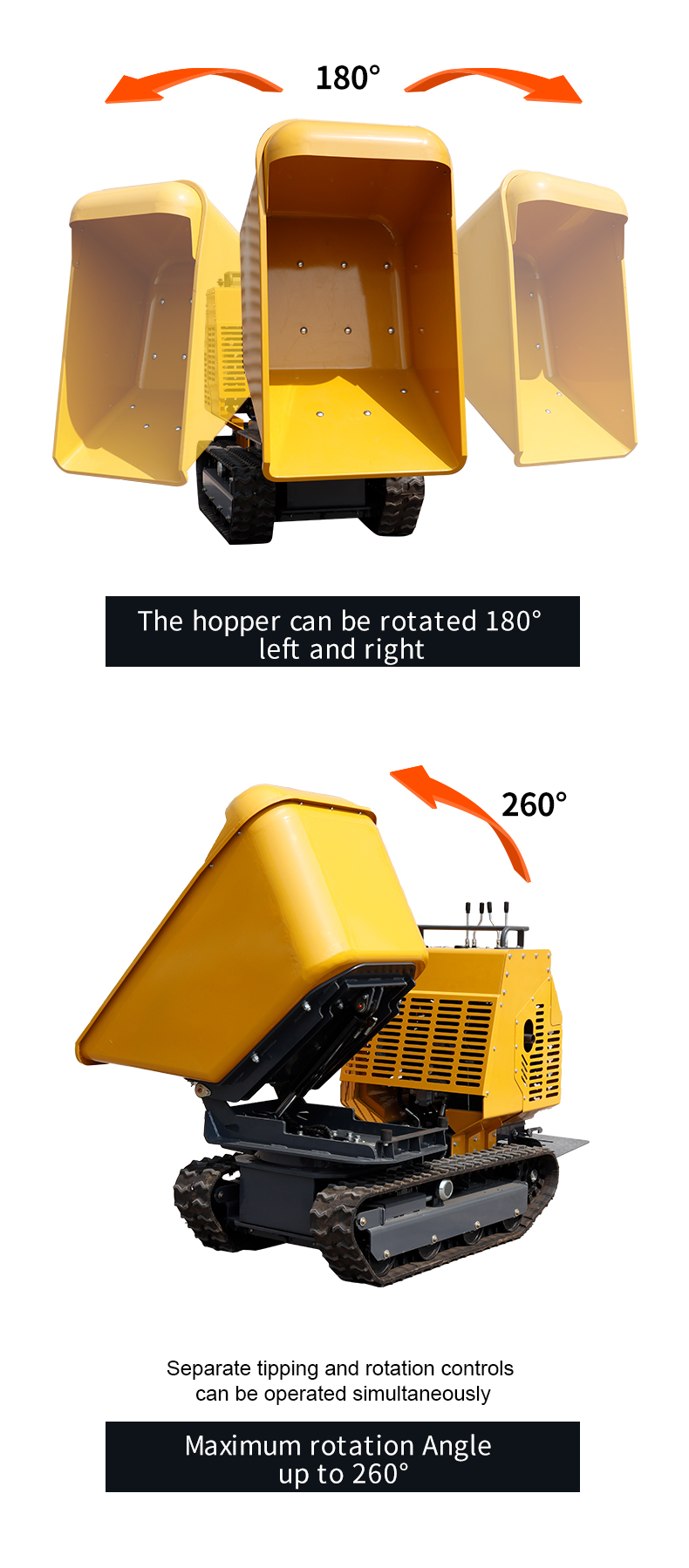

The hopper can be rotated 180°left and right

Separate tipping and rotation controls can be operated simultaneously

Maximum rotation Angleup to 260°

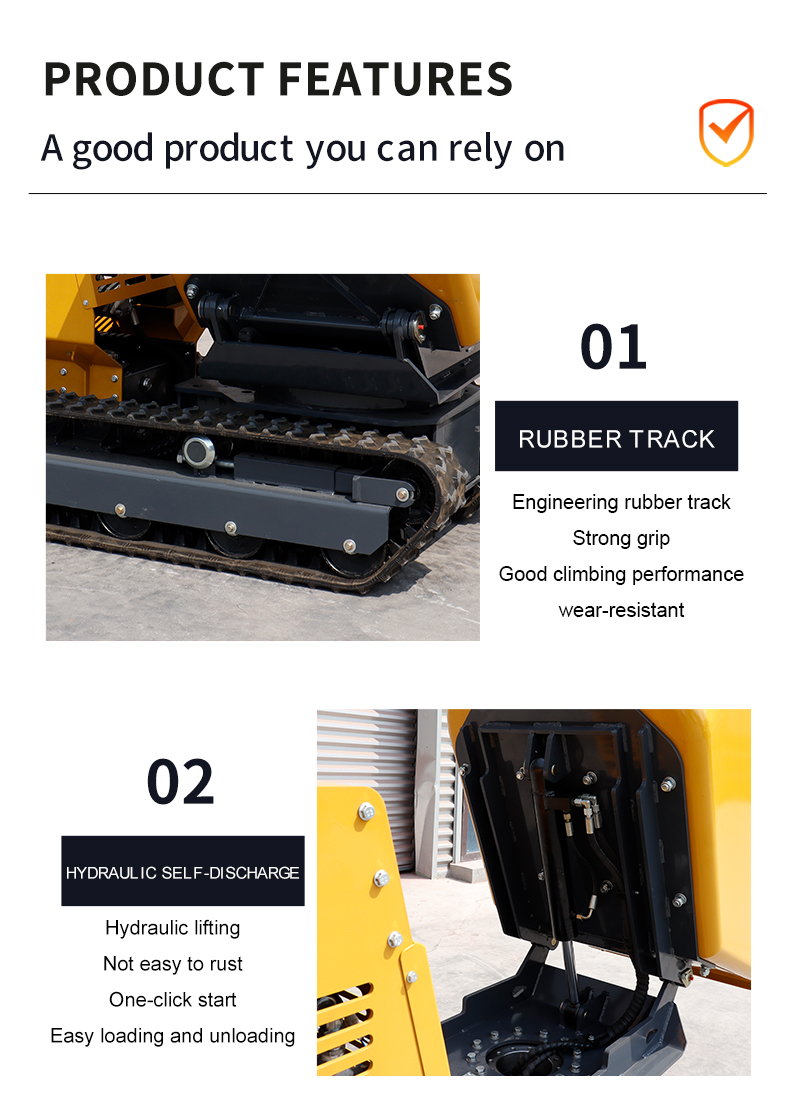

product features

1.rubber track

Engineering rubber track Strong grip.Good climbing performance wear-resistant


2.hydraulic self-discharce

Hydraulic lifting,Not easy to rust,One-click start,Easy loading and unloading

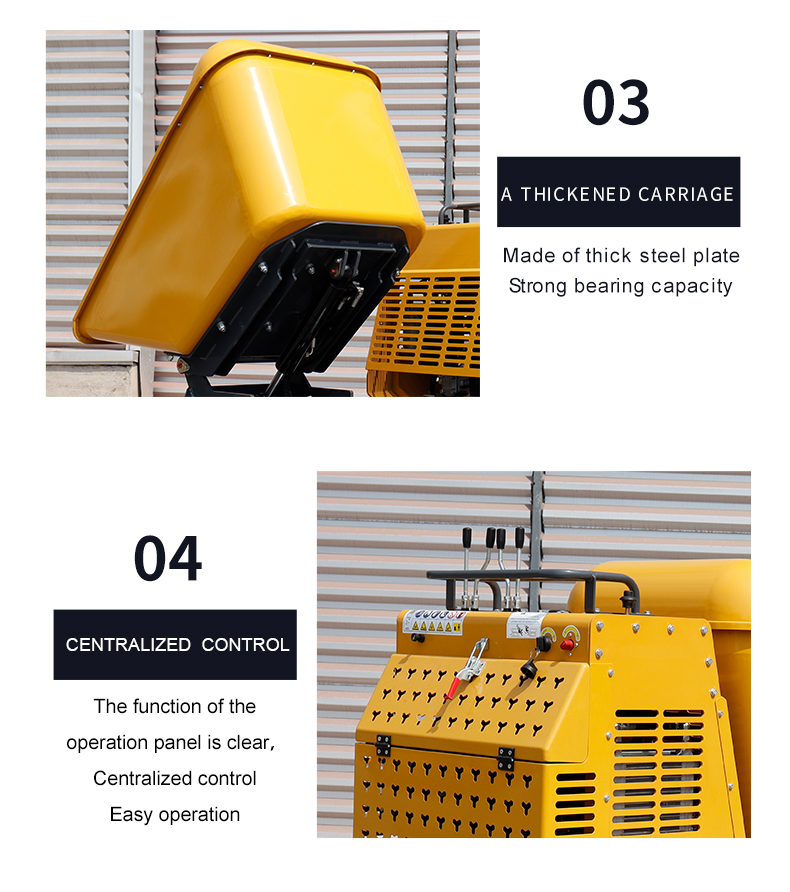

3.a thickened carriage

Made of thick steel plate.Strong bearing capacity


4.centralized control

The function of the operation panel is clear.

Centralized control Easy operation

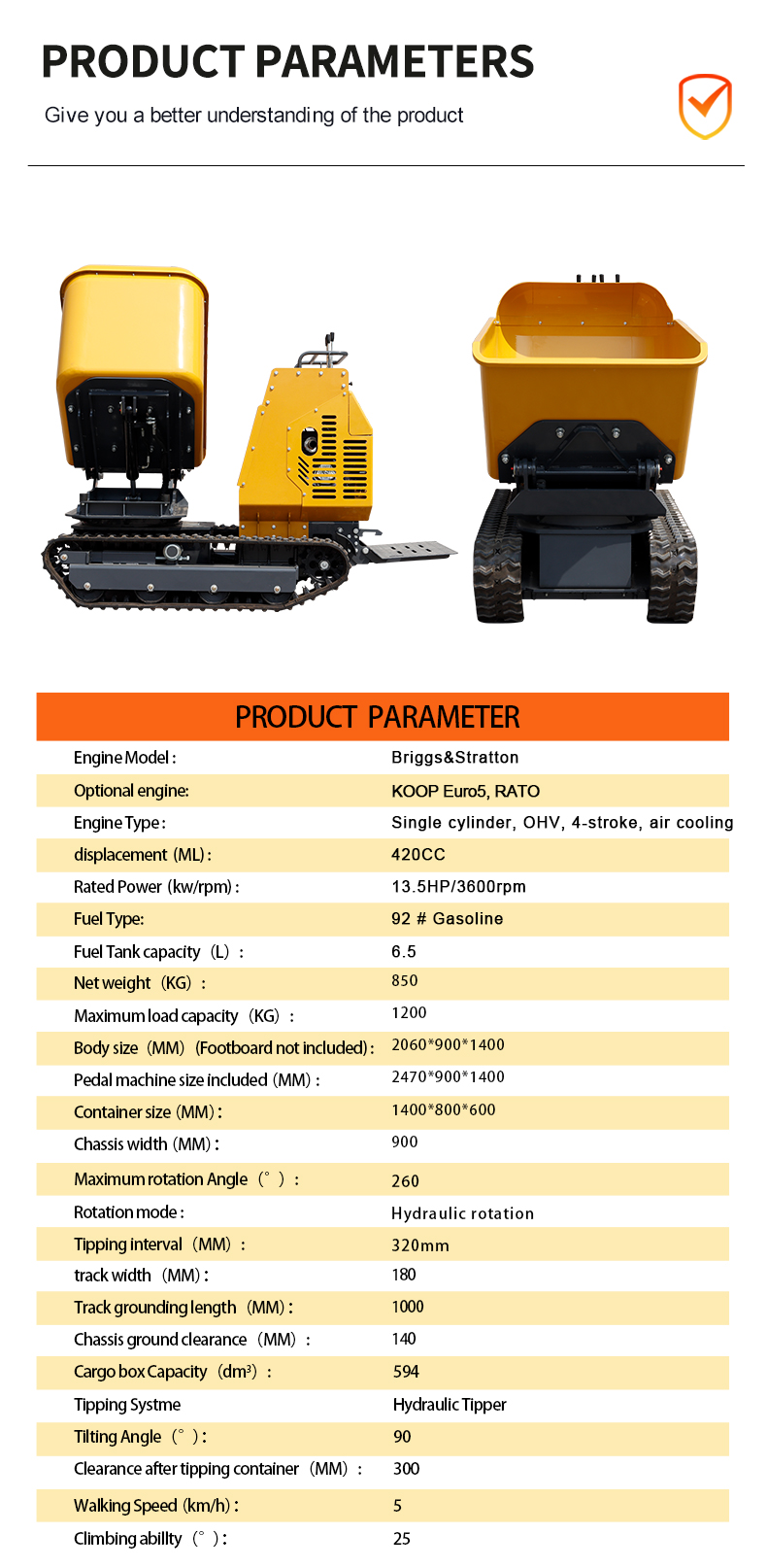

HT1200 Rotation Dump Truck Parameter


Engine data

Engine Model

Briggs&Stratton Pioneer

Engine Type

Single cylinder, OHV, 4-stroke, air cooling

displacement

420CC

Rated Power

13.5HP/3600rpm

Fuel Type

92 # Gasoline

Fuel Tank capacity

6.5L

Weight data


Net weight:

850kg

Maximum load capacity

1200kg

Body size  :

(Footboard not included)

2060*900*1400mm

Pedal machine size included

2470*900*1400mm

Container size:

1400*800*600mm

Chassis width:

900mm

Rotating data

Maximum rotation Angle

260°

Rotation mode:

Hydraulic rotation

Tipping interval

320mm

Track data

track width:

180mm

Track grounding length:

1000mm

Chassis ground clearance:

140mm

Hopper data


Cargo box Capacity

594dm³

Tipping Systme

Hydraulic Tipper

Tilting Angle

90°

Clearance after tipping container

300mm

Walk data


Walking Speed

5km/h

Climbing abillty

25°
