HTS280L Skid Steer Loader

HTS280L Skid Steer Loader

HTS280L Skid Steer Loader Description

HTS280L Skid Steer Loader Parameter

Model:HTS280L

Engine Brand

Briggs & Stratton

Maximum operating height

2490

Scheduled power

13.5KW

Height to bucket pin

1670

Nominal speed

3000rpm

Overall vehicle height

1390

Number of cylinders

1

Maximum height with bucket flat

2180

Intake mode

Natural

Overall length without attachments

1540

Displacement

420cc

Overall length with standard bucket

2160

Emission standard

Euro 5-EPA

Maximum height unloading angle

139

Rated load

200kg

Unloading height

1564

Maximum load

300kg

Unloading distance

446

Maximum lifting force

350KN

Bucket turning angle at ground level

25°

Travelling speed

0-6km/h

Turning angle of the bucket at maximum

115°

Working three and

9s

Bucket volume

0.06m³

Working system pressure

17-21bar

Operating mass

900kg

Fuel tank volume

5L

Track type

150*36*72

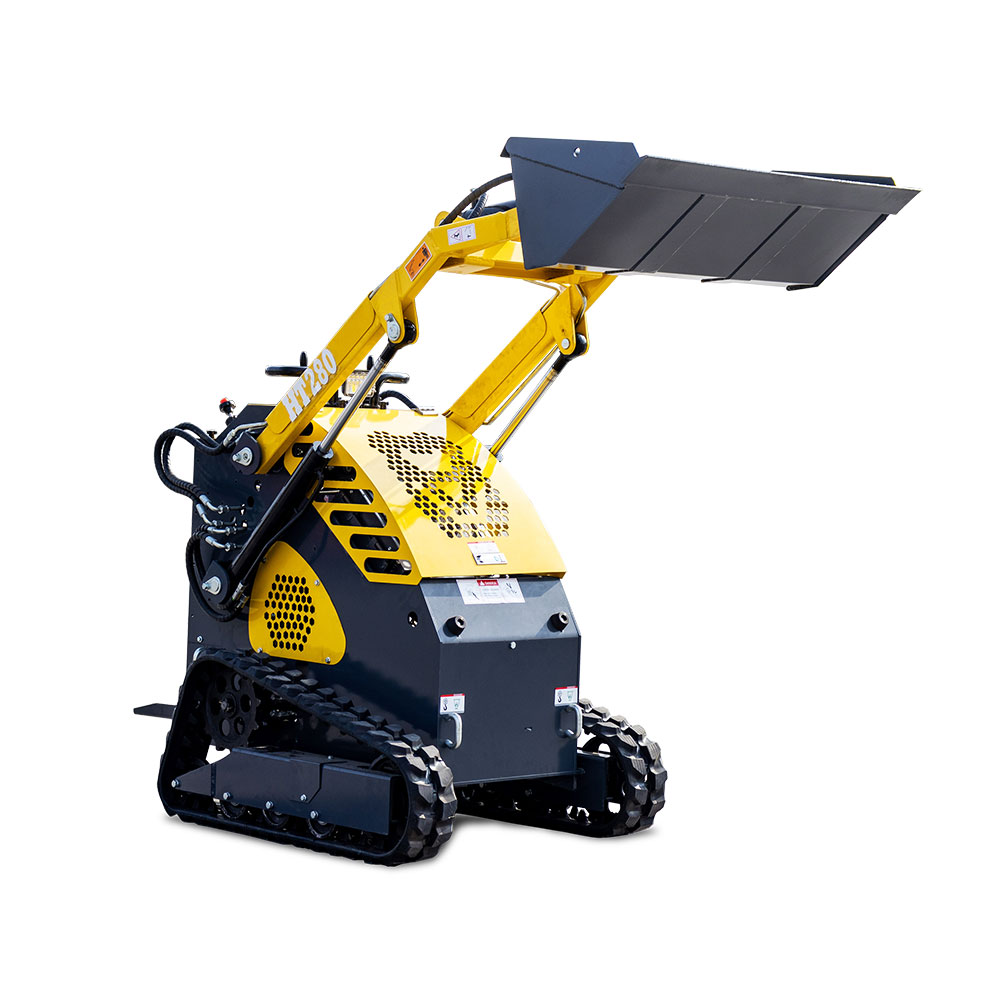

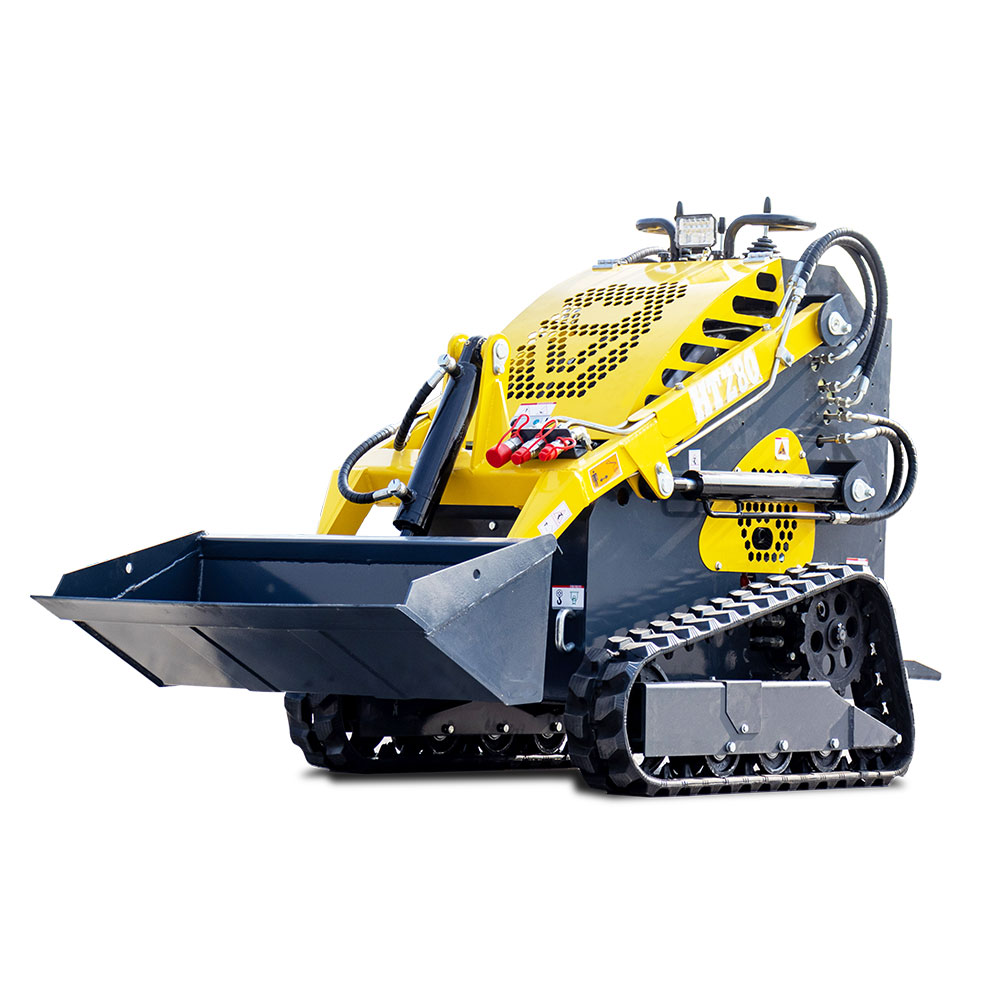

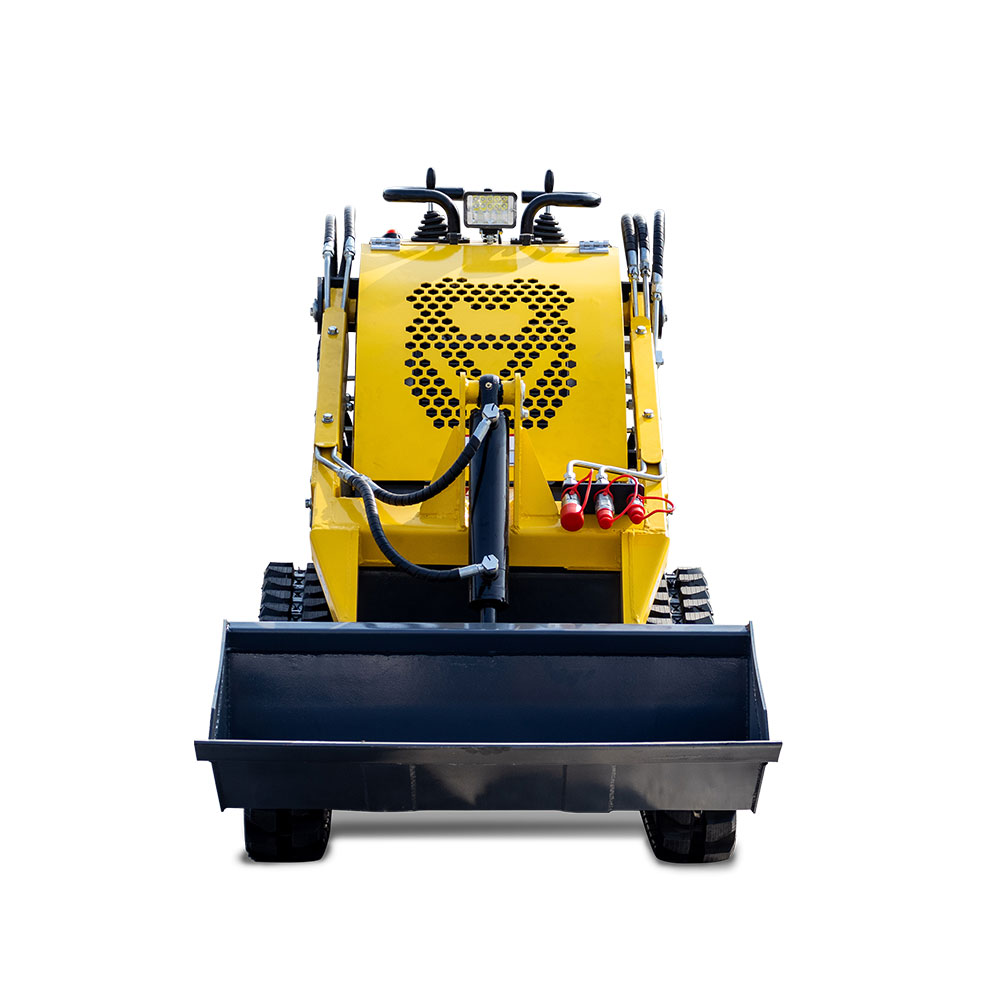

HTS280L Skid Steer Loader Images
