HT08 800kg Mini Excavator

HT08 Mini Excavator Advantage,Unique big arm structure design.The operation front pipeline is clear.

HT08 800kg Mini Excavator Description

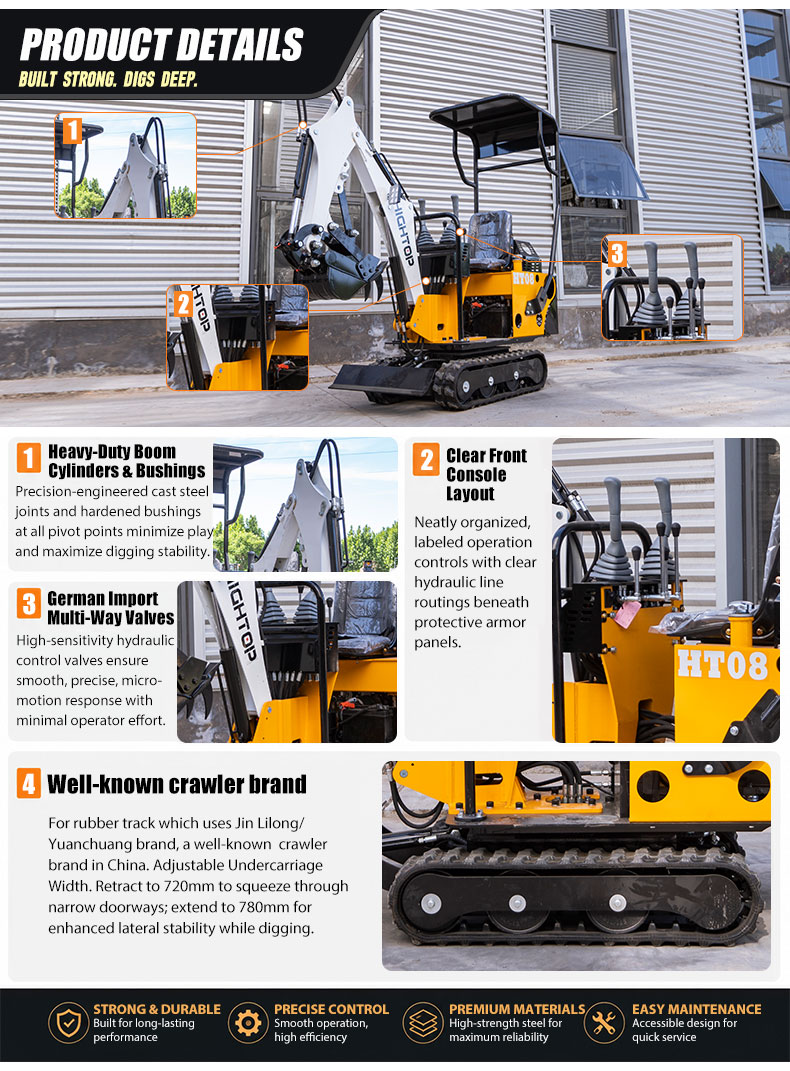

HT08 0.8T Mini Excavator Advantage

1.Unique big arm structure design

2.The operation front pipeline is clear.

The protective cover protects the pipeline from being destroyed.

3.The boom cylinder adopts the well-known brand

The cylinder is designed integrated,  which is more advanced than the welding technology.

4.All structural parts are finely processed.

All structural parts are finely processed.

Shot blasting, pickling, and baking finish process are adopted.

The surface has high gloss and high paint adhesion.

HT08 0.8T Mini Excavator Parameter

Performance Parameter



Rated power

12HP

Bucket Capacity

0.025 m3

Engine Model

changchai 192

Weight

650 kg

Max. digging force

7.5KN

Pump form

Single gear pump

Set working pressure

14Mpa

Swing speed

12 rpm

Travel speed

2.2Km/h

Gradeability

30°

Ground pressure

19Kpa

Working Range



Max. dgging distance

2450mm

Max.digging depth

1200mm

Max.diging height

2350mm

Max.dumping height

1600mm

Min.Swing radius

1100mm

Max. Upgrade height of blldozer blade

120mm

Max. Digging depth of blldozer blade

200mm

Dimensions



Total width

720-780mm

Total height

1300mm

Total length

2430mm

Min. ground clearance

80mm

Track ground length

1140mm

Track width

150mm

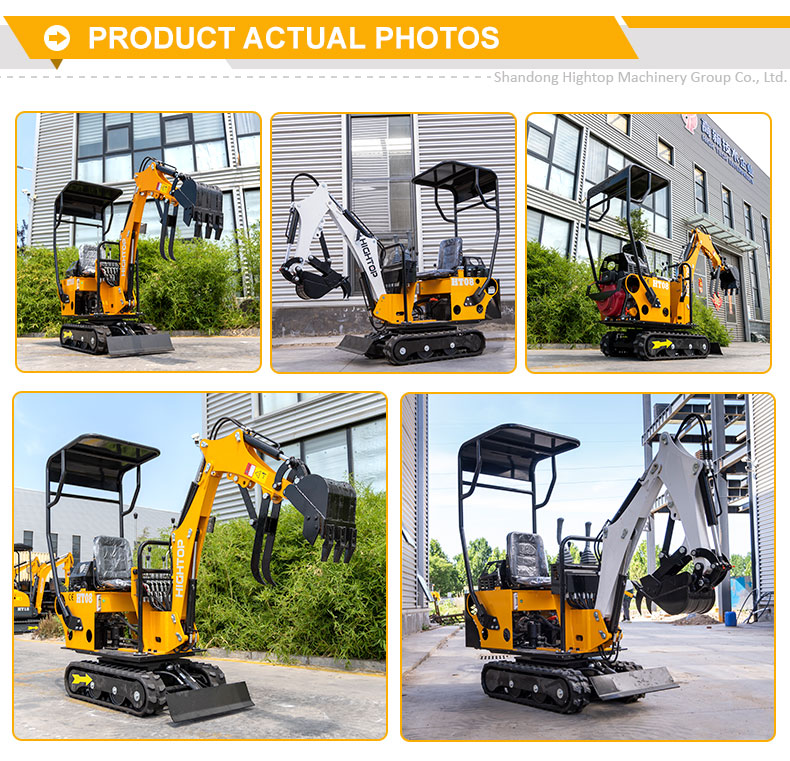

HT08 0.8T Mini Excavator Images
