HTS25 Skid Steer Loader Description

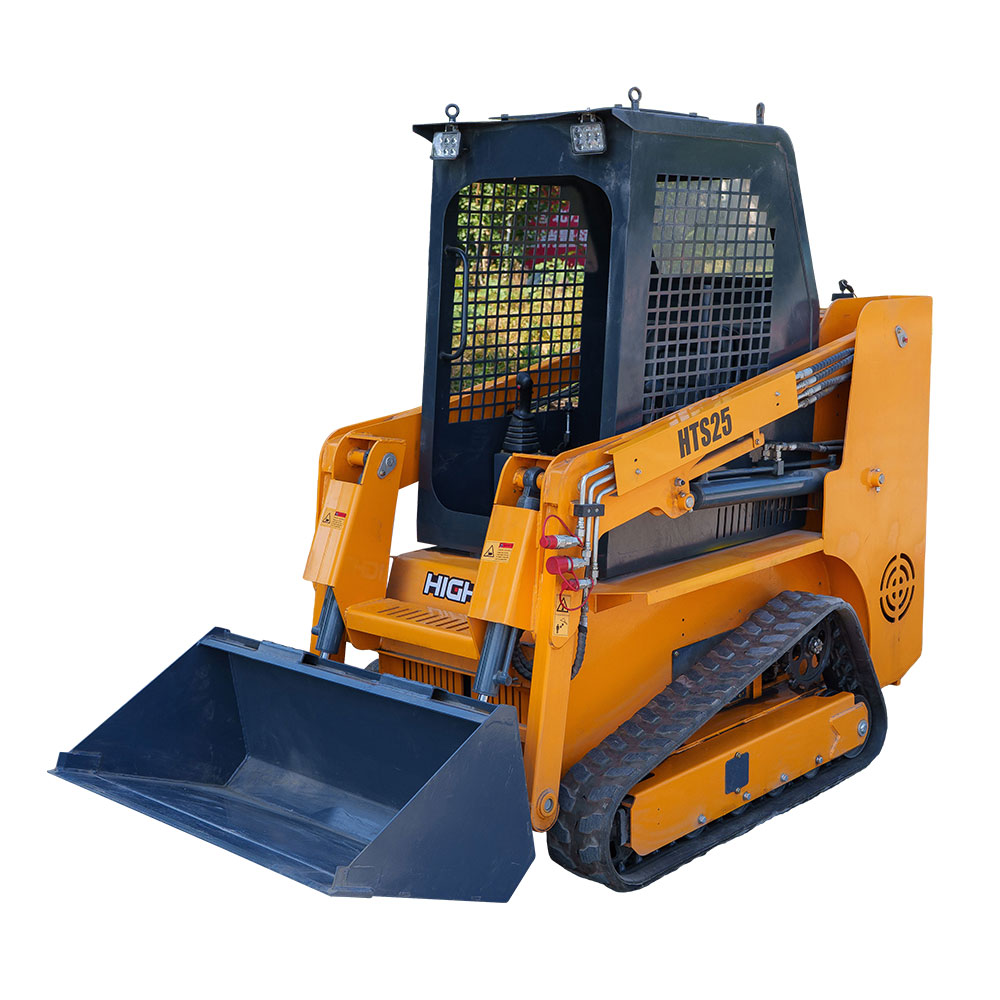

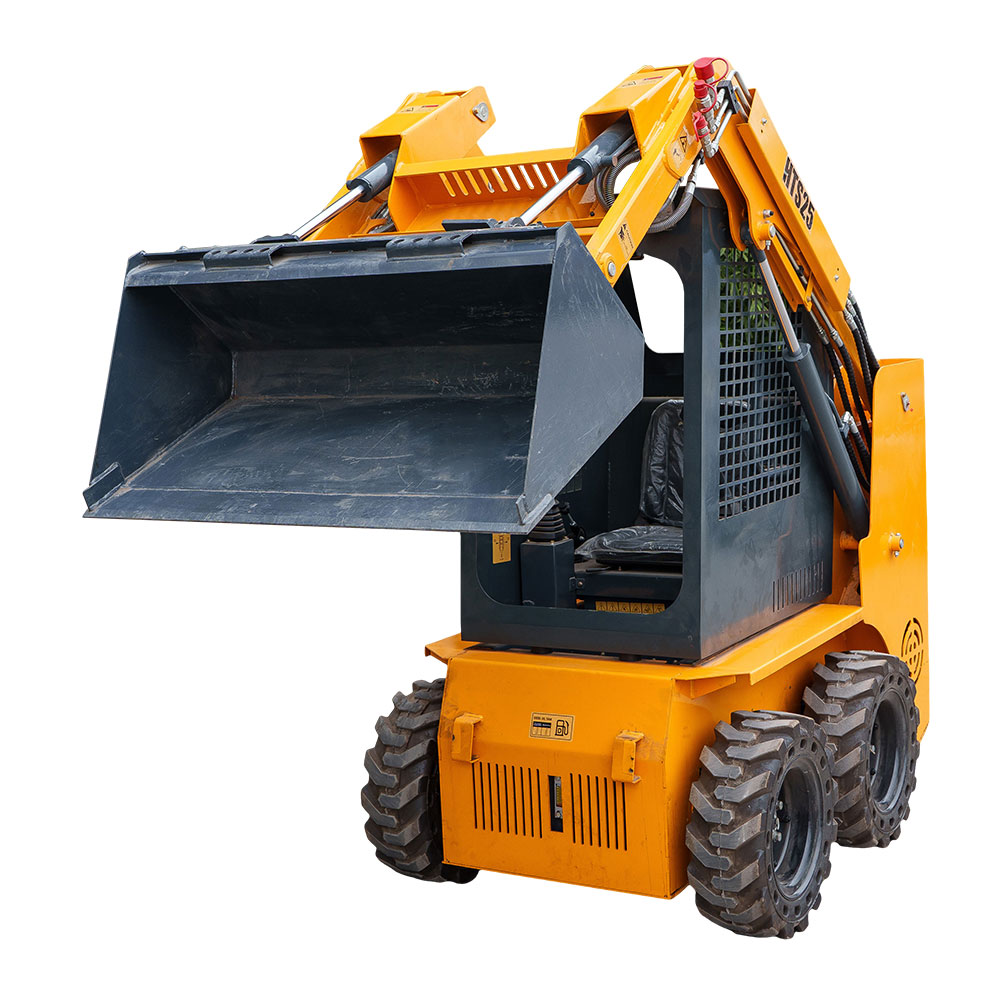

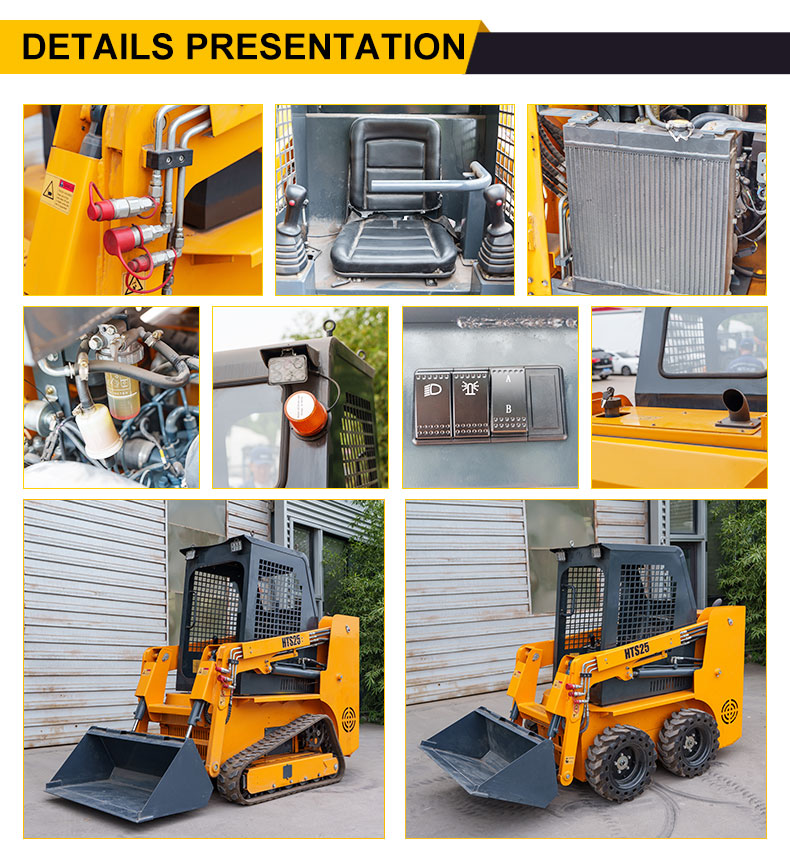

HTS25 is a compact, highly maneuverable skid steer loader available in both wheeled and tracked configurations, built for tight-space jobs in construction, landscaping, agriculture, and indoor demolition. It offers two engine options — the Kubota D1105 (18.2 kW) or Laidong 385 (18.5 kW) — paired with a 23 L fuel tank for long working shifts. With a rated operating load of 300 kg and a 0.20 m³ bucket, it combines compact size with real lifting power. The pilot control plus multi-function electronic control system delivers smooth, precise operation, backed by 36 L/min flow and 160 Bar hydraulic pressure for fast attachment performance. At just 1180 mm wide, the HTS25 slips through narrow doorways and confined sites, while the tracked option provides low ground pressure on soft or uneven terrain and the solid-tire wheeled option handles rougher surfaces with ease.

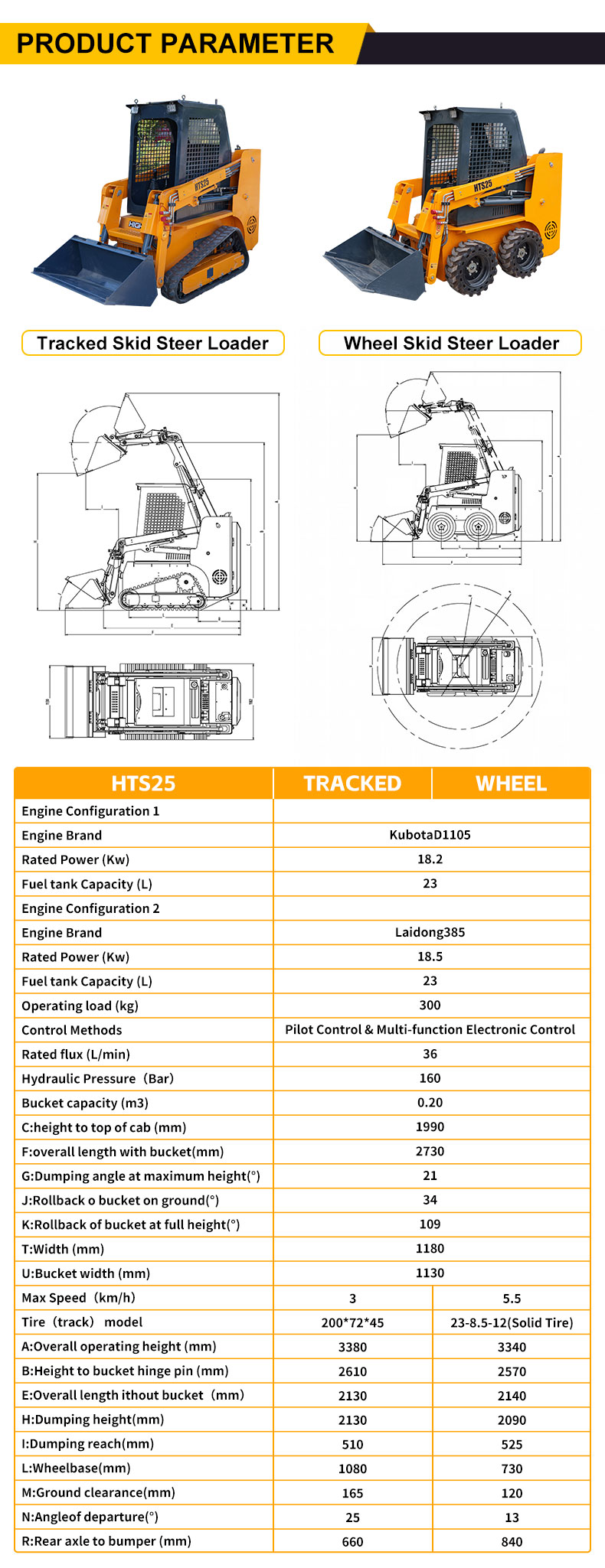

HTS25 Skid Steer Loader Parameter
| Engine Configuration 1 | TRACKED | WHEEL |
| Engine Brand | Kubota D1105 | Kubota D1105 |
| Rated Power (Kw) | 18.2 | 18.2 |
| Fuel tank Capacity (L) | 23 | 23 |
| Engine Configuration 2 | ||
| Engine Brand | Laidong 385 | Laidong 385 |
| Rated Power (Kw) | 18.5 | 18.5 |
| Fuel tank Capacity (L) | 23 | 23 |
| Operating load (kg) | 300 | 300 |
| Control Methods | Pilot Control & Multi-function Electronic Control | Pilot Control & Multi-function Electronic Control |
| Rated flux (L/min) | 36 | 36 |
| Hydraulic Pressure (Bar) | 160 | 160 |
| Bucket capacity (m³) | 0.2 | 0.2 |
| C: Height to top of cab (mm) | 1990 | 1990 |
| F: Overall length with bucket (mm) | 2730 | 2730 |
| G: Dumping angle at maximum height (°) | 21 | 21 |
| J: Rollback of bucket on ground (°) | 34 | 34 |
| K: Rollback of bucket at full height (°) | 109 | 109 |
| T: Width (mm) | 1180 | 1180 |
| U: Bucket width (mm) | 1130 | 1130 |
| Max Speed (km/h) | 3 | 5.5 |
| Tire (track) model | 200*72*45 | 23-8.5-12 (Solid Tire) |
| A: Overall operating height (mm) | 3380 | 3340 |
| B: Height to bucket hinge pin (mm) | 2610 | 2570 |
| E: Overall length without bucket (mm) | 2130 | 2140 |
| H: Dumping height (mm) | 2130 | 2090 |
| I: Dumping reach (mm) | 510 | 525 |
| L: Wheelbase (mm) | 1080 | 730 |
| M: Ground clearance (mm) | 165 | 120 |
| N: Angle of departure (°) | 25 | 13 |
| R: Rear axle to bumper (mm) | 660 | 840 |
