HIGHTOP V1000 tracked skid steer loader has an operating weight of 1564 kg, a 0.2 m³ bucket and 1000 mm bucket width, with ground pressure as low as 35 kPa. Powered by a Kubota D1105-E4 diesel engine

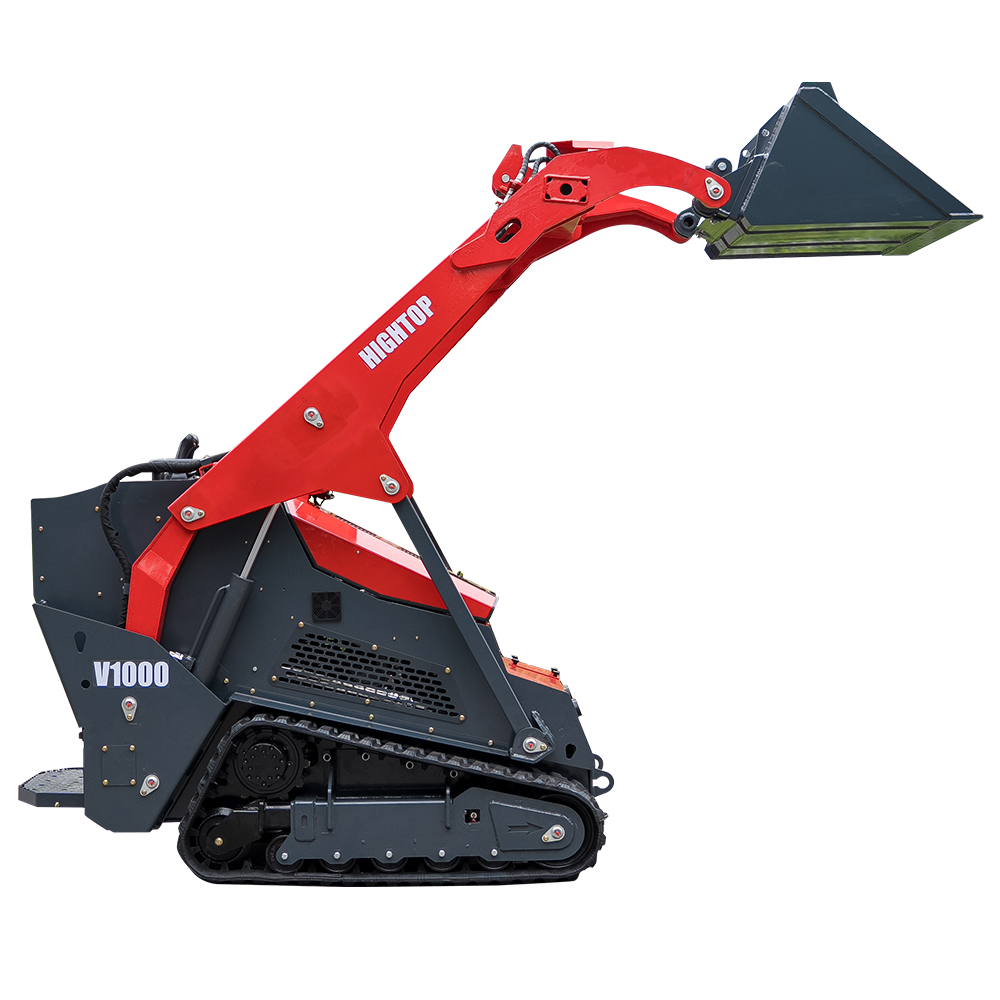

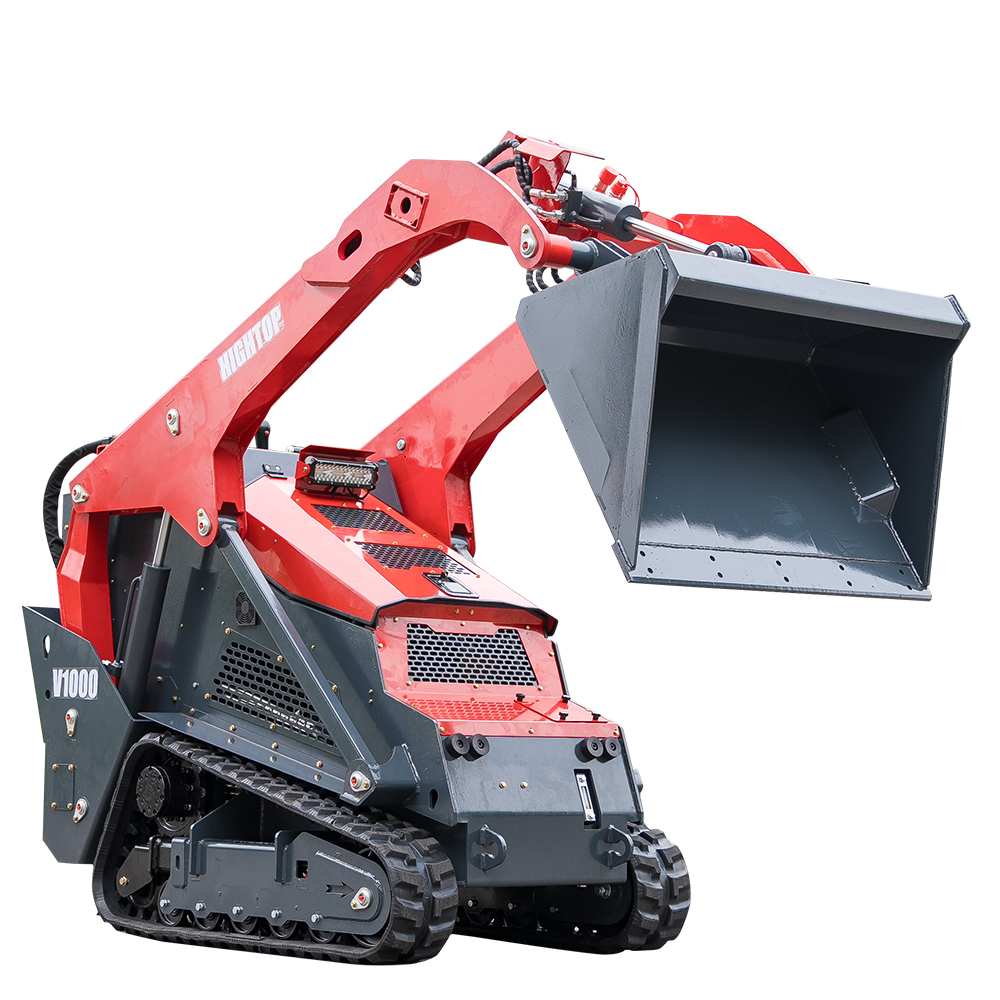

HTV1000 Skid Steer Loader Description
HIGHTOP V1000 tracked skid steer loader has an operating weight of 1564 kg, a 0.2 m³ bucket and 1000 mm bucket width, with ground pressure as low as 35 kPa.
Powered by a Kubota D1105-E4 diesel engine (17.1 kW / 3000 rpm), it delivers 0–4.5 km/h travel speed and 30° gradeability.
Max dump height reaches 1814 mm with 1020 mm dump reach, while the piston pump (4–45 ml/r @ 2200 rpm) ensures strong hydraulic performance.
Compact 1000 mm width allows work in narrow sites. Ideal for landscaping, farm work, site cleanup and small construction projects.
HTV1000 Skid Steer Loader Parameter
| Operating Weight | 1564 kg |
| Bucket Capacity | 0.2 m³ |
| Bucket Width | 1000 mm |
| Track Width | 1000 mm |
| Ground Pressure | 35 kPa |
| Engine Model | Kubota D1105-E4 |
| Engine Power | 17.1 KW / 3000 rpm |
| Gradeability | 30° |
| Travel Speed | 0–4.5 km/h |
| Rear Swing Radius | 1276 mm |
| Max Height from Bucket Horizontal to Ground | 2400 mm |
| Dump Height (Tilted Bucket, Tip to Ground) | 1814 mm |
| Dump Reach | 1020 mm |
| Minimum Ground Clearance | 185 mm |
| Max Overall Length (Including Bucket & Foot pedal) | 3000 mm |
| Overall Width (Including Tracks) | 1000 mm |
| Overall Height | 1495 mm |
| Hydraulic Oil Tank | 31.5 L |
| Diesel Fuel Tank | 28 L |
| Piston Pump Displacement | 4–45 ml/r |
| Piston Pump Rated Speed | 2200 r/min |
