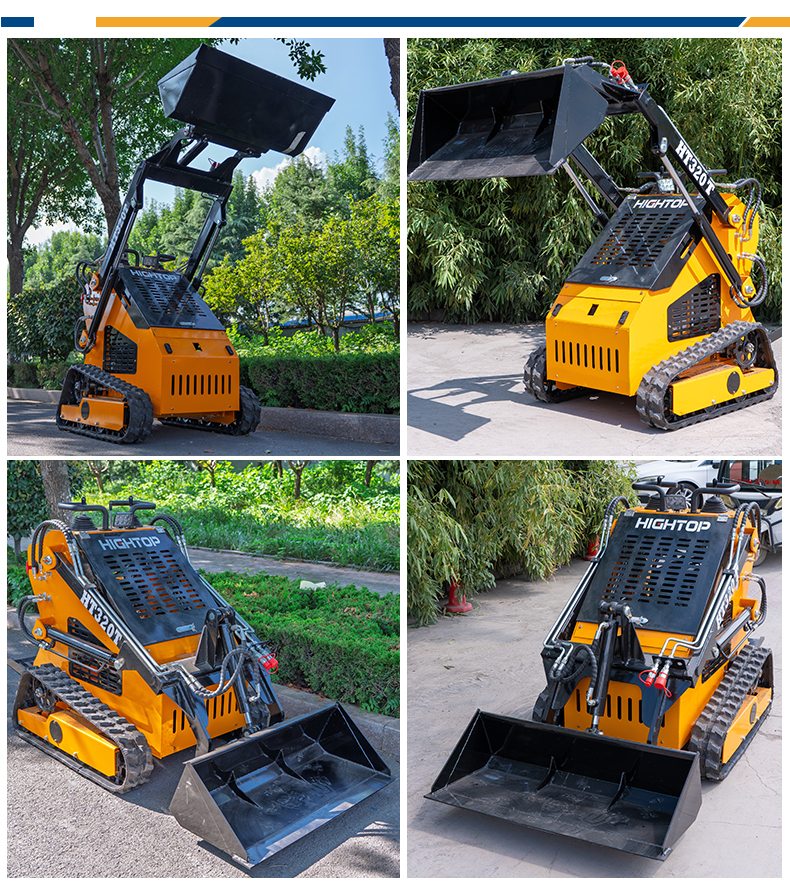

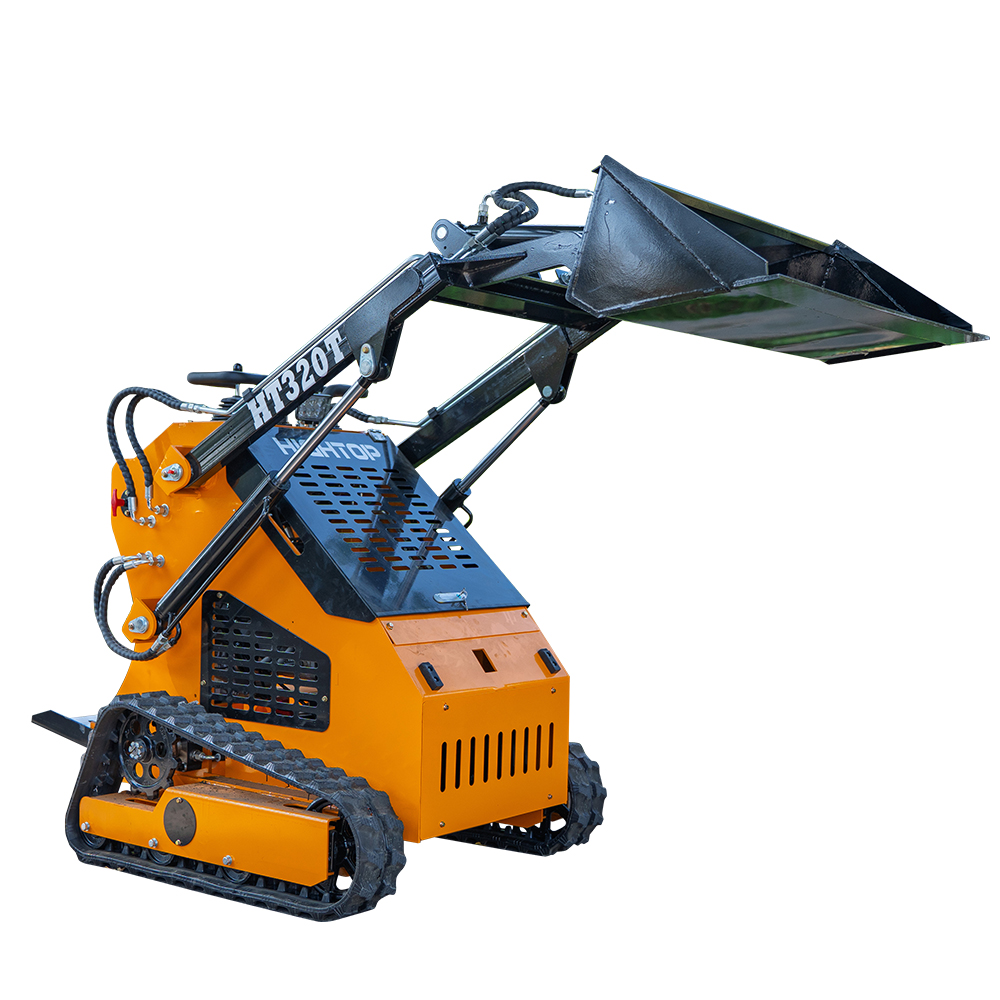

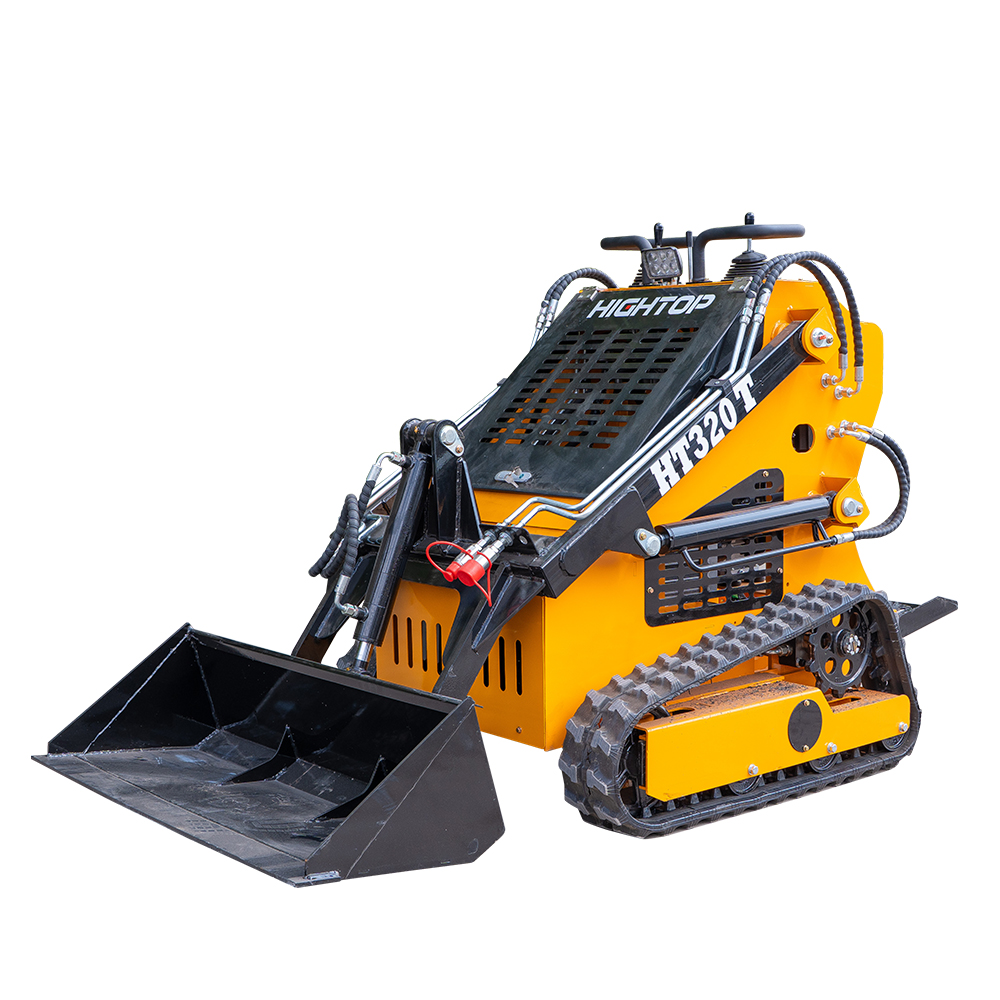

HT320T Skid Steer Loader Description
Hightop HT320T tracked skid steer loader weighs 630kg, with 180kg operating load and 0.13m³ bucket capacity, max lifting force up to 200kg. It supports 3 optional engine types: RATO420,
Briggs&Stratton 13.5HP and KOOP192. Max working height reaches 2120mm, travel speed 0-3km/h. Compact body with 990mm width, flexible for narrow-site work.
We offer OEM & ODM service, machine color can be customized by RAL color code. Ideal for landscaping, farm renovation and small construction jobs.

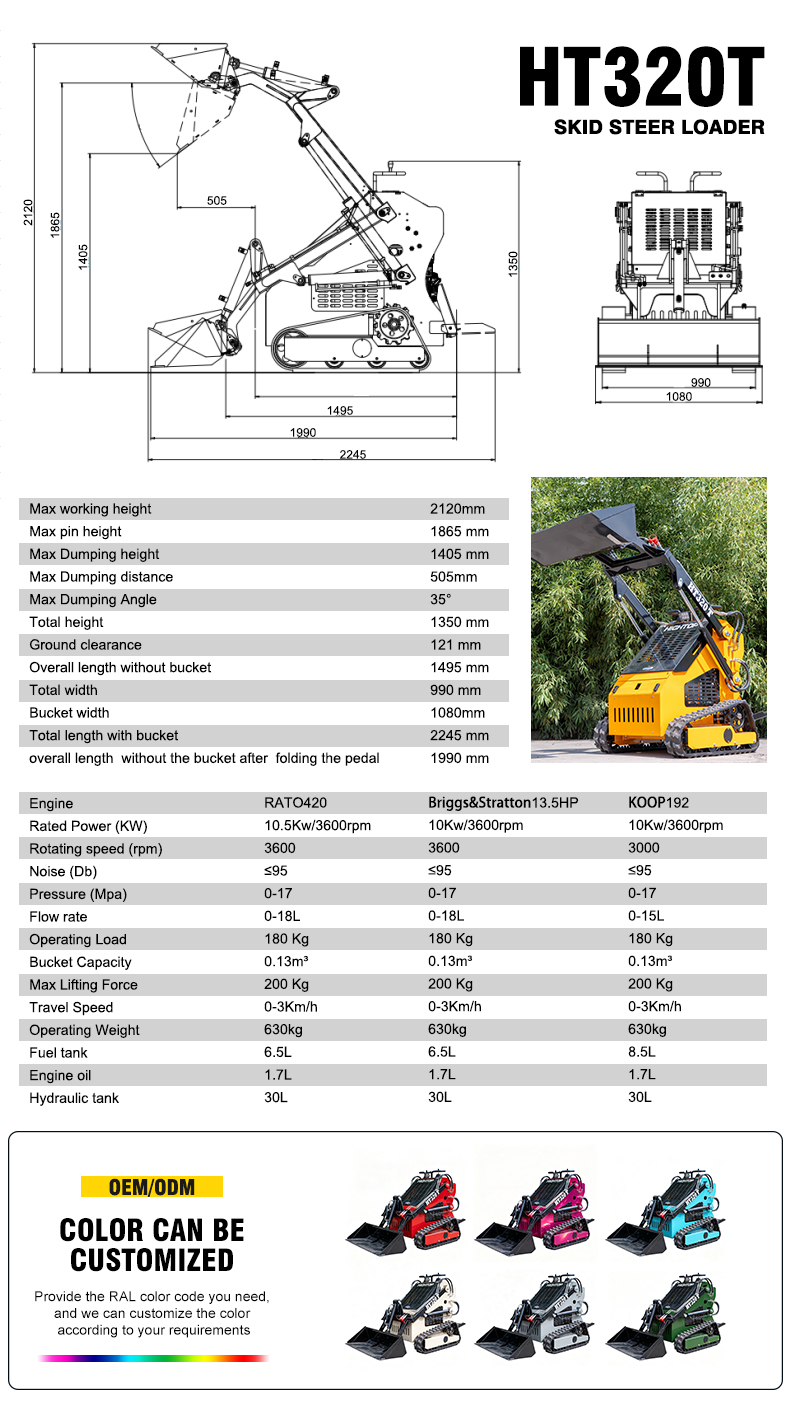

HT320T Skid Steer Loader Parameter
| Max working height | 2120mm |
| Max pin height | 1865mm |
| Max Dumping height | 1405mm |
| Max Dumping distance | 505mm |
| Max Dumping Angle | 35° |
| Total height | 1350mm |
| Ground clearance | 121mm |
| Overall length without bucket | 1495mm |
| Total width | 990mm |
| Bucket width | 1080mm |
| Total length with bucket | 2245mm |
| overall length without the bucket after folding the pedal | 1990mm |
| Operating Load | 180 Kg |
| Bucket Capacity | 0.13m³ |
| Max Lifting Force | 200 Kg |
| Travel Speed | 0-3Km/h |
| Operating Weight | 630kg |
| Fuel tank | 6.5L |
| Engine oil | 1.7L |
| Hydraulic tank | 30L |
| Noise (Db) | ≤95 |
| Pressure (Mpa) | 0-17 |

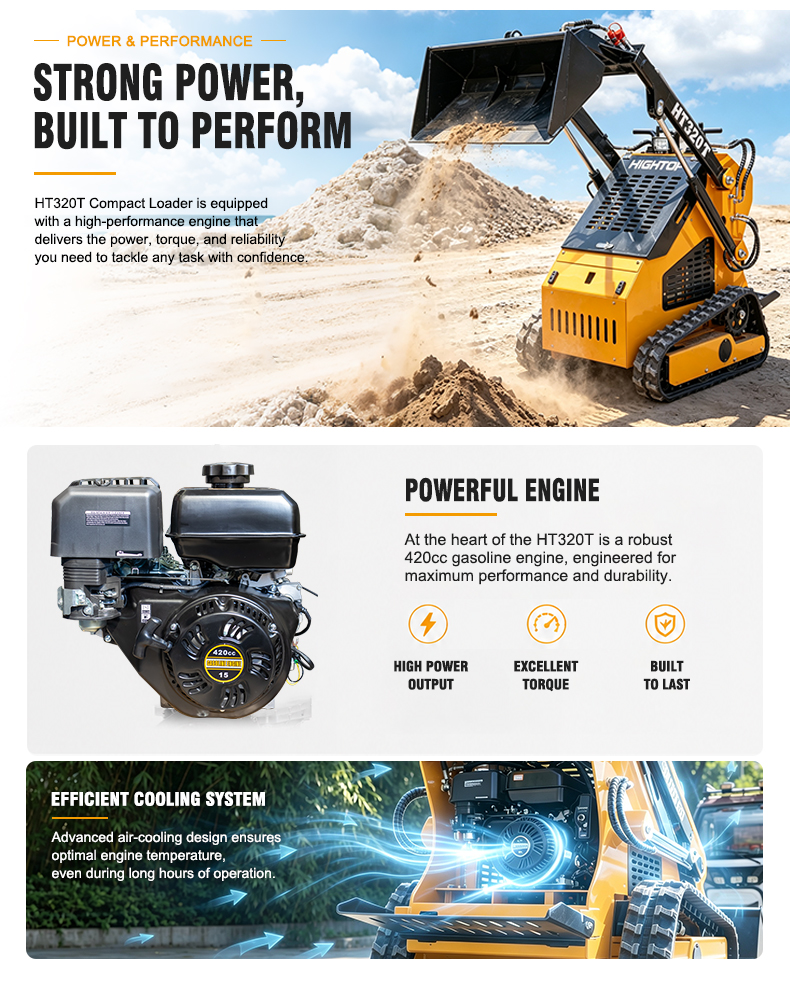

| Engine | RATO420 | Briggs&Stratton13.5HP | KOOP192 |
| Rated Power (KW) | 10.5Kw/3600rpm | 10Kw/3600rpm | 10Kw/3600rpm |
| Rotating speed (rpm) | 3600 | 3600 | 3000 |
| Flow rate | 0-18L | 0-18L |
0-15L |
