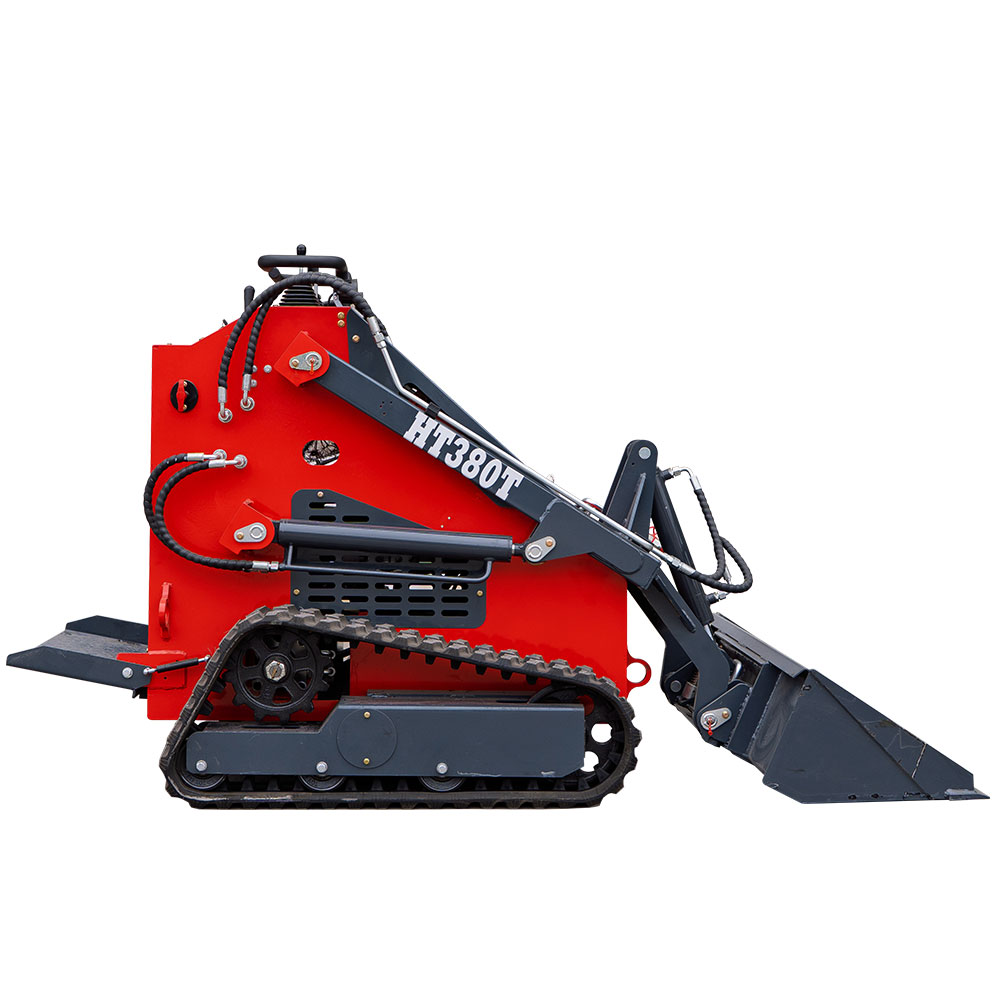

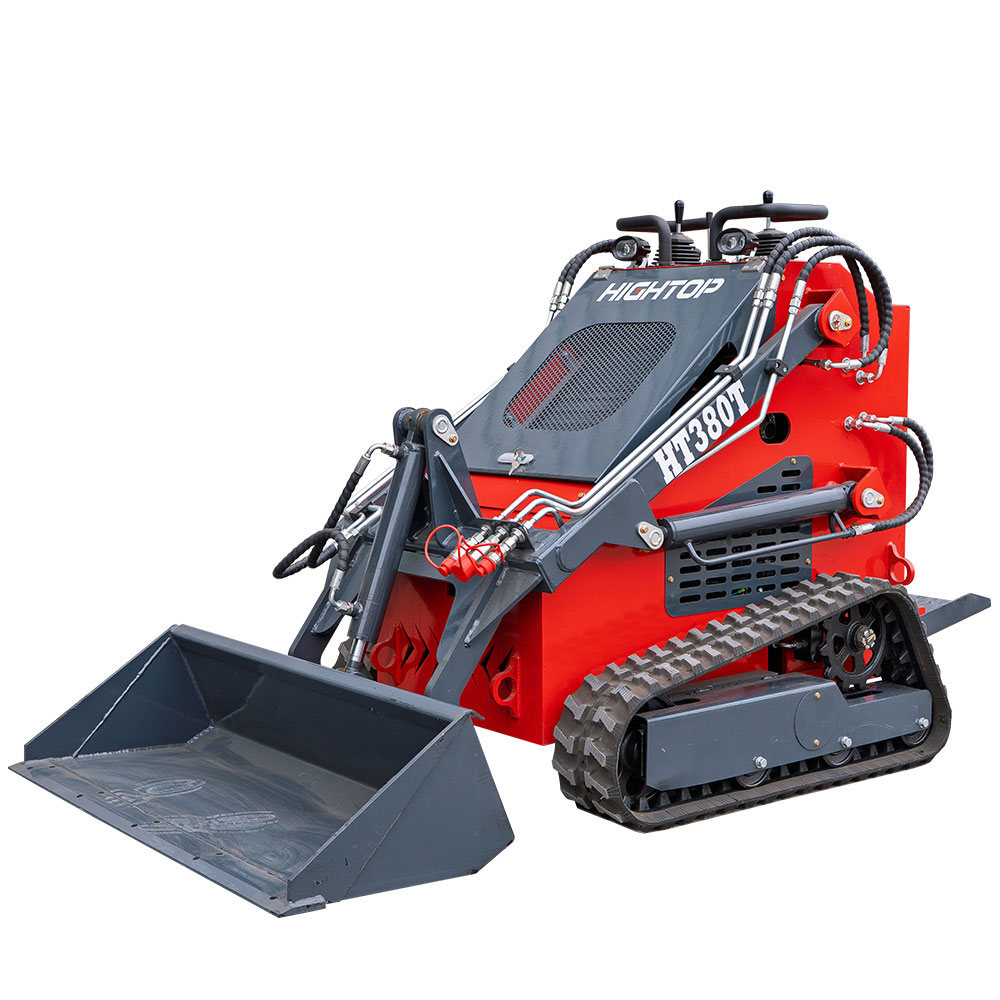

HTS380T Skid Steer Loader Description
Hightop HTS380T tracked skid steer loader has an operating weight of 810kg, operating load 200kg, bucket capacity 0.15m³ and max lifting force 250kg.
Four engine options available: RATO R740-1, Briggs&Stratton 3864, KOOP 292 and Honda GX690. Max working height reaches 2120mm, travel speed 0-4.5km/h.
Compact body of 1021mm width for tight-space operation. Suitable for landscaping, farm work, site cleanup and small construction projects.

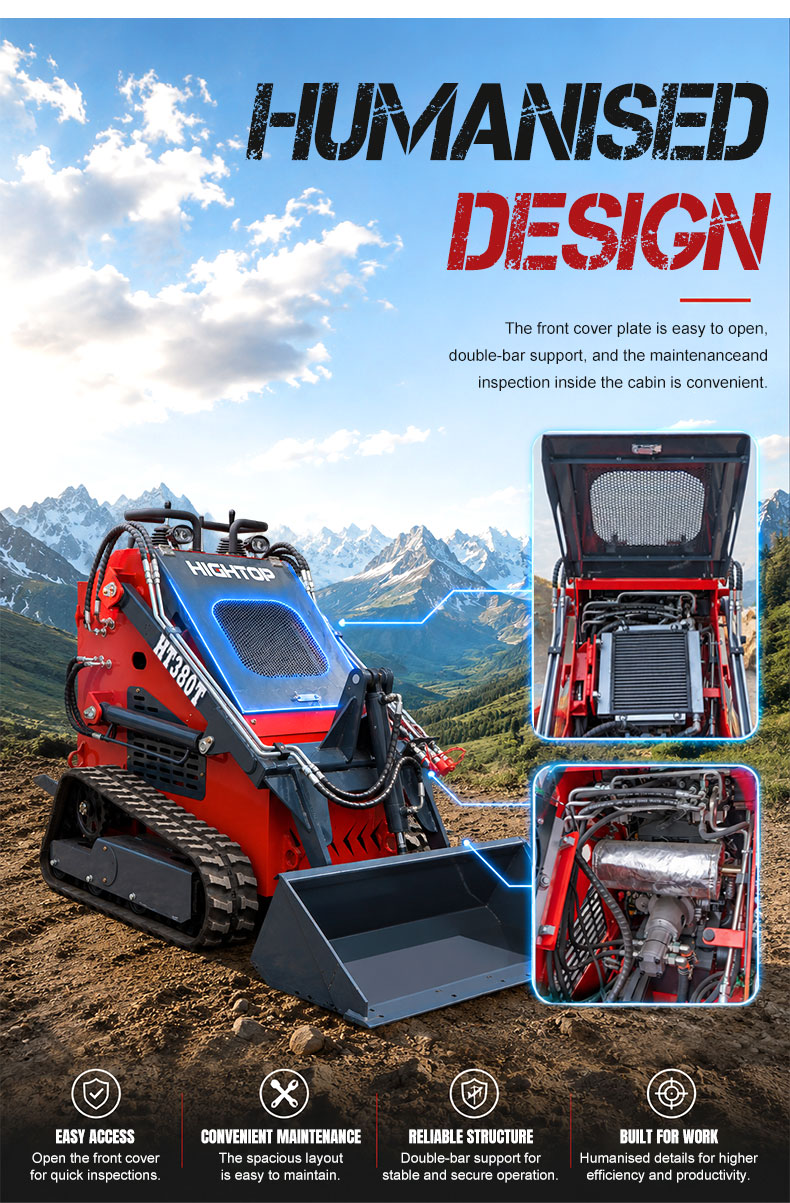

Stable hydraulic system, easy maintenance.

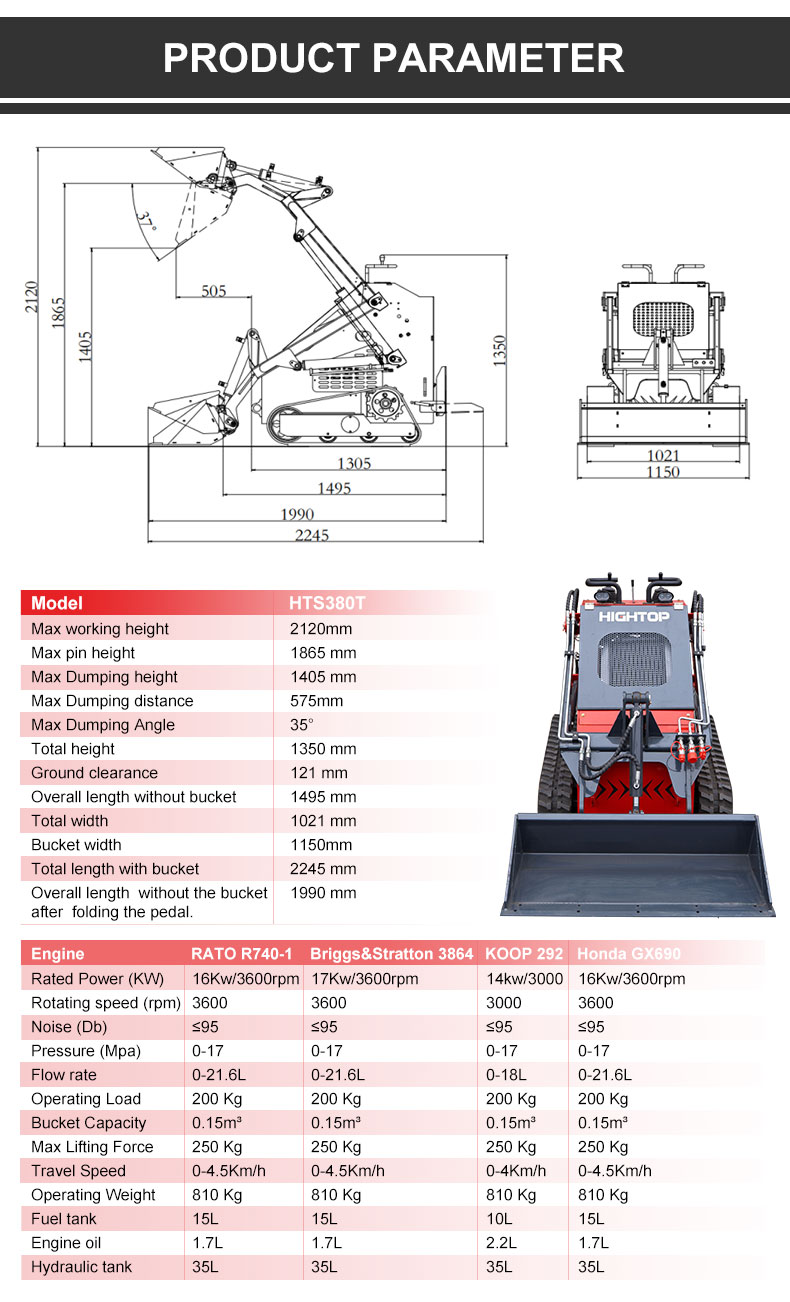

HTS380T Skid Steer Loader Parameter
| Model | HTS380T |
| Max working height | 2120mm |
| Max pin height | 1865mm |
| Max Dumping height | 1405mm |
| Max Dumping distance | 575mm |
| Max Dumping Angle | 35° |
| Total height | 1350mm |
| Ground clearance | 121mm |
| Overall length without bucket | 1495mm |
| Total width | 1021mm |
| Bucket width | 1150mm |
| Total length with bucket | 2245mm |
| Overall length without the bucket after folding the pedal | 1990mm |
| Operating Load | 200 Kg |
| Bucket Capacity | 0.15m³ |
| Max Lifting Force | 250 Kg |
| Travel Speed | 0-4.5Km/h |
| Operating Weight | 810kg |
| Noise (Db) | ≤95 |
| Pressure (Mpa) | 0-17 |
| Fuel tank | 15L |
| Engine oil | 1.7L |
| Engine | RATO R740-1 | Briggs&Stratton 3864 | KOOP 292 | Honda GX690 |
| Rated Power (KW) | 16Kw/3600rpm | 17Kw/3600rpm | 14kw/3000rpm | 16Kw/3600rpm |
| Rotating speed (rpm) | 3600 | 3600 | 3000 | 3600 |
| Flow rate | 0-21.6L | 0-21.6L | 0-18L | 0-21.6L |
