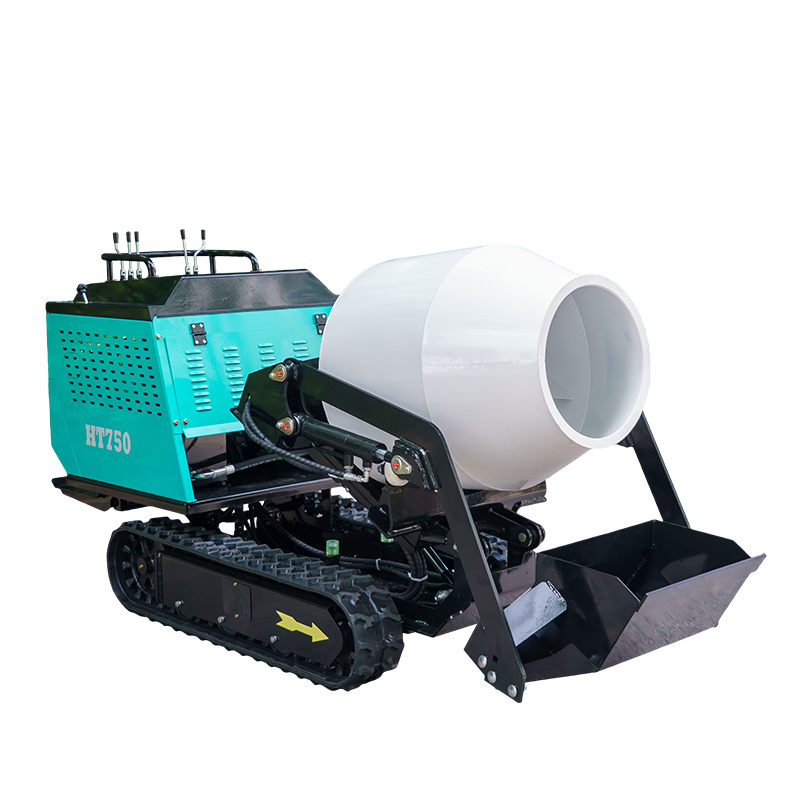

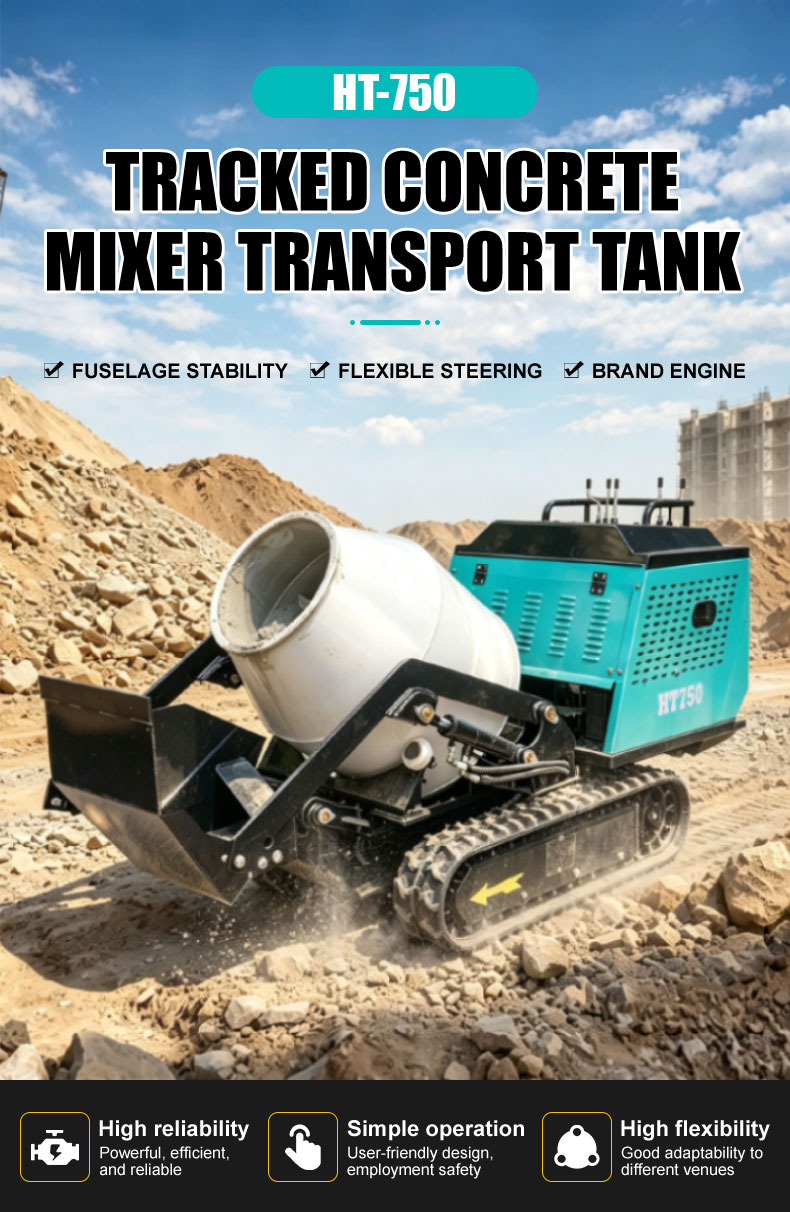

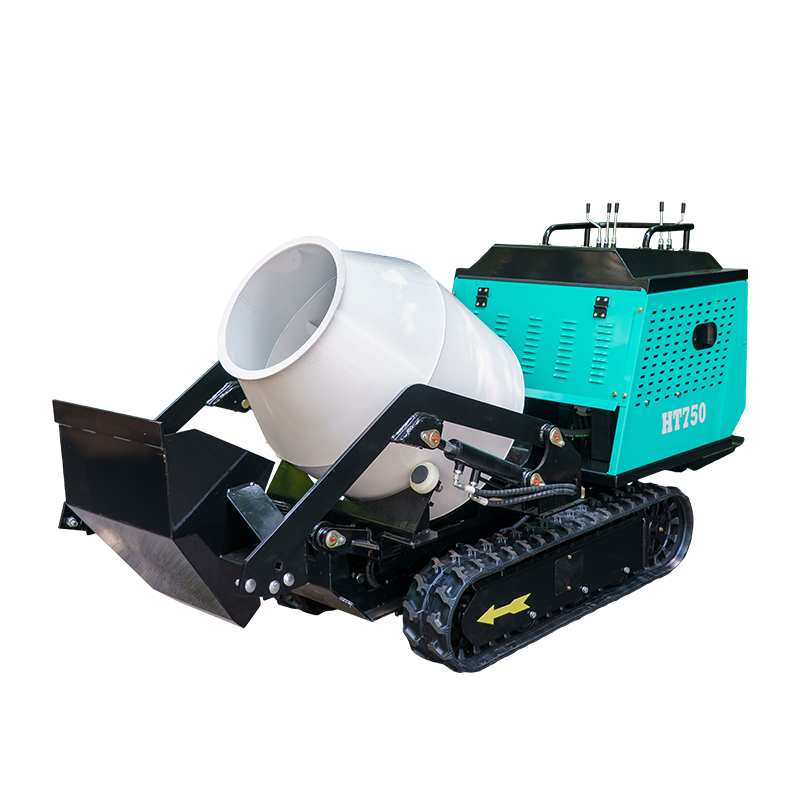

HT-750 Crawler Concrete Mixer Transport Tank Automatic hydraulic 90° one‑button tipping unloading, fast discharge and labor saving. Integrated mixing & transport function, heavy‑duty welded frame for
HT-750 Crawler Concrete Mixer Transport Tank Description

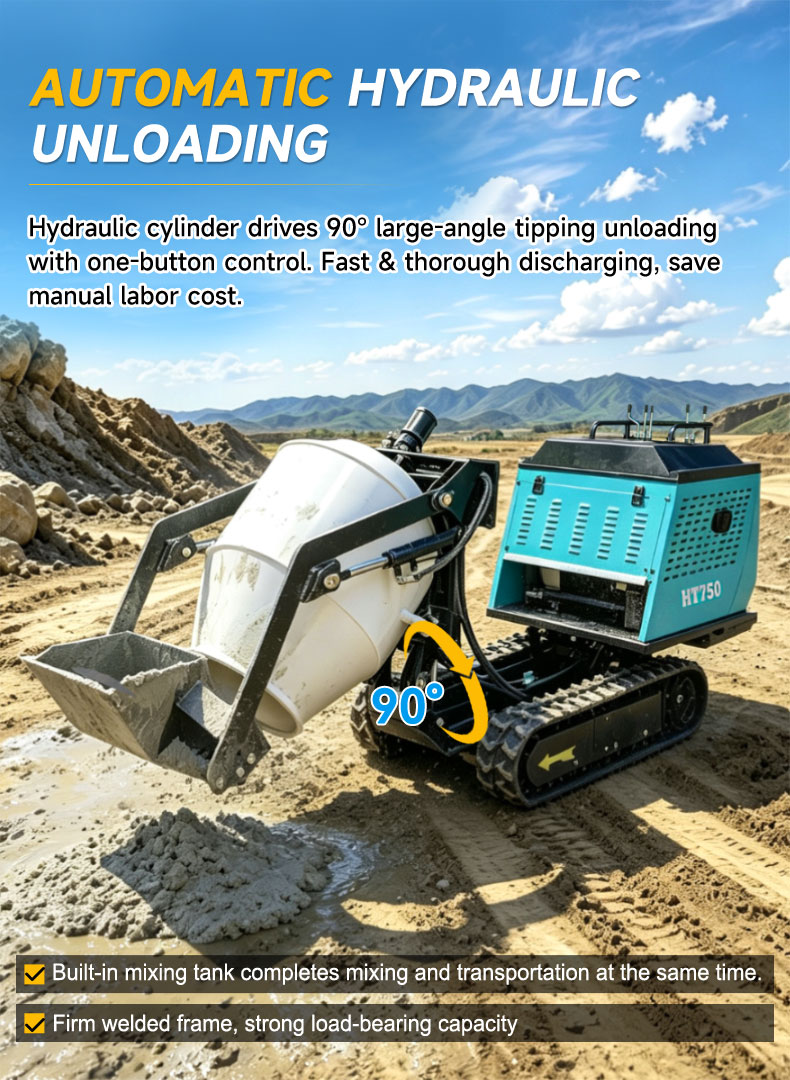

This HT750 crawler carrier features automatic hydraulic unloading. Driven by hydraulic cylinder, it realizes 90° large‑angle tipping unloading via one‑button control, delivering fast and complete discharge to cut manual labor cost.
HT-750 Crawler Concrete Mixer Transport Tank Parameter

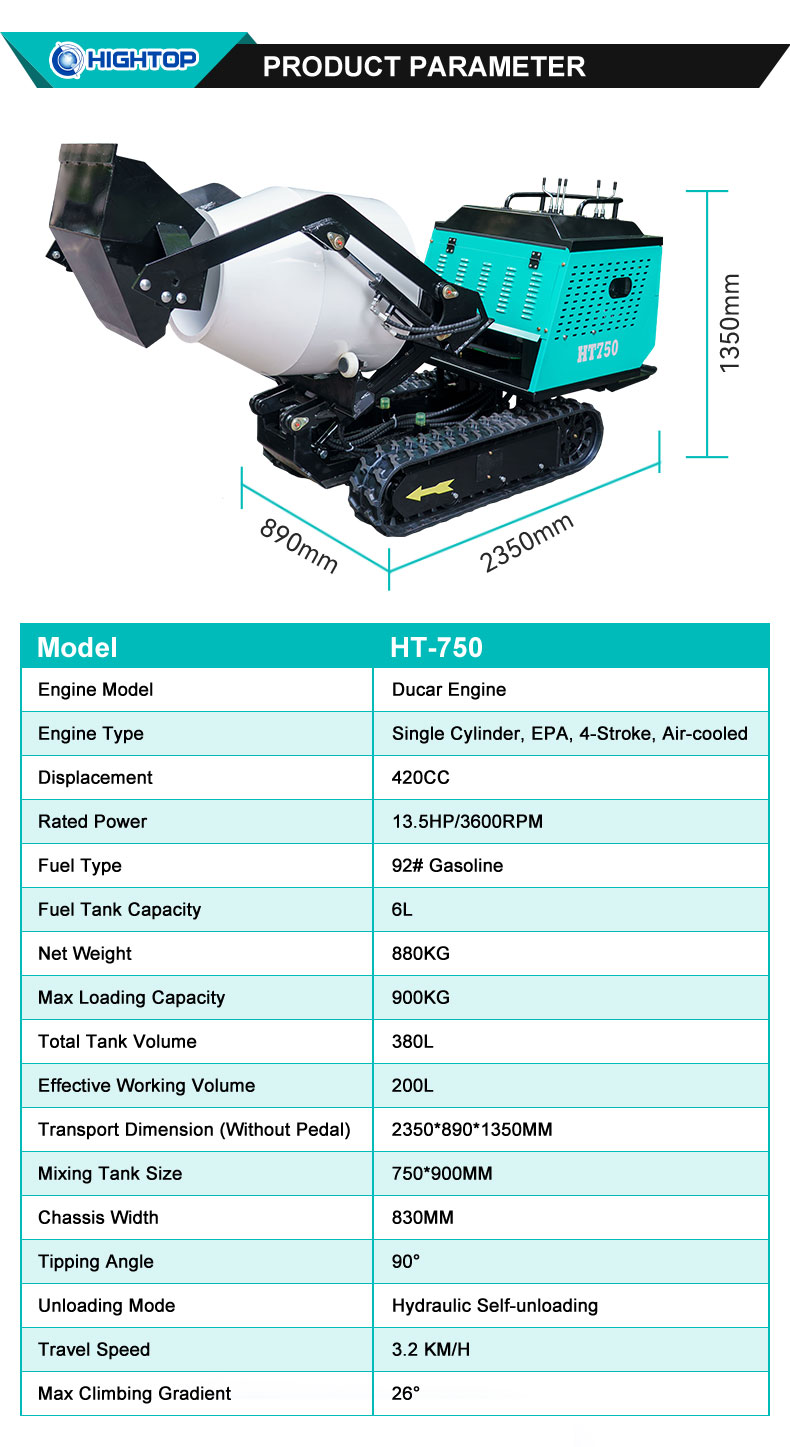

| Item | Parameter |
|---|---|
| Model | HT‑750 |
| Engine Model | Ducar Engine |

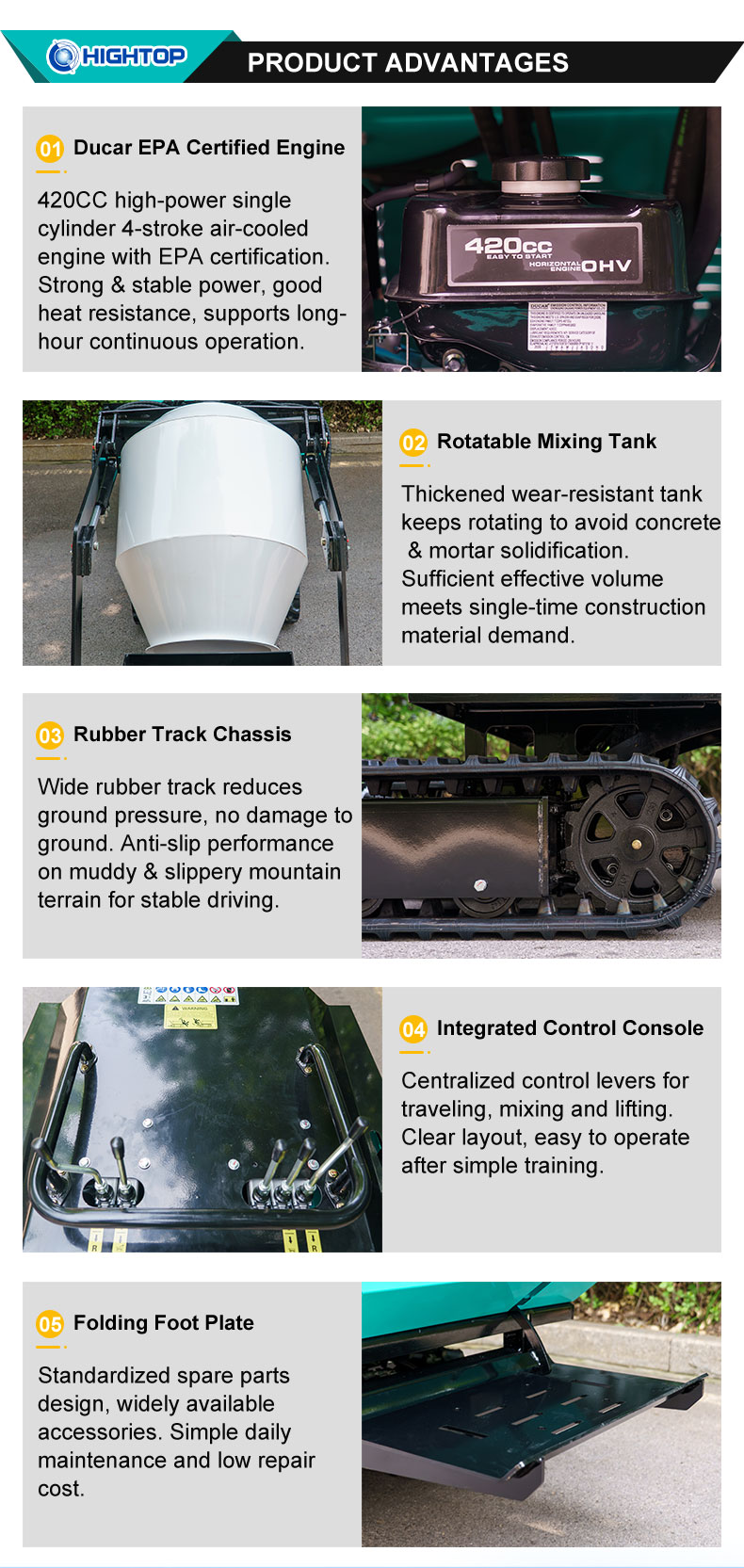

| Engine Type | Single Cylinder, EPA, 4‑Stroke, Air‑cooled |
| Displacement | 420CC |
| Rated Power | 13.5HP/3600RPM |
| Fuel Type | 92# Gasoline |
| Fuel Tank Capacity | 6L |
| Net Weight | 880KG |
| Max Loading Capacity | 900KG |
| Total Tank Volume | 380L |
| Effective Working Volume | 200L |
| Transport Dimension (Without Pedal) | 23508901350MM |
| Mixing Tank Size | 750*900MM |

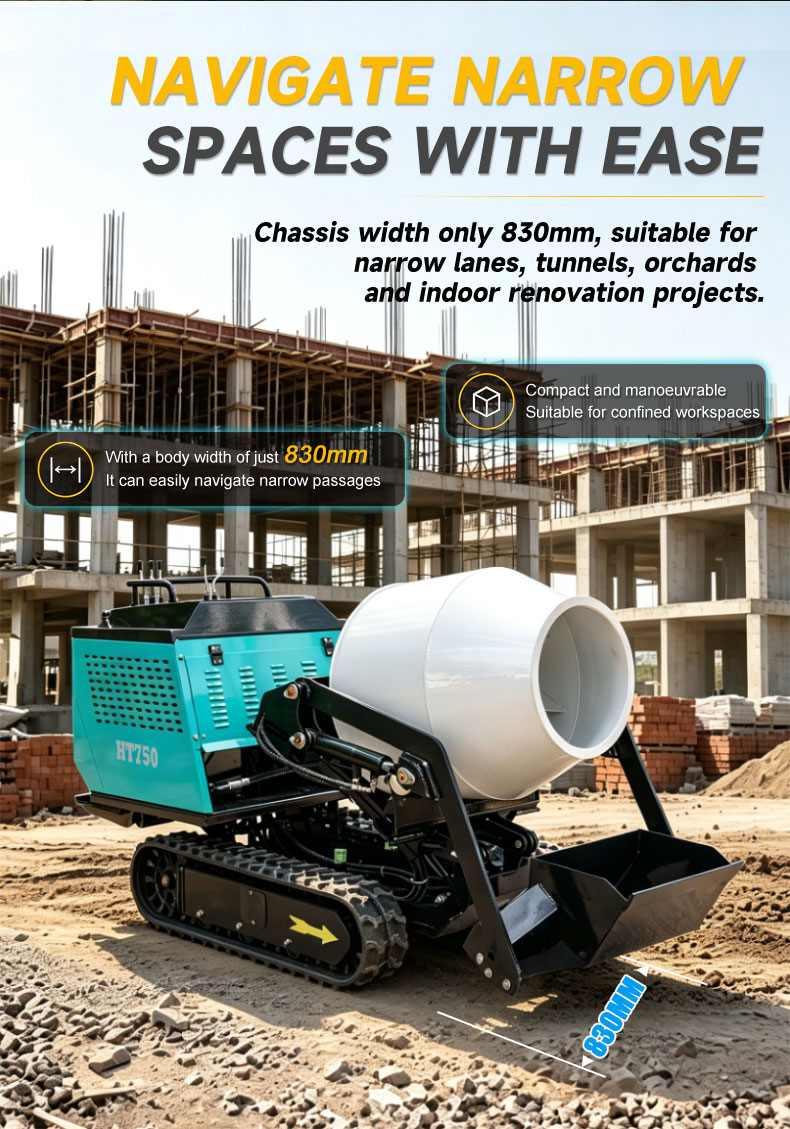

| Chassis Width | 830MM |
| Tipping Angle | 90° |
| Unloading Mode | Hydraulic Self‑unloading |
| Travel Speed | 3.2 KM/H |

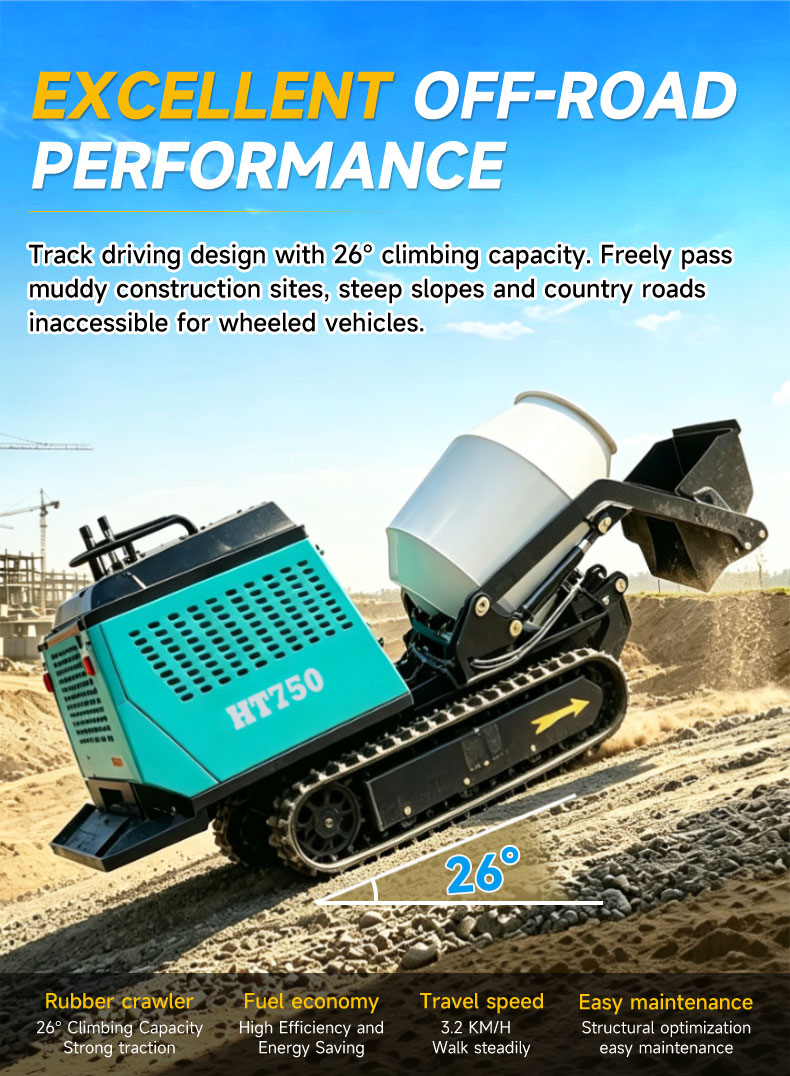

| Max Climbing Gradient | 26° |
